Cam Unit Assembly 7-1/2, 7-5/8, 8-1/2 and 8-5/8 Inch

INSTALL OR CONNECT
1. Cam plate to the side cam gear.
2. Wave washer.
3. Clutch plates (7 1/2, 7 5/8 = 8 plates, 8 1/2 = 10 plates).





- Alternate the plates as shown.

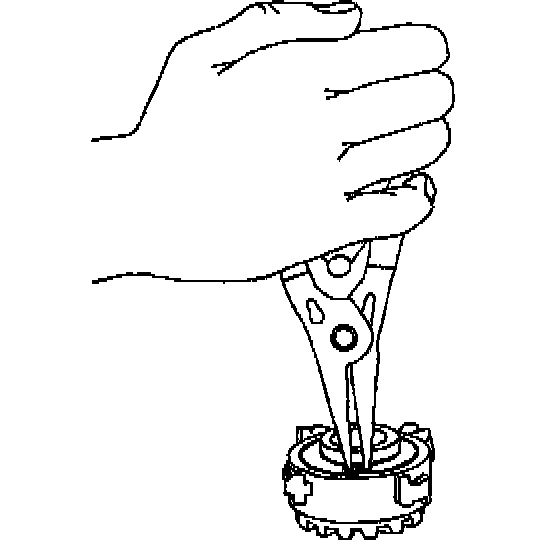

4. Retaining ring.
5. Guide clips to the clutch plates.
- Use grease in the clips to hold them in place on the plates.
