Cutlass Supreme V6-204 3.4L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

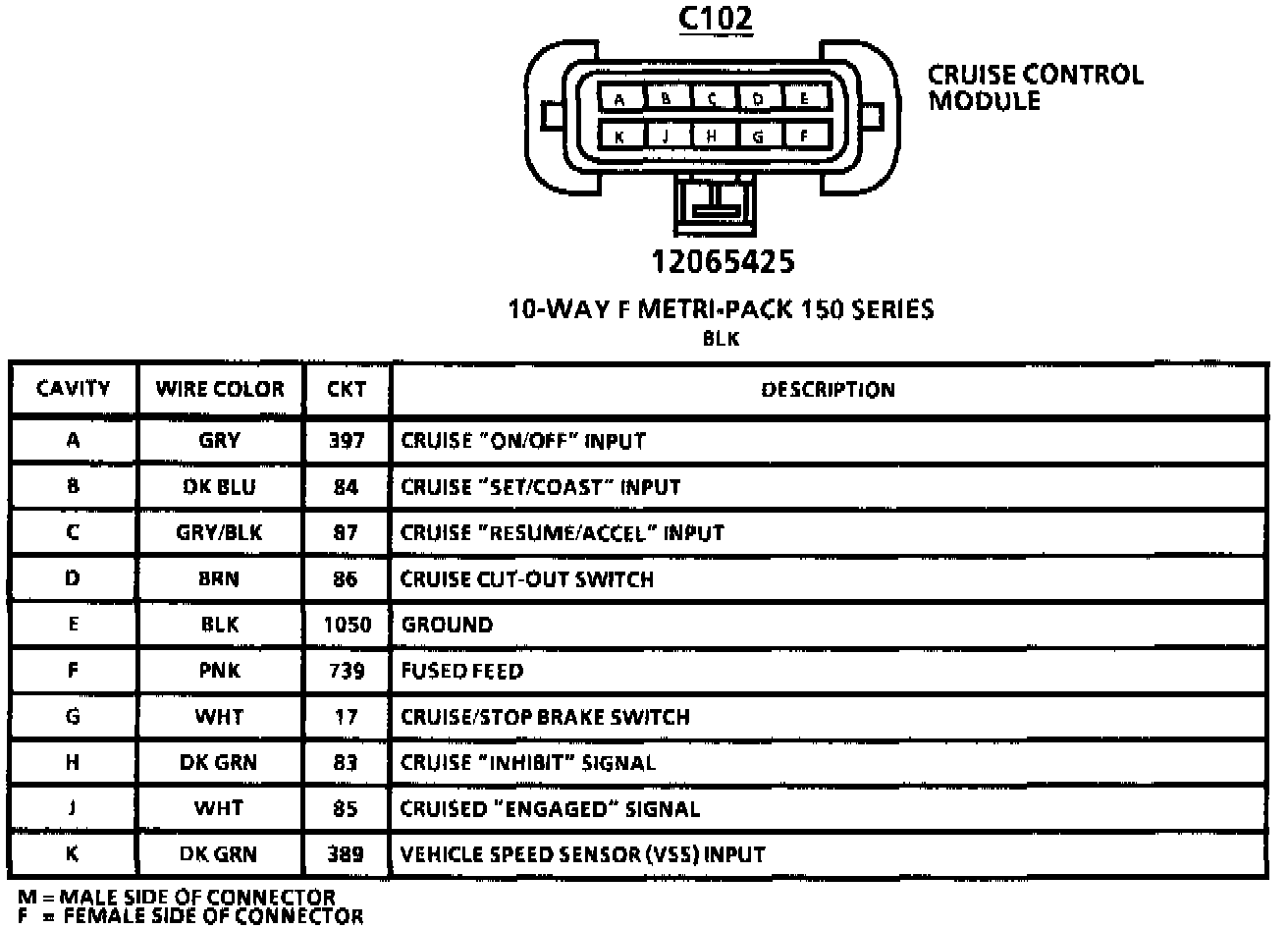

Cruise Control Module
Cruise Control Module
Harness Connector Face:
