Keyless Entry: Service and Repair

^ Do the following when replacing Remote Accessory Control (RAC) Module or either transmitter.

1. Turn Ignition Switch OFF.

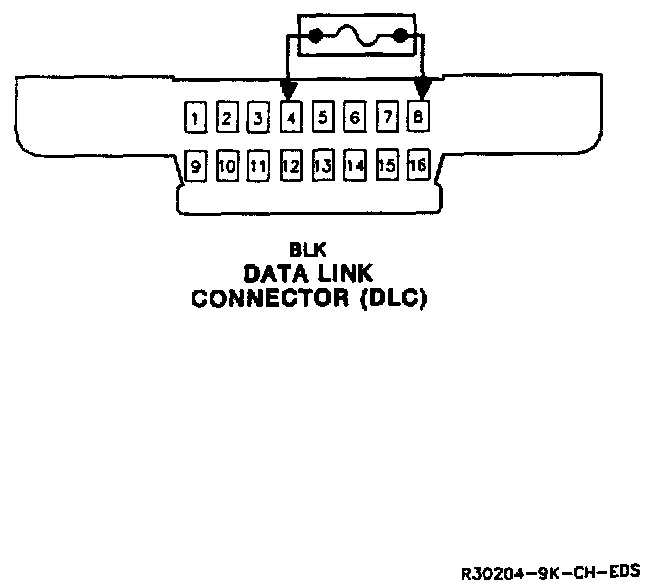

2. Jumper Data Link Connector (DLC) terminal B (BLK/WHT) to terminal 4 (BLK). All door locks lock and unlock.
3. Press any button on transmitter. All door locks lock and unlock.
4. Repeat step 3 if using the other transmitter. If only one transmitter is being used, go to step 5.
5. Disconnect jumper from DLC.
