Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1994
>>
Ninety-Eight V6-3800 3.8L
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Fuse
>>
Underhood Fuse Block
>>
RH
RH

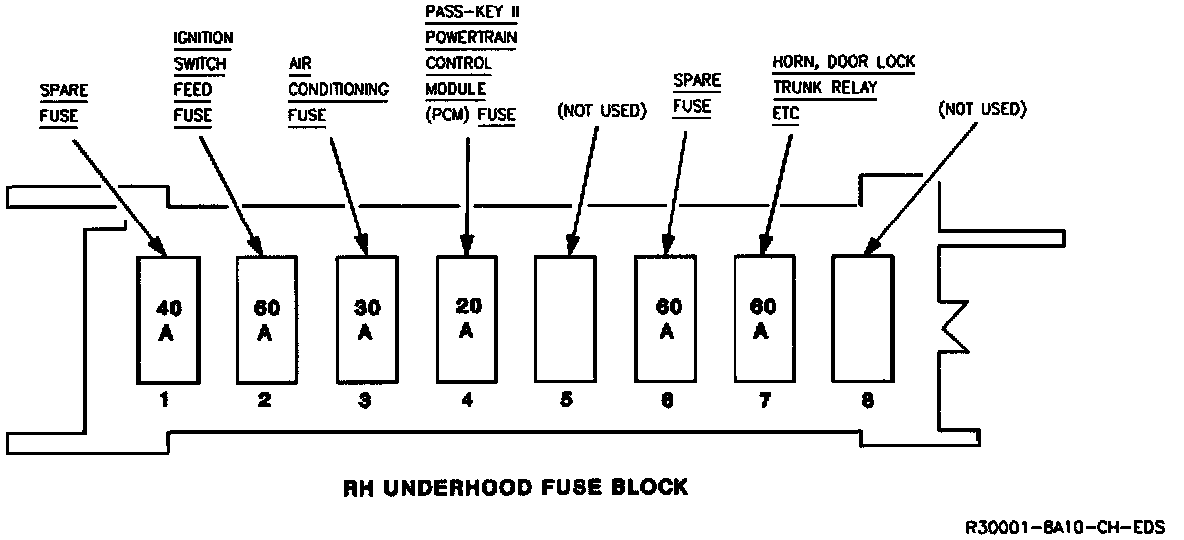

RH Underhood Fuse Block:
