Drive Belt: Service and Repair

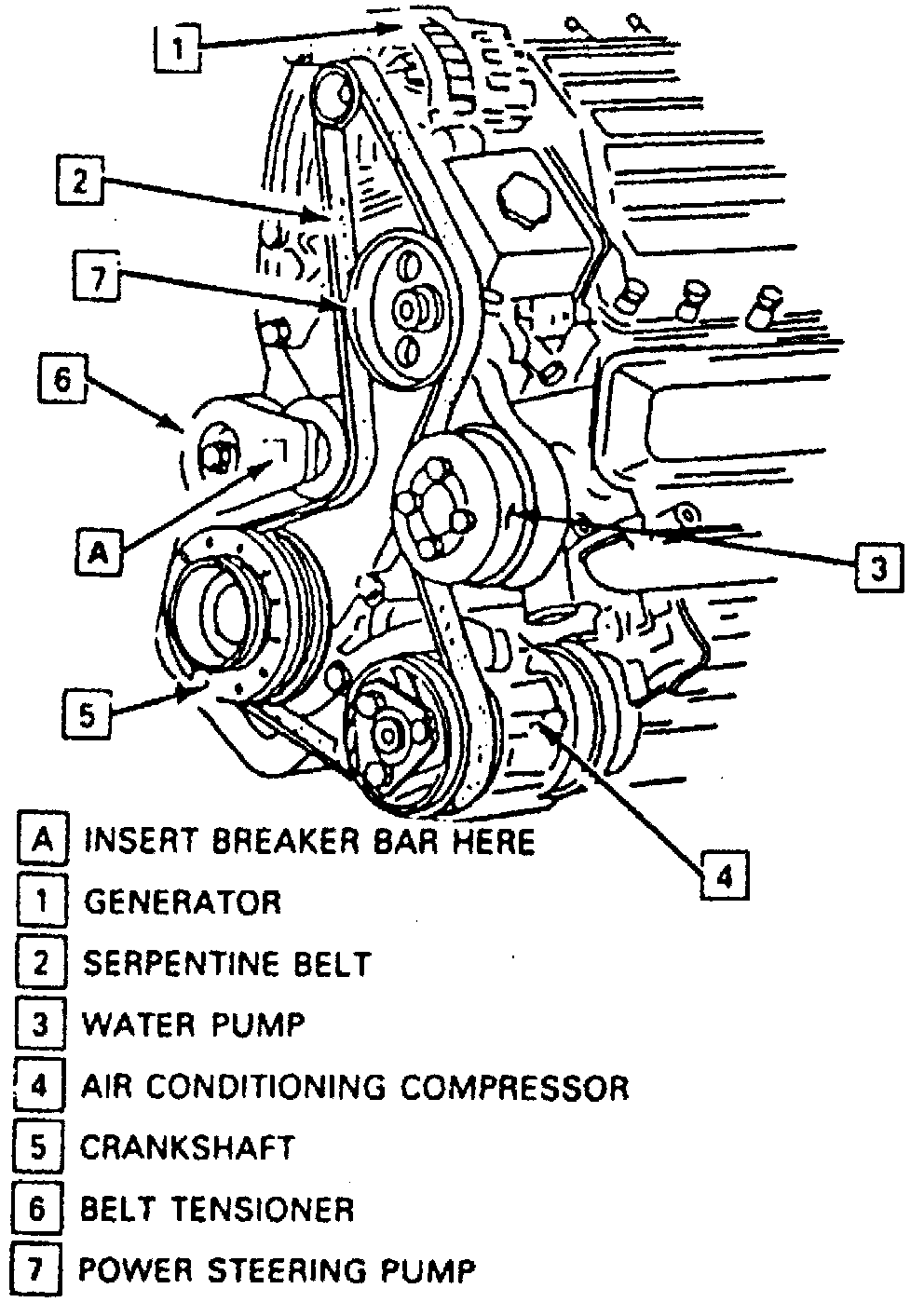

Fig. 6 Serpentine Drive Belt Routing:

1. Remove belt guard, then rotate tensioner using a 3/8 inch breaker bar.
2. Remove serpentine belt.
3. Reverse procedure to install, refer to Fig. 6 for proper routing.
