Drive Belt: Service and Repair

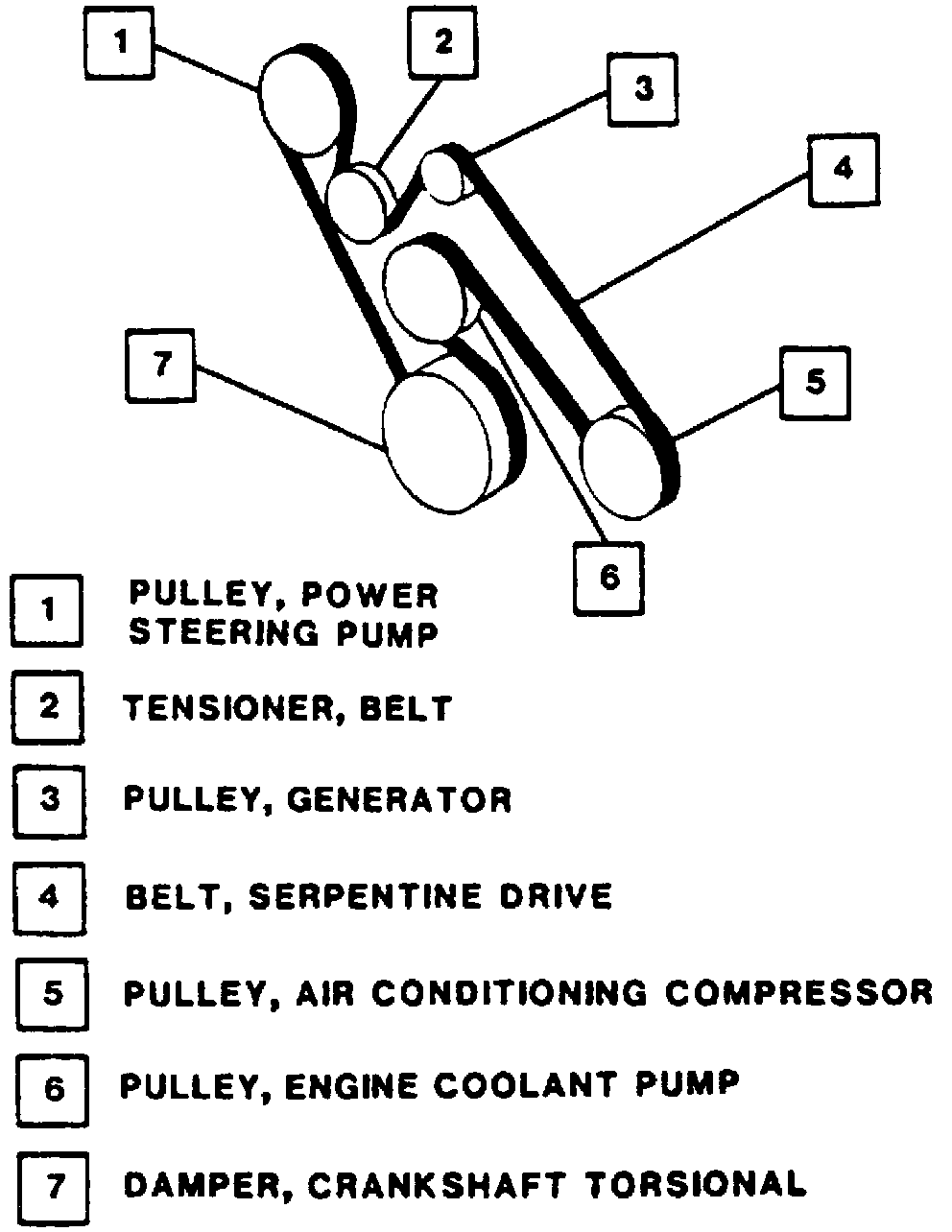

Fig. 20 Serpentine Belt Routing:

1. Disconnect battery ground cable.
2. Remove belt tensioner pulley, then belt.
3. Reverse procedure to install, refer to Fig. 20 for belt routing.
