Home >> Oldsmobile >> 1995 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Body and Frame >> Seats >> Diagrams >> Electrical Diagrams >> Power Seats

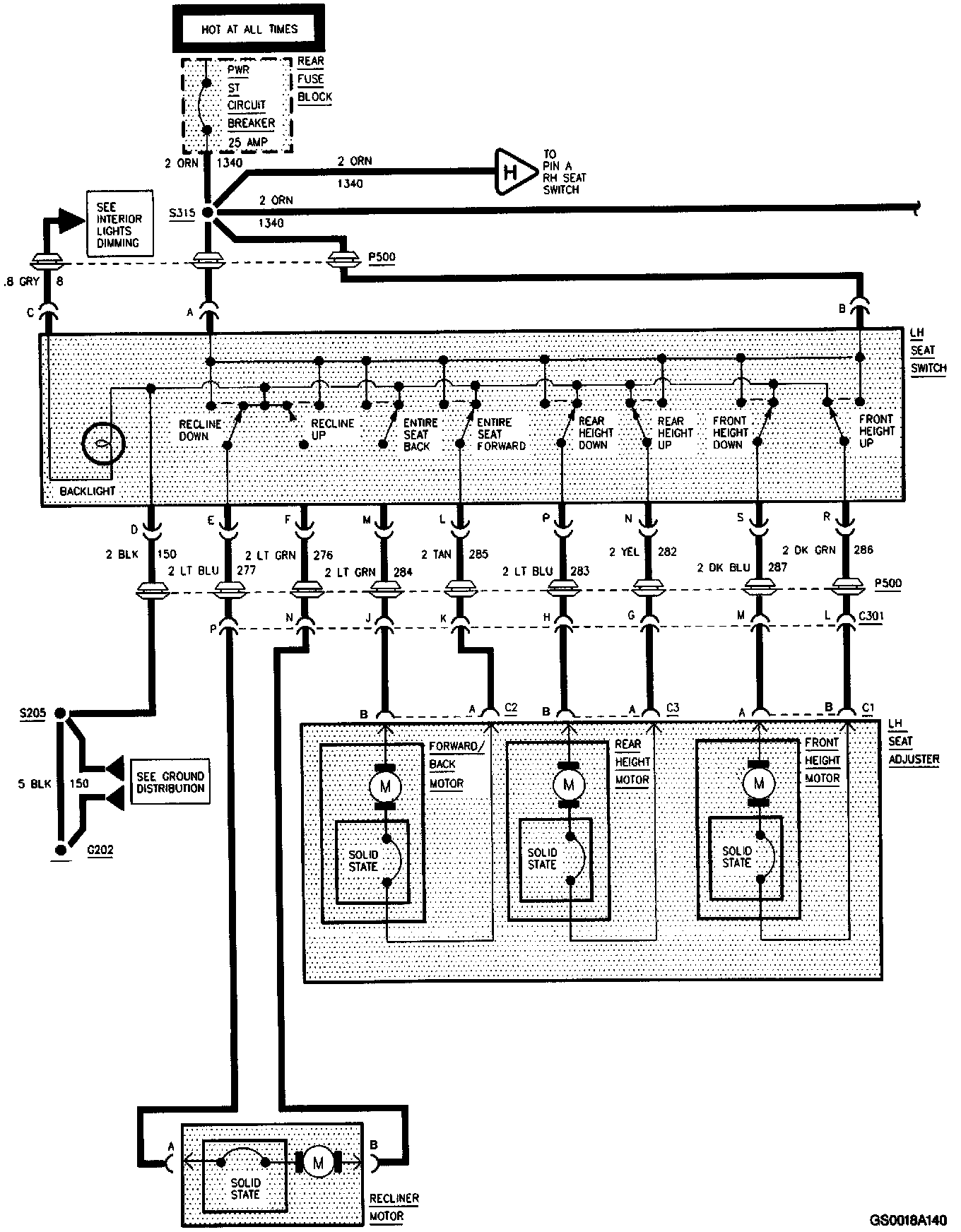

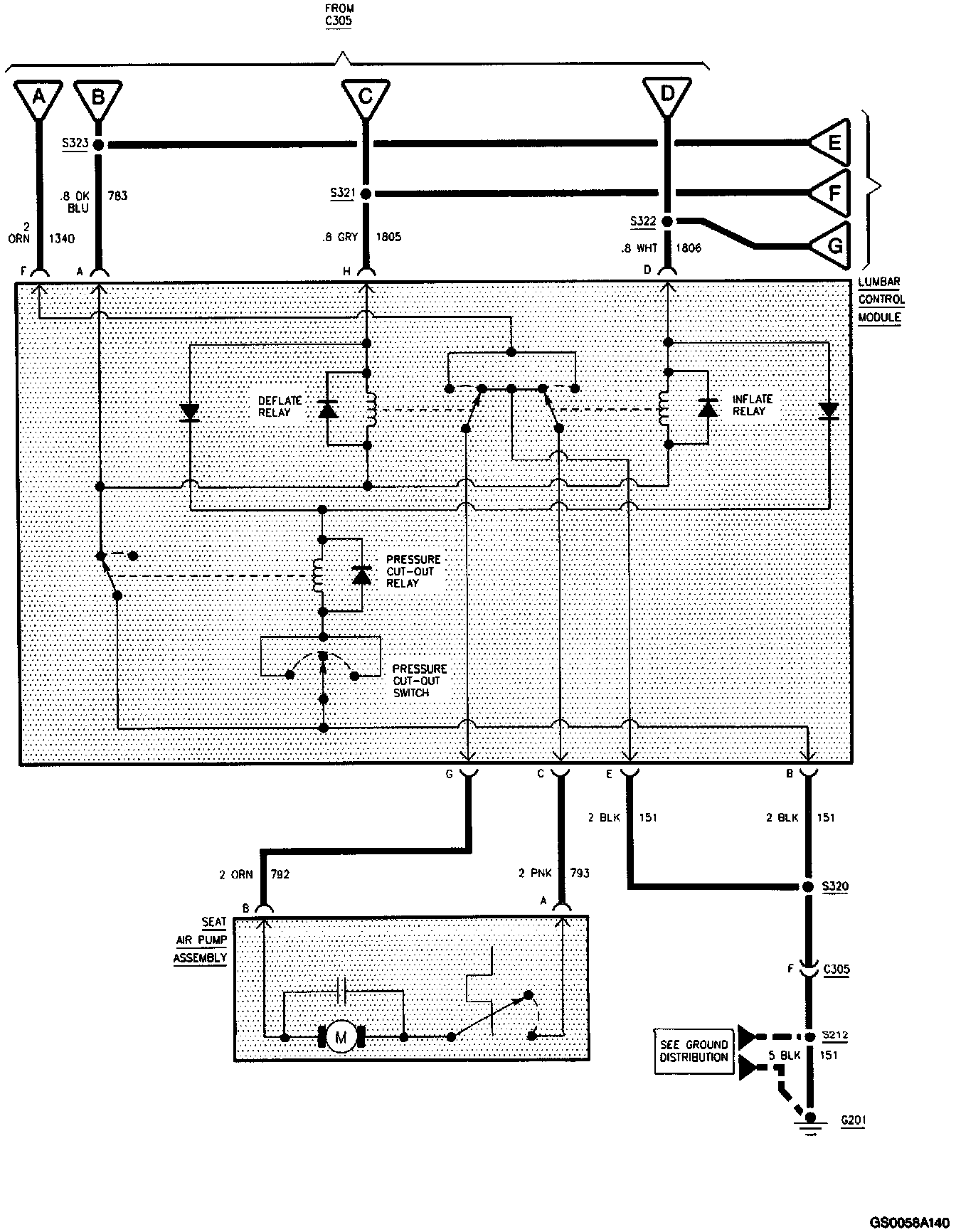

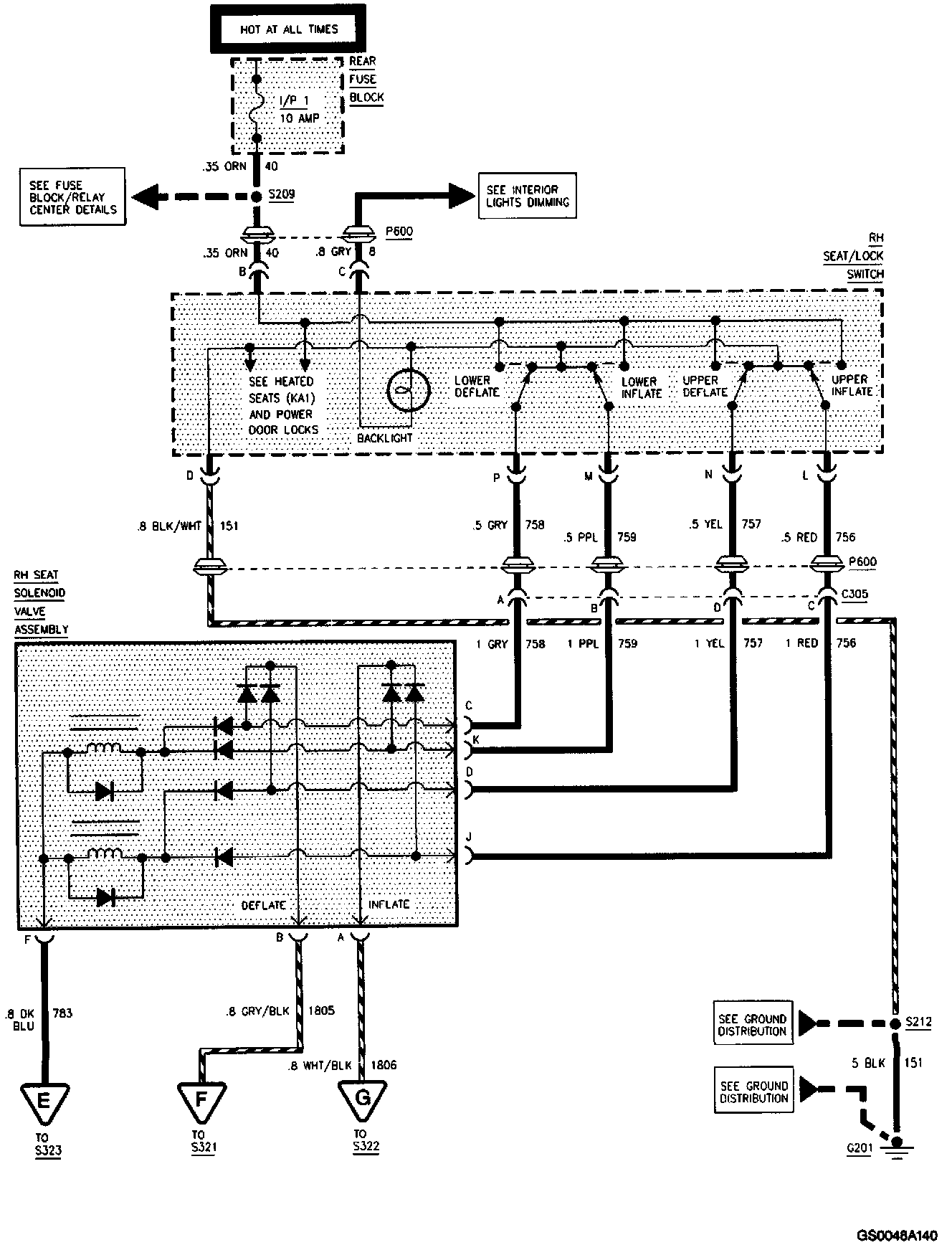

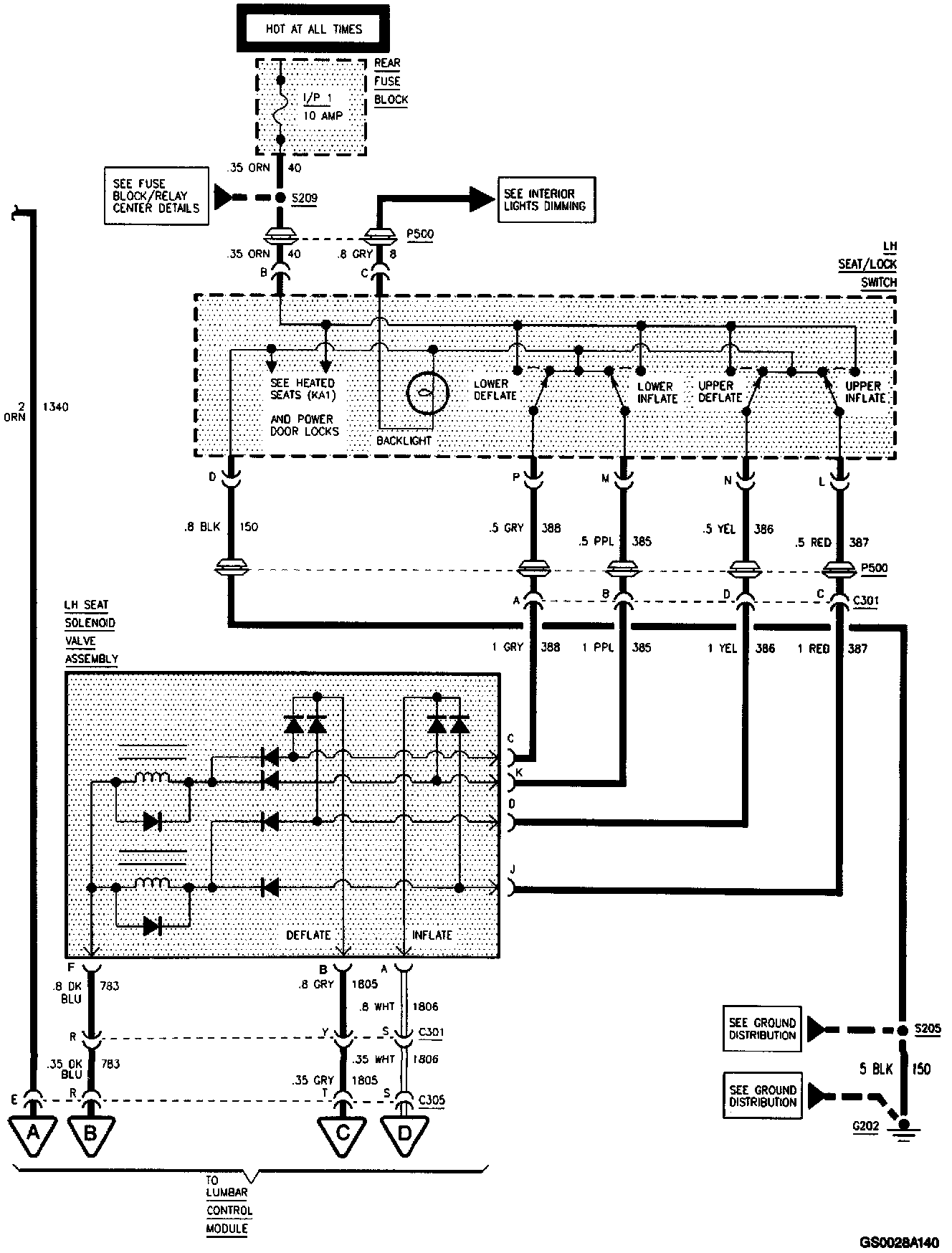

Power Seats

Power Seats:




Power Seats:




Power Seats:




Power Seats:




Power Seats:
