Door Ajar Indicator - R/H Rear Door Switch
FILE IN SECTION: 8 - Chassis/Body ElectricalBULLETIN NO.: 53-81-17
DATE: August, 1995
SUBJECT:
Intermittent Operation of the RH Rear Door Ajar Telltale on Driver Information Center (Change Pin-out of RH Rear Lock Switch Connector)
MODELS:
1995 Oldsmobile Aurora - Built Prior to VIN Breakpoint S4134890
CONDITION
Some vehicles may exhibit an inoperative door ajar telltale (on the Driver's Information Center) when the RH rear door is in the secondary latched position. However, this same telltale does function when the door is in the unlatched position.
CAUSE
The RH rear door lock switch connector was improperly assembled prior to vehicle assembly.
CORRECTION
Change pin-out of the RH rear lock switch connector as shown in Figure 1.
Important:
The RH rear lock switch connector has front load terminals which require the wires be cut, terminals repositioned and wires spliced to change the pin-out configuration.

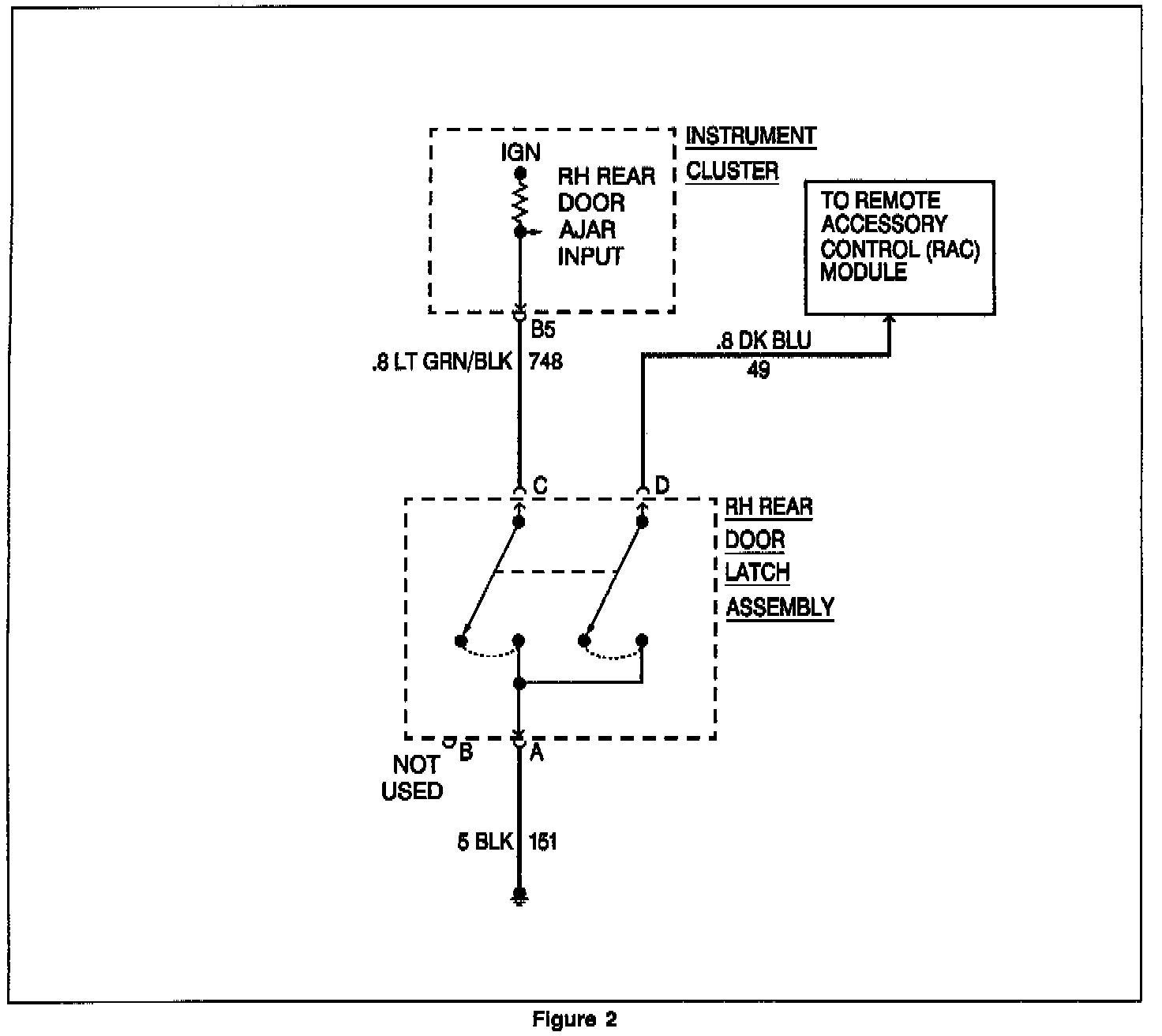

Figure 2 illustrates the proper pin-out of the RH rear lock switch connector.
WARRANTY INFORMATION
For vehicles repaired under warranty, use:
Labor Operation Labor Time
N6214 0.5 hr
