Ignition Controls

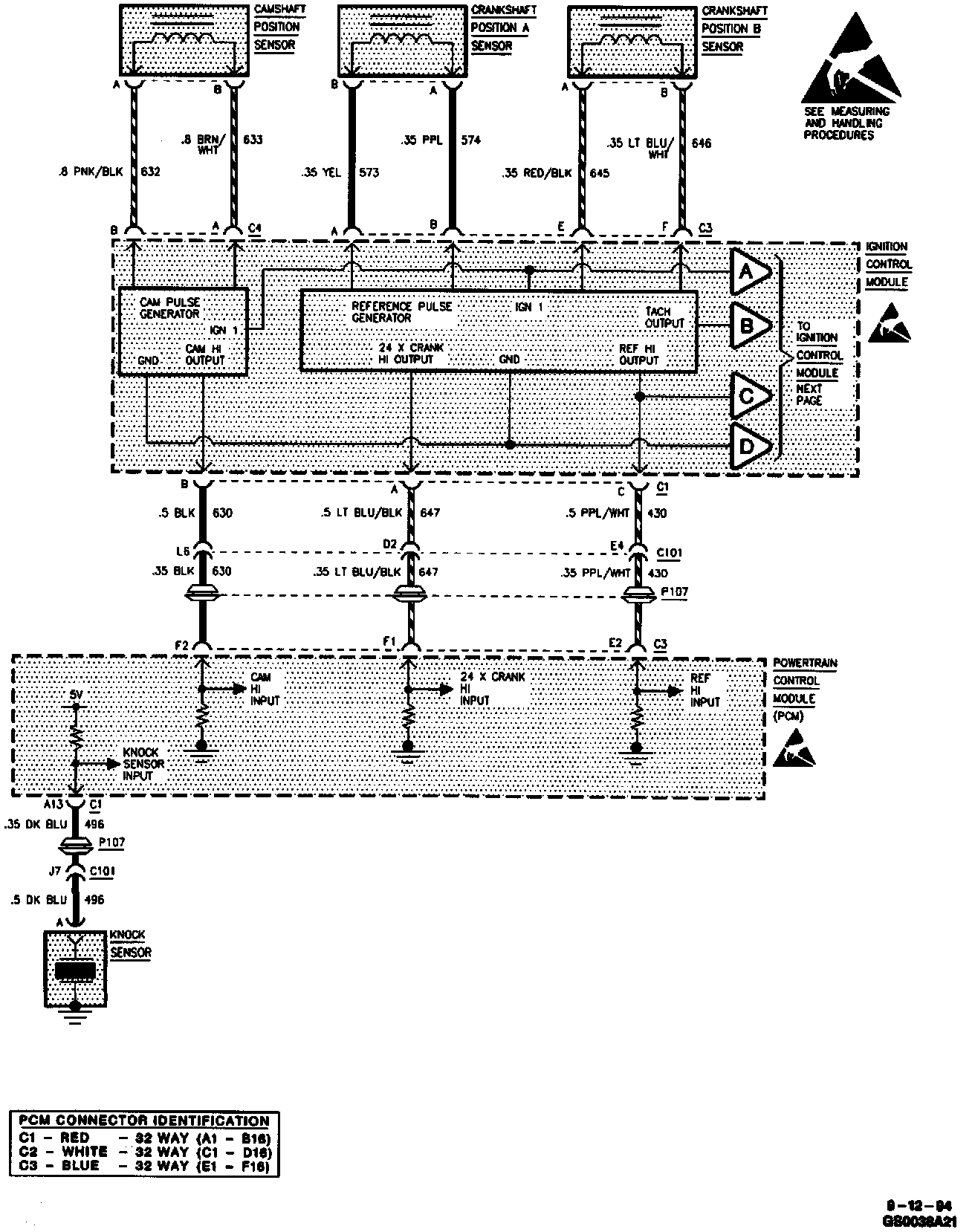

Electronic Ignition System (Part 1 Of 2):



Electronic Ignition System (Part 2 Of 2):



Ignition System Circuits:
