Test A: ELC Relay and Compressor Motor Test

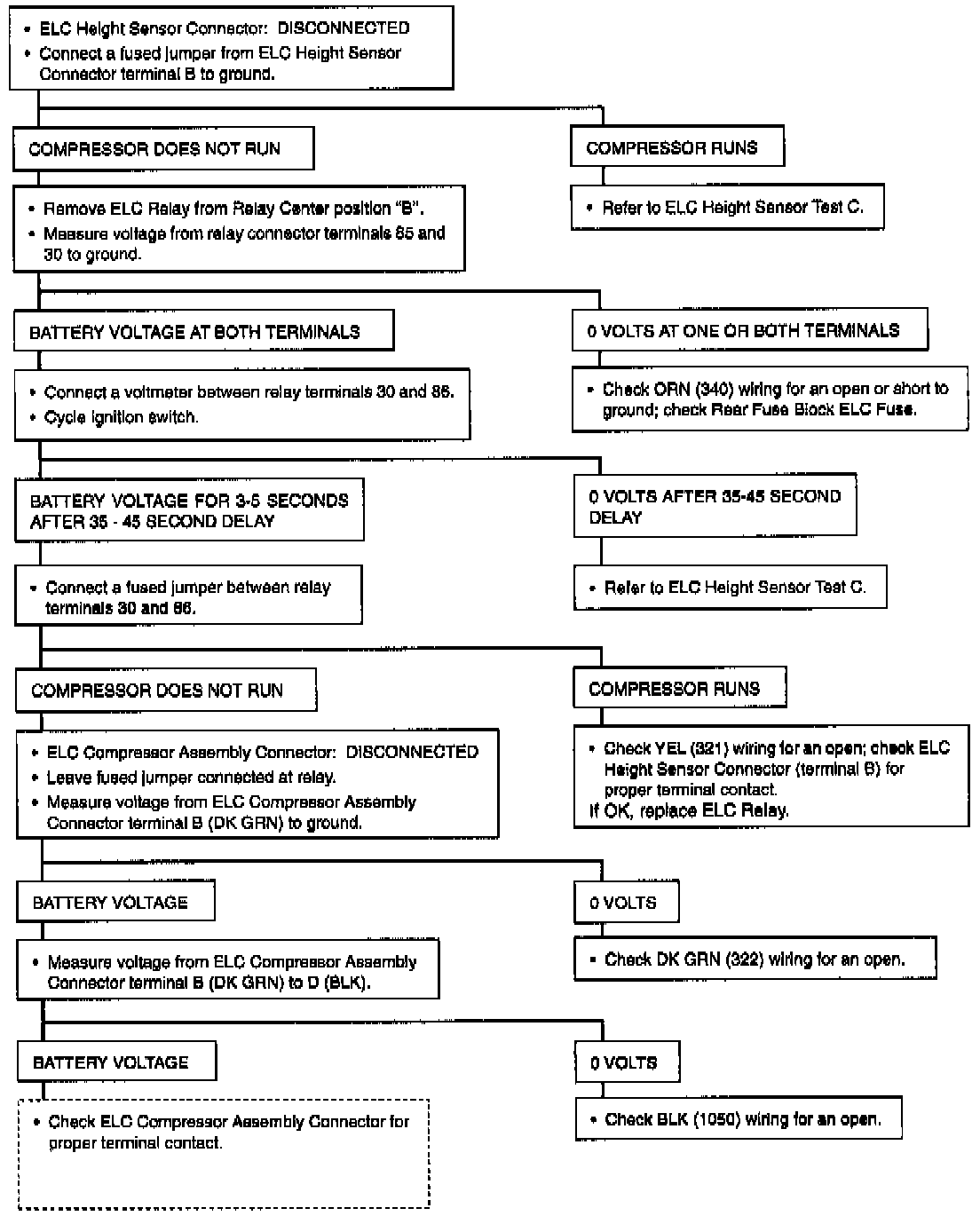

Fig. 30 Test A: ELC Relay & Compressor Motor Test.:

If ELC system is inoperative, check fuse in the fuse block. Refer to ELC diagnostic charts, Fig. 30 when performing electrical diagnosis on the ELC system.
