Wheel Alignment Specifications

NOTE: Vehicle must be jounced three times before checking alignment to eliminate false geometry readings.

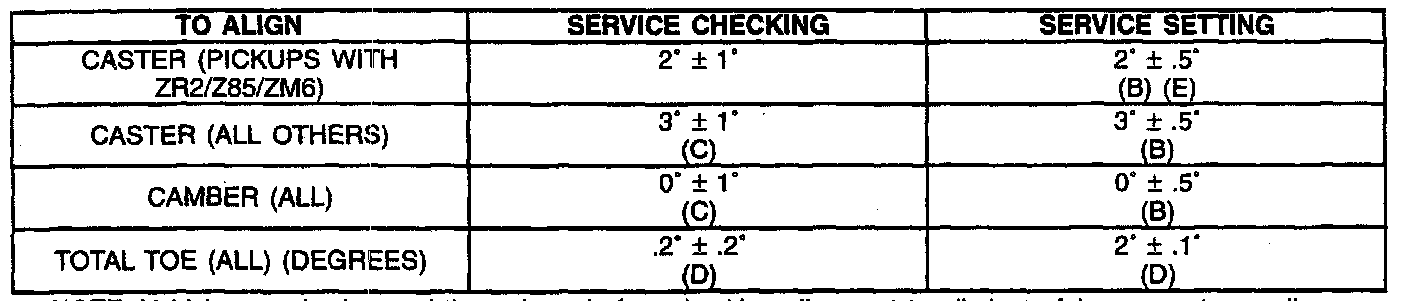

A. For FWD only, front suspension "Z" height dimension 122 ± 6.0 mm (4.8 ± 0.2 in), Left and right side to be equal within 6mm. Front end alignment specifications are indicated on this chart.

B. Left and right side to be equal within 0.50 degree.

C. Left and right side to be equal within 1.0 degree.

D. Steering wheel must be held in straight ahead position within ± 3.0 degree. Front individual toe must be equalized relative to rear wheel thrust angle.

E. GVW Alignment is the same for all vehicles.
