Sedan

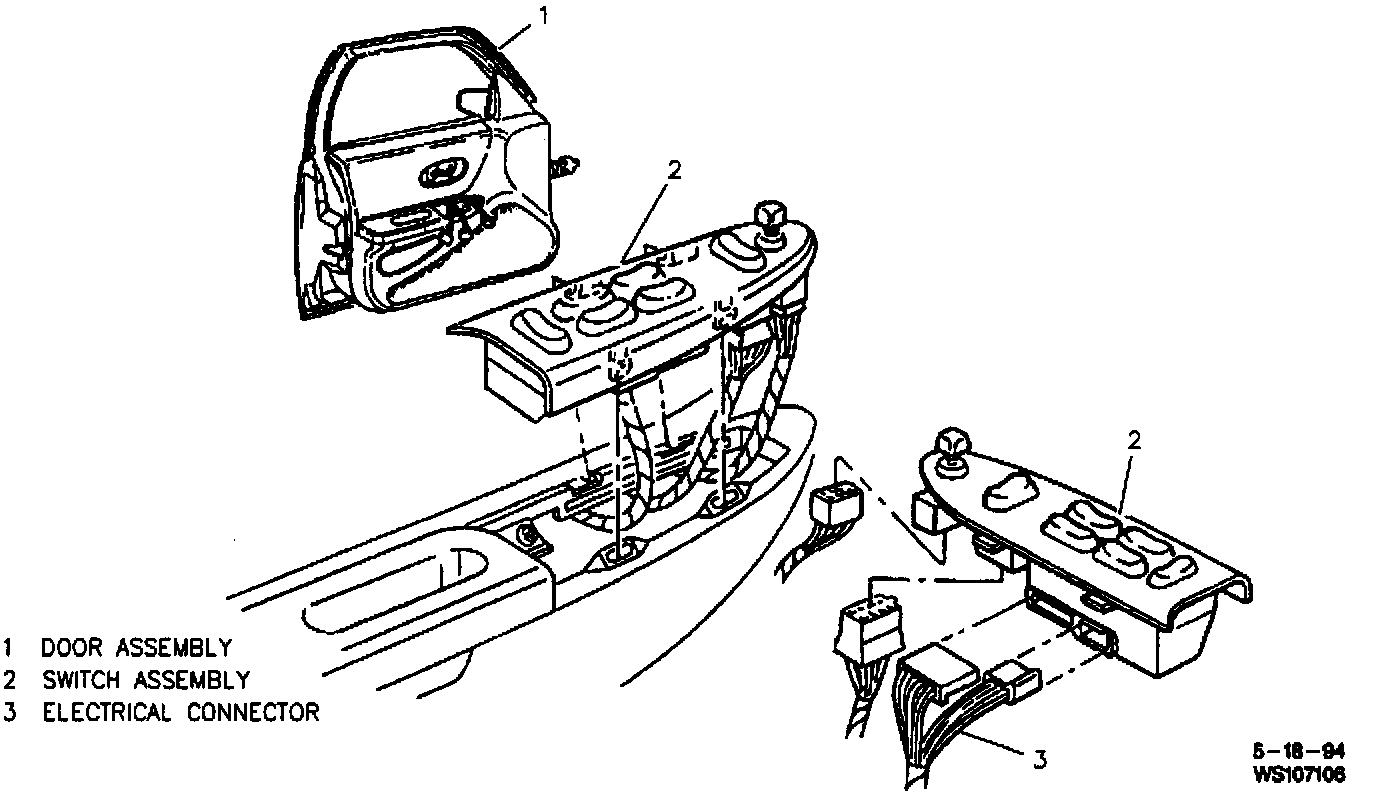

Power Window Switch Assembly:

Remove or Disconnect

1. Screws from switch plate assembly.
2. Switch plate assembly from trim panel.
3. Retainer(s) from connector(s).
4. Connector(s) from switch plate assembly.

Install or Connect

1. Connector(s) to switch plate assembly.
2. Retainer(s) to connector(s).
3. Switch plate assembly to trim panel cutout. Press firmly to secure.
4. Screws to switch plate assembly.

Tighten
^ Screws to 1.9 N.m (17 lb. in.).
