Regulator

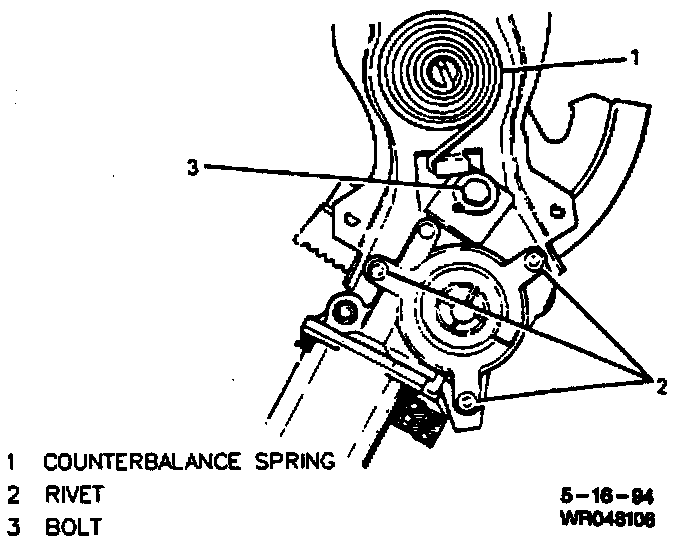

Door Window Regulator Motor:

Coupe and sedan front doors use a signal lift arm regulator. The following procedures are required for removal and replacement of both power and manual window regulators.

Remove or Disconnect

Important
- Tape window to the full-up position.

1. Door trim panel.
2. Water deflector.
3. Rivets using 1/4 inch drill bit.
4. Regulator by disengaging regulator arm from sash channel.
5. Electrical connector to motor (power window systems). Remove regulator through door inner access hole.

Install or Connect

1. Regulator though access hole and attach regulator arm to sash channel.
2. Electrical connector to motor (power window system).
3. Rivets using 1/4 inch x 1/2 inch peel type rivets.
4. Water deflector.
5. Door trim panel.
