Blower Motor Resistor: Service and Repair

BLOWER RESISTOR ASSEMBLY (RPO C61, C67)

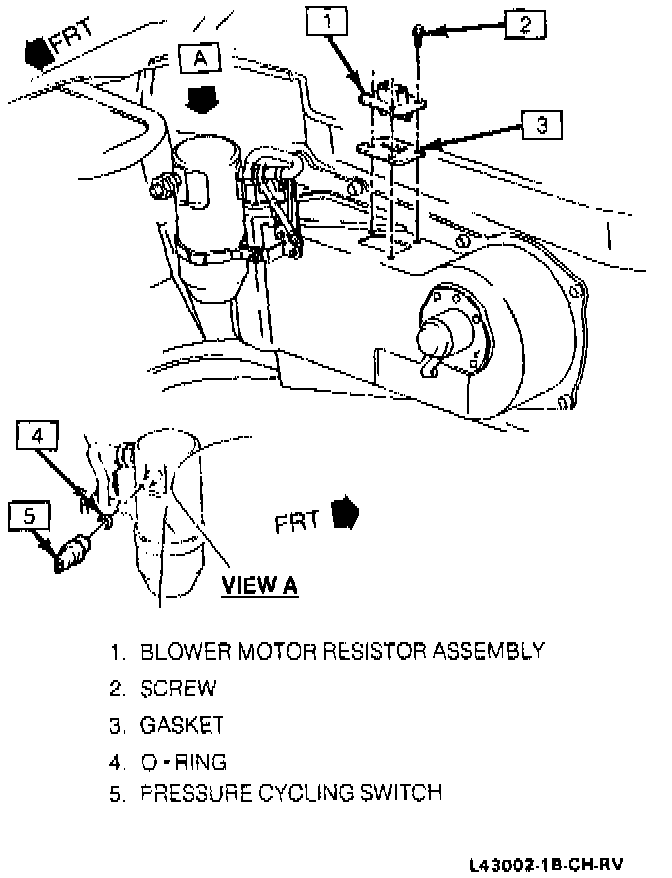

Blower Motor Resistor And Pressure Cycling Switch:

Blower Resistor Assembly:

REMOVE OR DISCONNECT
1. Negative battery cable.
2. Rear engine sight shield. Refer to Engine Cover Replacement Service and Repair.
3. Center bolt and positive battery cable from multi-use relay and fuse bracket.
4. Underhood fuse blocks and relays from bracket and position aside.
5. Nuts attaching multi-use relay and fuse bracket to front of dash, and bracket from vehicle.
6. Connector Position Assurance (CPA) Pin and electrical connector from blower motor resistor.
7. Screws attaching blower motor resistor to blower module assembly.
8. Blower motor resistor from vehicle.

INSTALL OR CONNECT
1. Screws attaching blower motor resistor to blower module assembly after positioning in vehicle.
^ Tighten Screws to 1.4 Nm (12 lb. in.).
2. Electrical connector to blower motor resistor and CPA.
3. Nuts attaching multi-use relay and fuse bracket to front of dash after positioning on vehicle.
^ Nuts to 3.8 Nm (34 lb. in.).
4. Position fuse blocks and relays to bracket and snap in.
5. Center bolt attaching positive battery cable to multi-use relay and fuse bracket after positioning cable.
^ Tighten Bolt to 10 Nm (89 lb. in.).
6. Rear engine sight shield. Refer to Engine Cover Replacement Service and Repair.
7. Negative battery cable.
