Control Assembly, HVAC

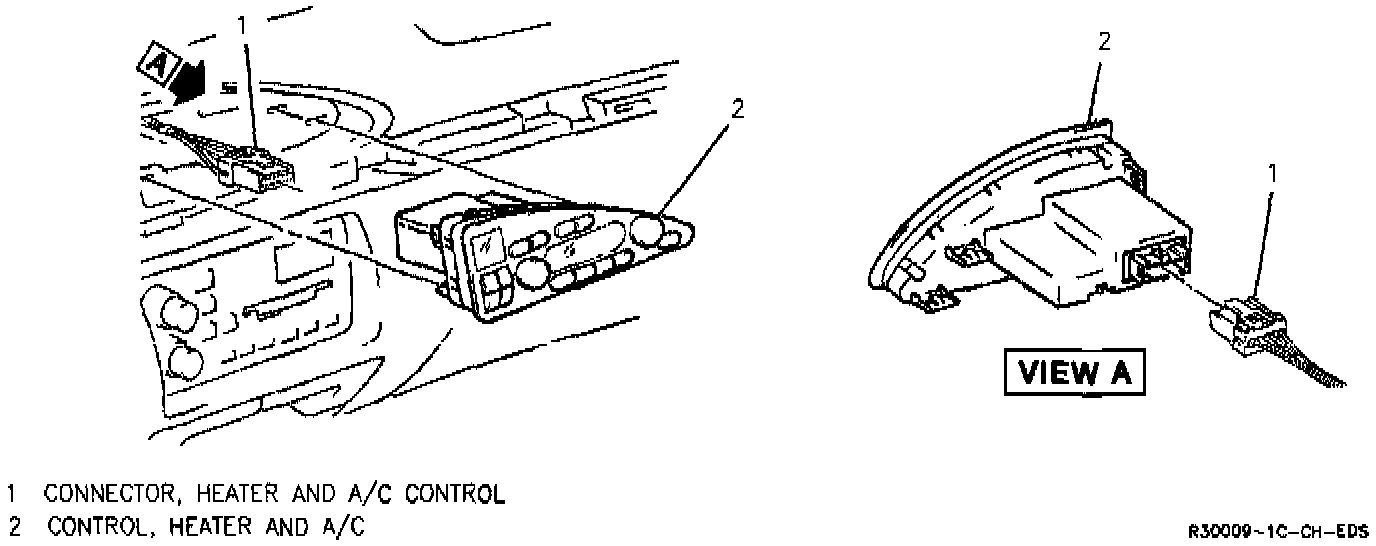

Heater And A/C Control:

REMOVE OR DISCONNECT

1. Instrument Panel (I/P) close out panel.

2. Electrical connectors.

3. Heater and A/C control from close out.

INSTALL OR CONNECT

1. I/P closeout to I/P.

2. Electrical connector to heater and A/C control.

3. Heater and A/C control to I/P close out, push in to engage retainer clips.
