Home >> Oldsmobile >> 1995 >> Ninety-Eight V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Solar Sensor >> Locations >> Component Locations >> Sun Load Sensor

Sun Load Sensor

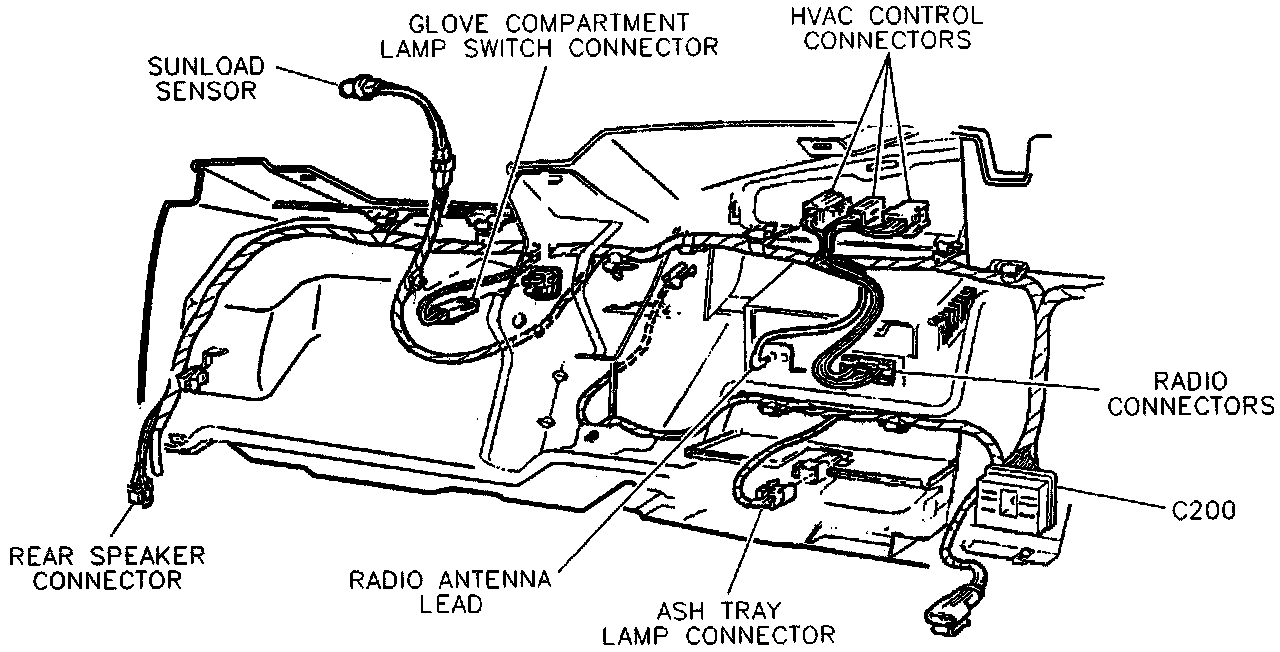

I/P Harness Wiring, LH Side Of I/P:
