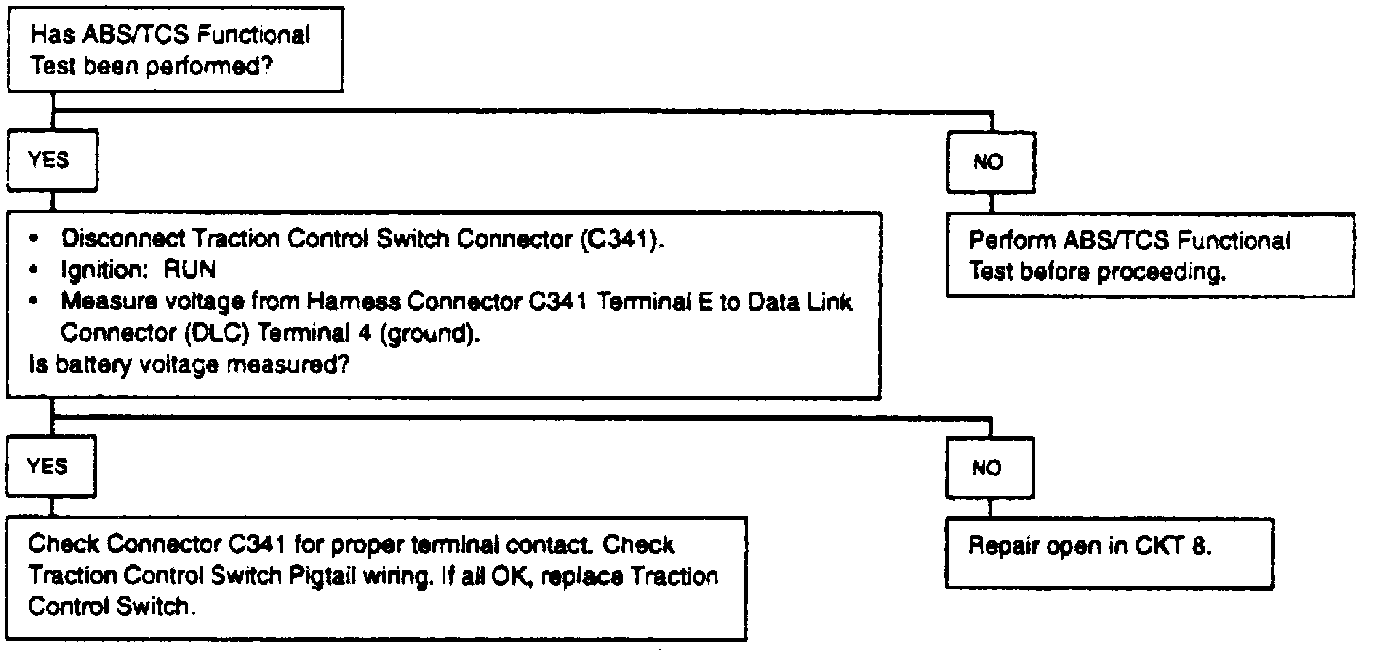

Test E Traction Control Switch Lamp Does Not Function Properly

Test E: Traction Control Switch Lamp Does Not Function Properly.:

Traction Control Switch Lamp Does Not Operate Properly:

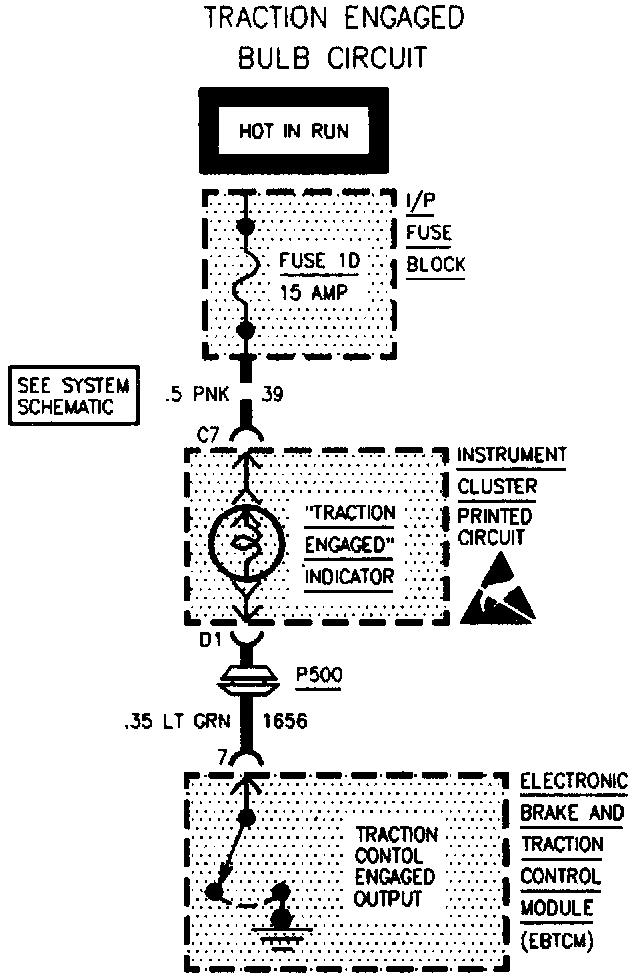

CIRCUIT OPERATION
When the EBTCM is operating in the traction control mode, the EBTCM's traction control engaged output (terminal 7) closes, grounding either the instrument cluster's DIC traction control engaged input or the traction control switch LED. The EBTCM grounds this terminal to alert the driver that the traction control system (TCS) is operating.
