Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

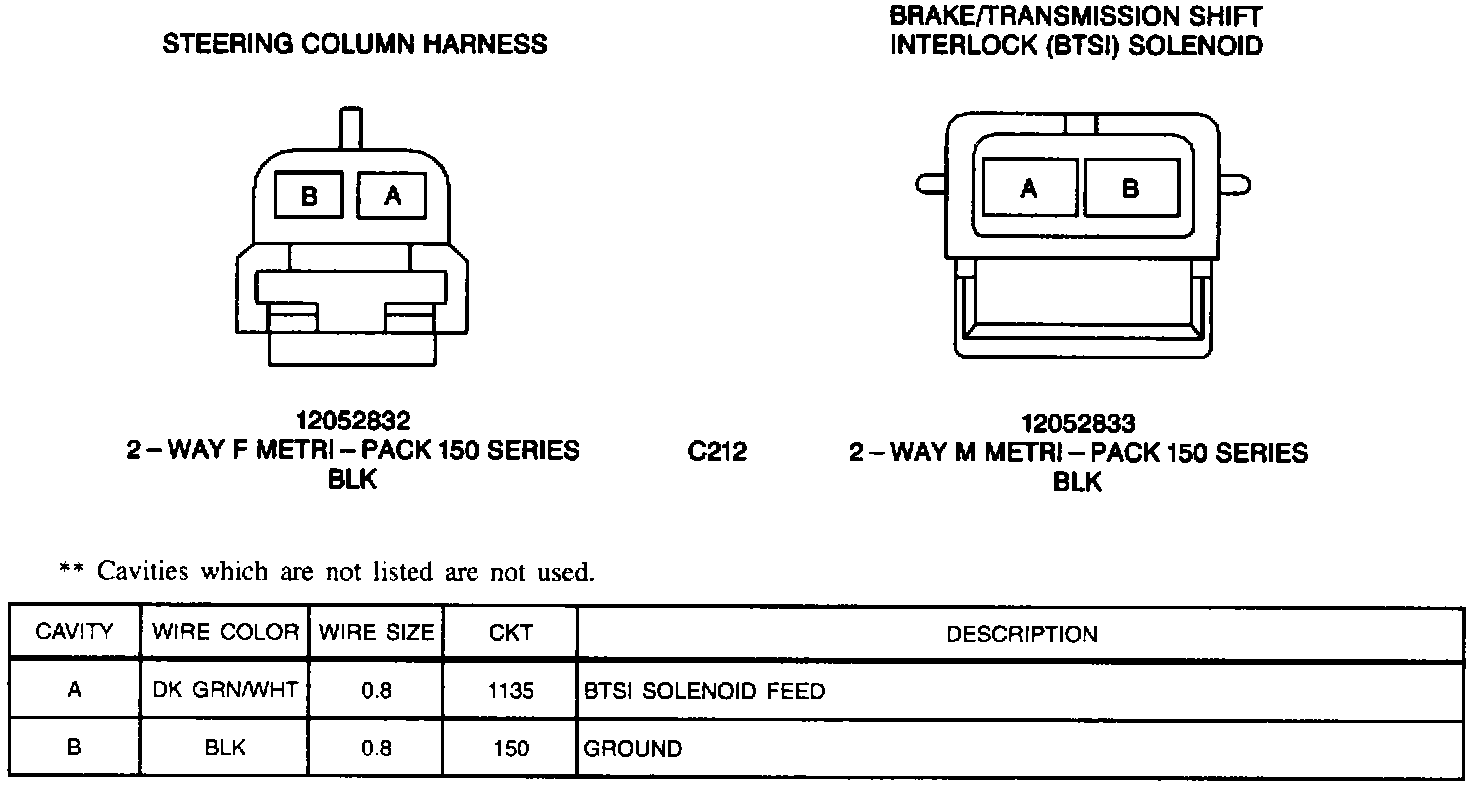

Shift Interlock Solenoid
Shift Interlock Solenoid
C212: Steering Column Harness:
