Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Shift Interlock Switch
Shift Interlock Switch

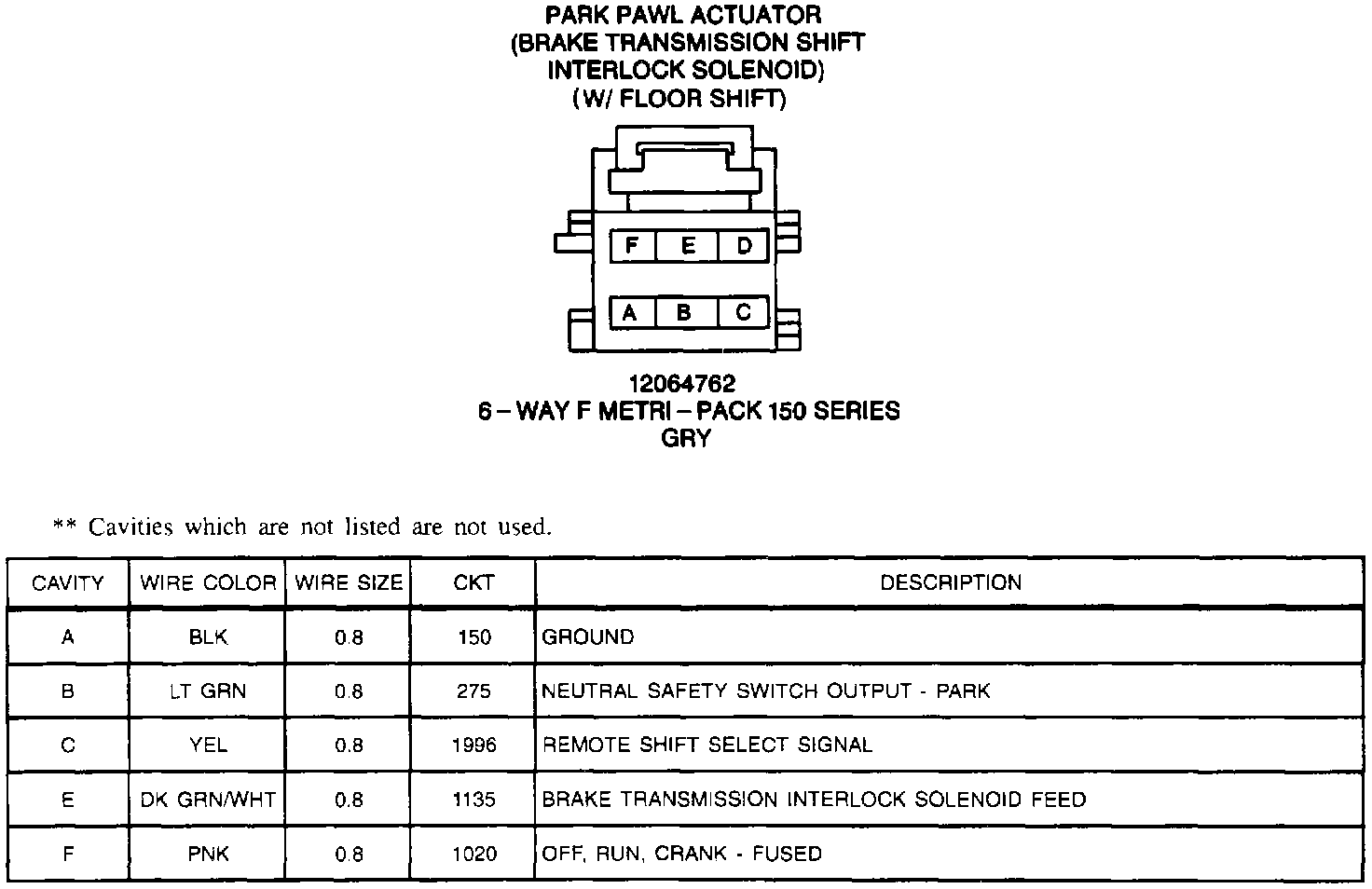

Park Pawl Actuator:
