Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1996
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
Speaker

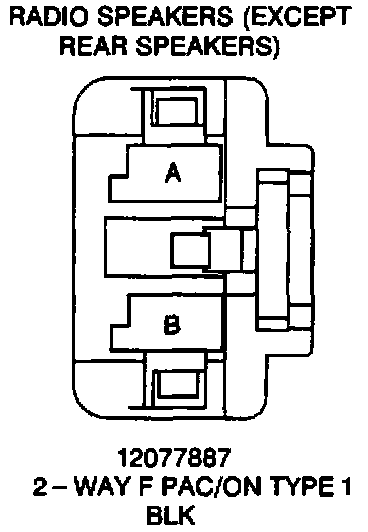

Radio Speakers:

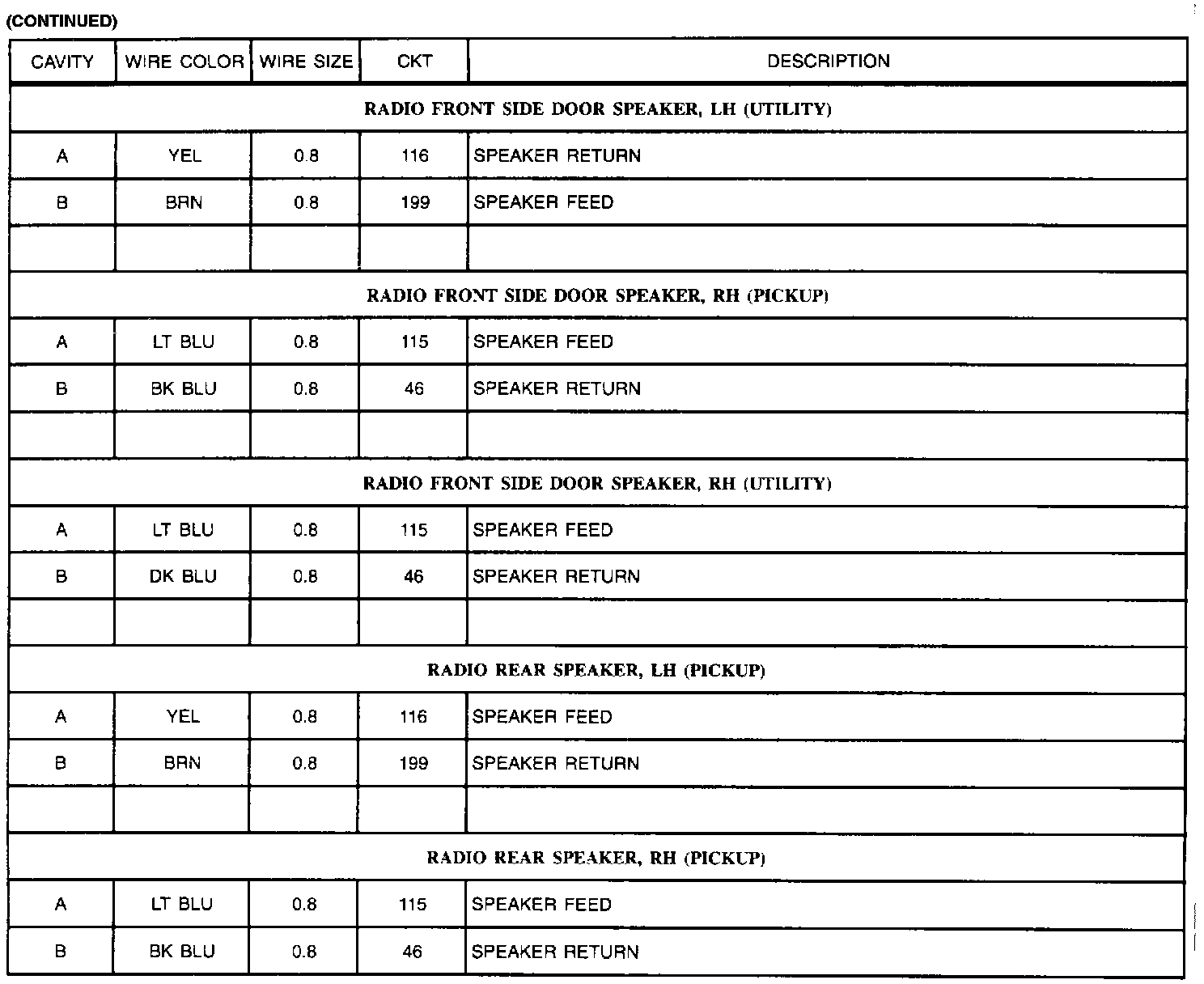

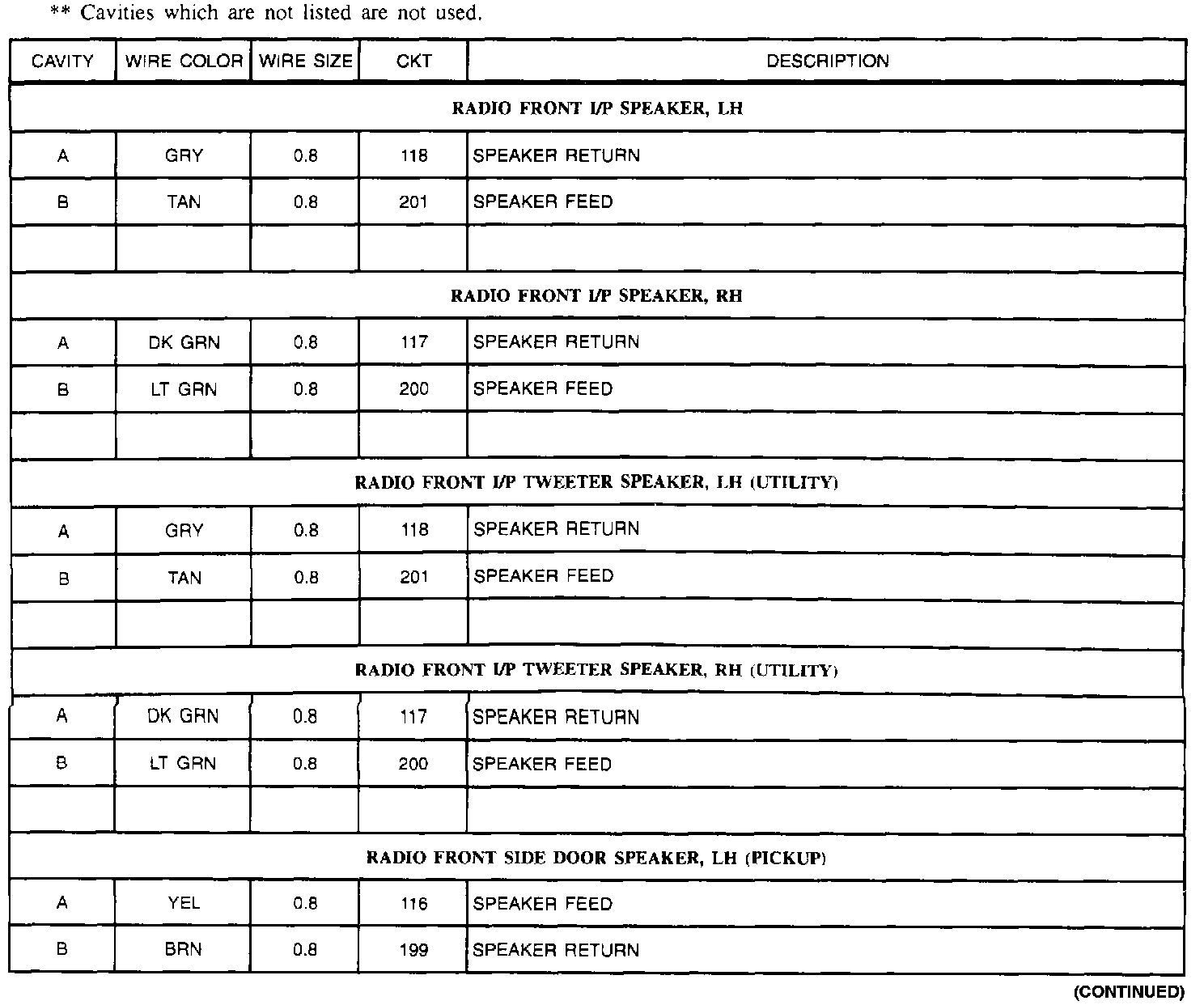

Radio Speakers (Part 1 Of 2):
Radio Speakers (Part 2 Of 2):

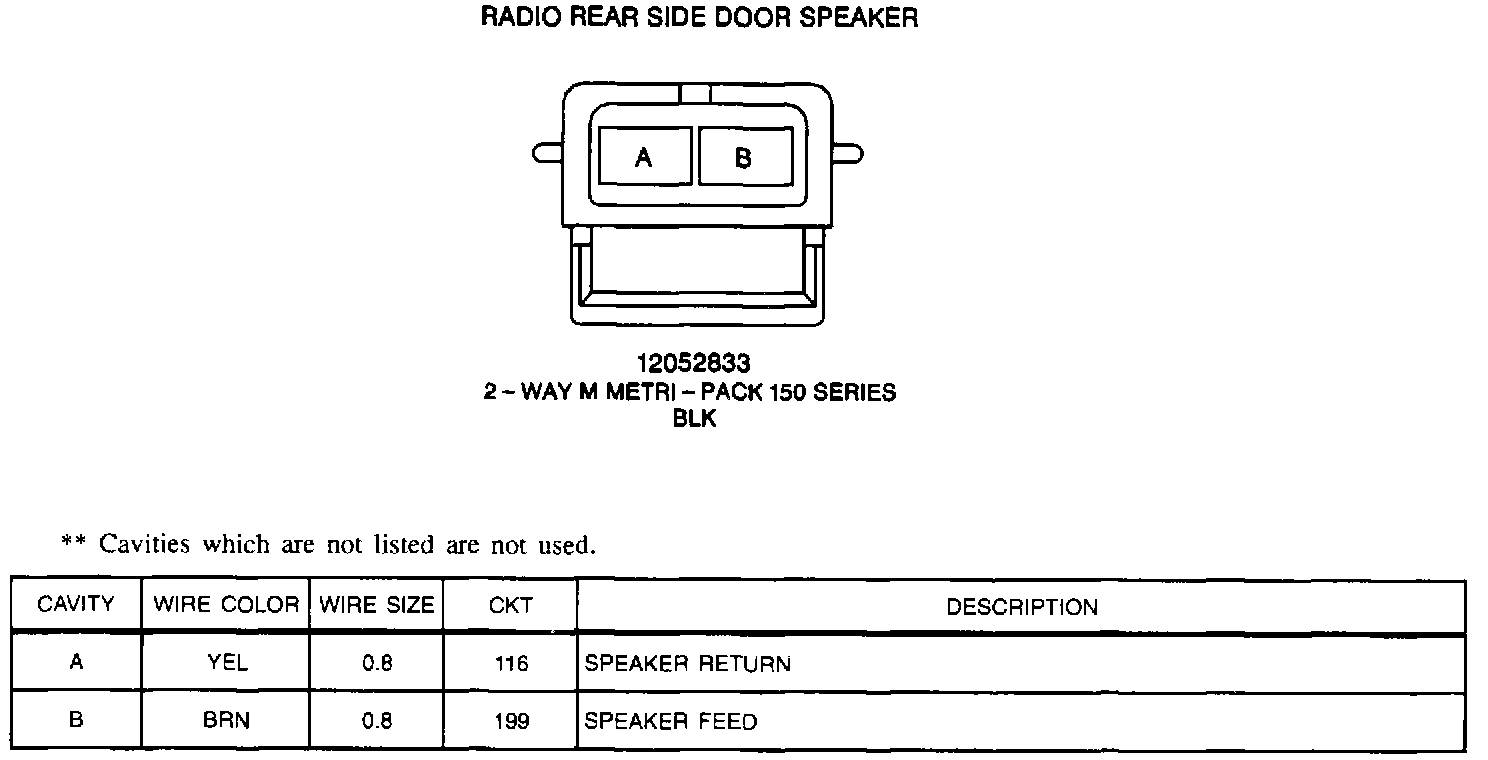

Radio Rear Side Door Speaker:

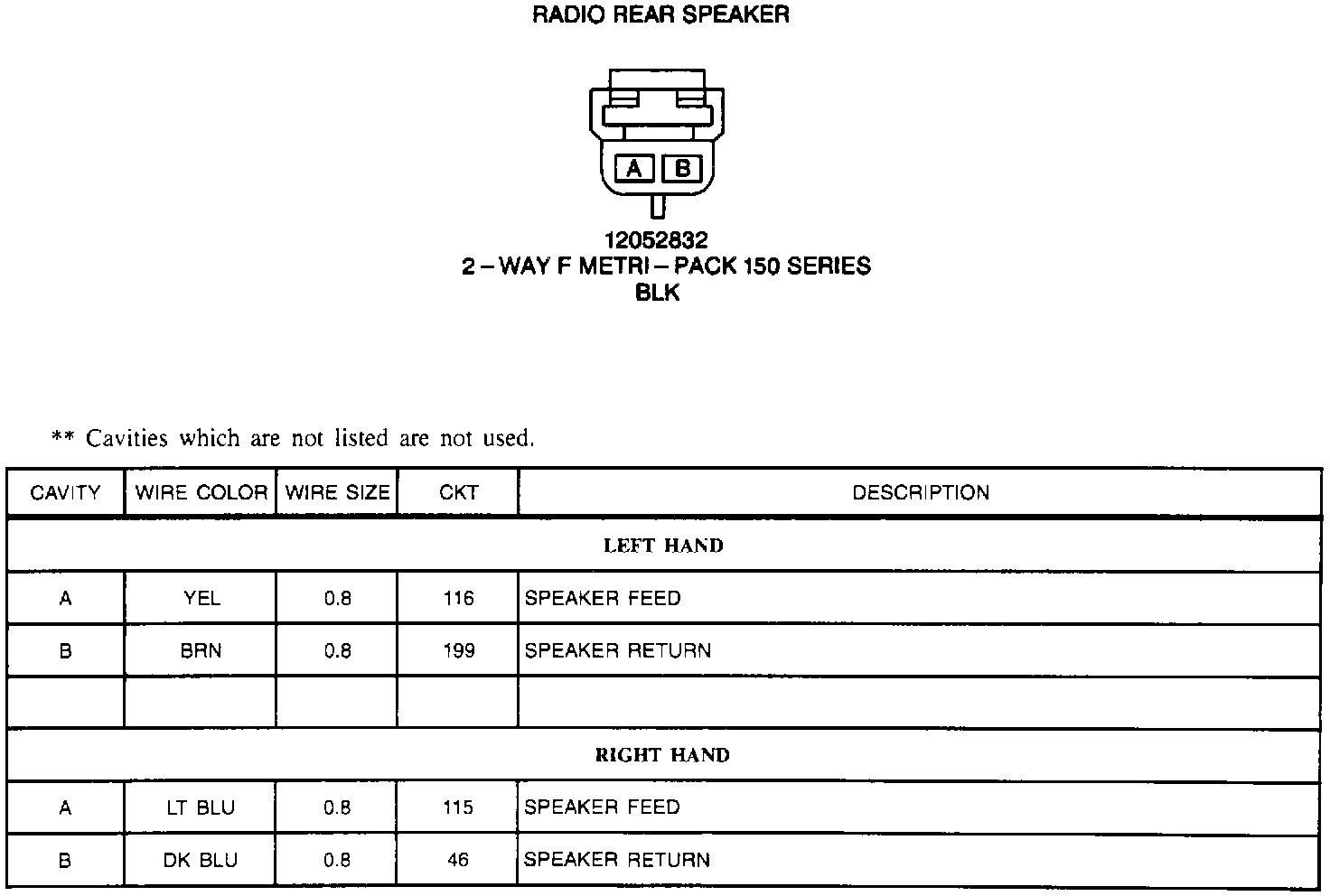

Radio Rear Speaker:

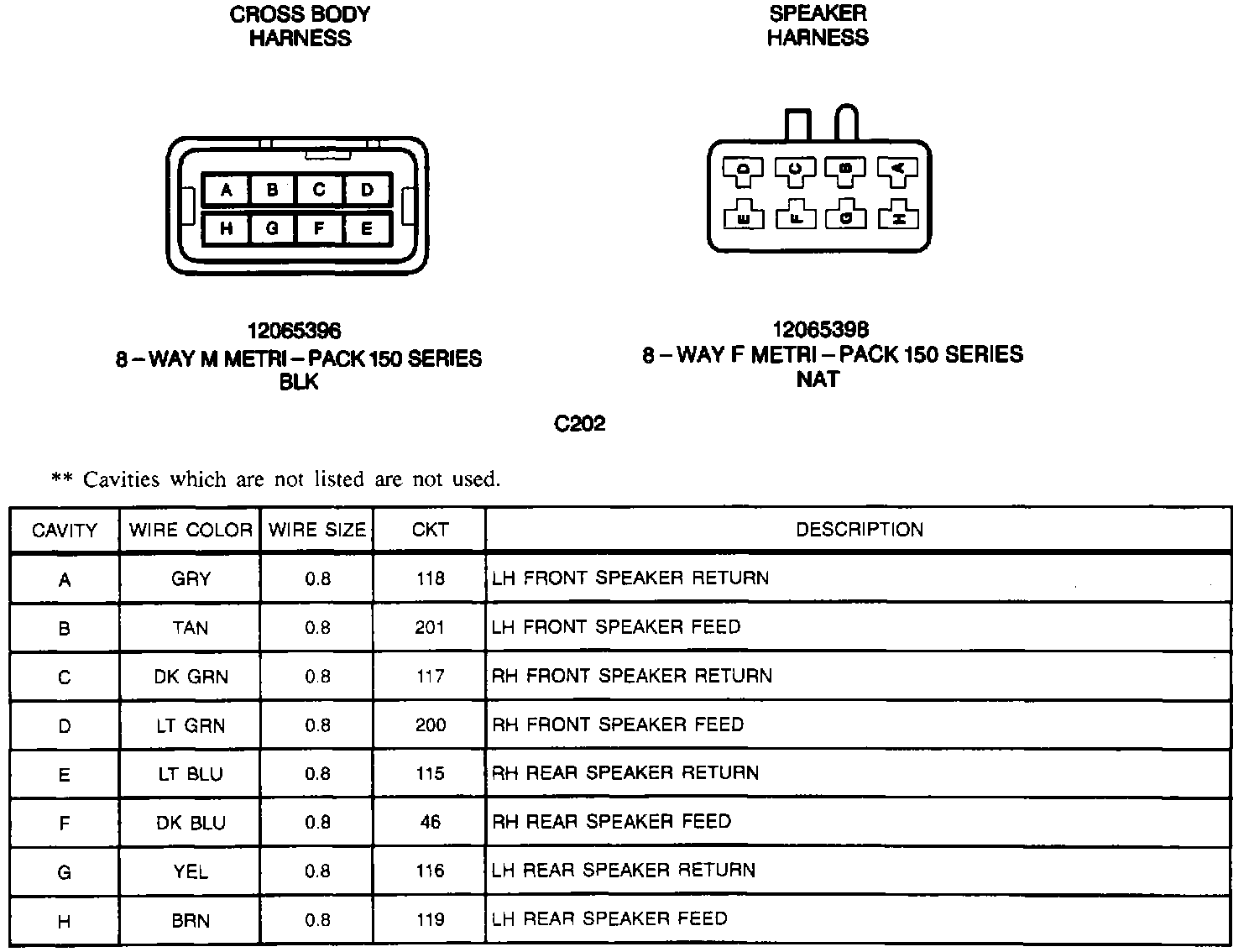

C202: Cross Body Harness:
