Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1996
>>
Bravada V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Keyless Entry
Keyless Entry

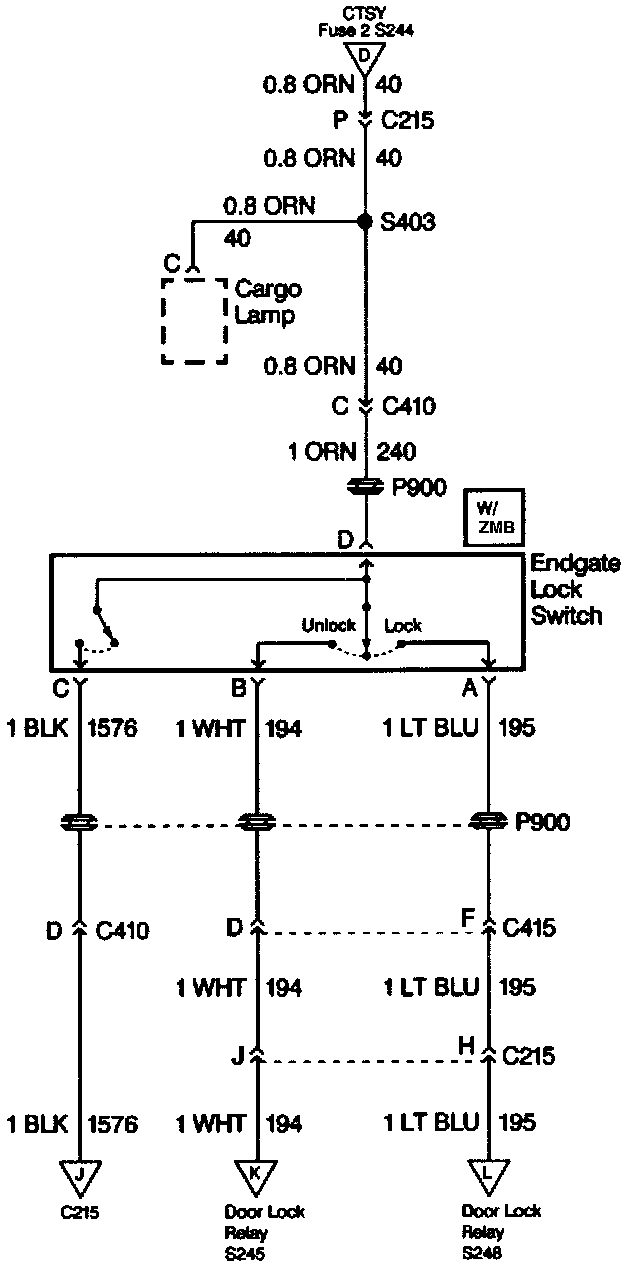

Keyless Entry (1 of 5):

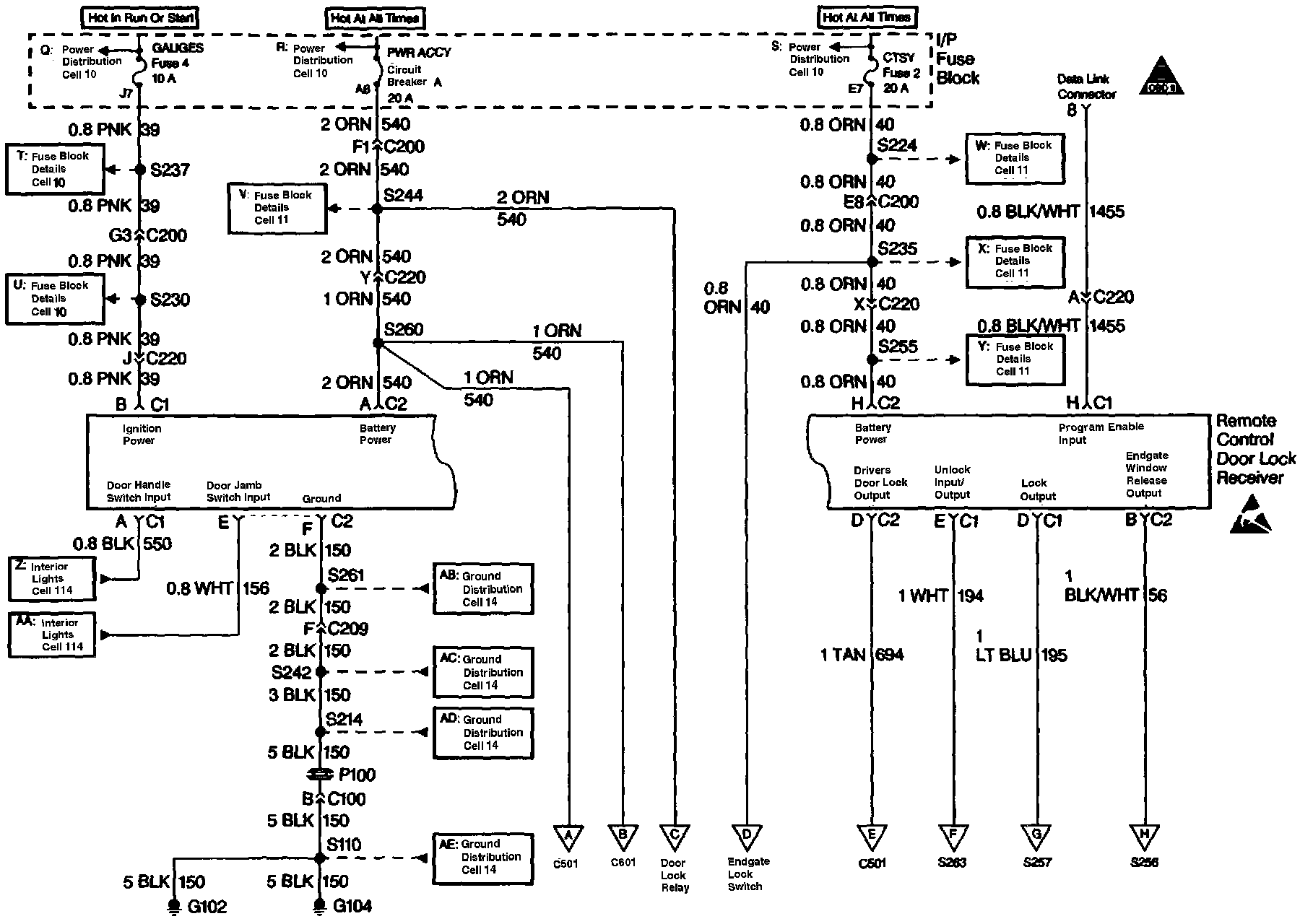

Keyless Entry (2 of 5):

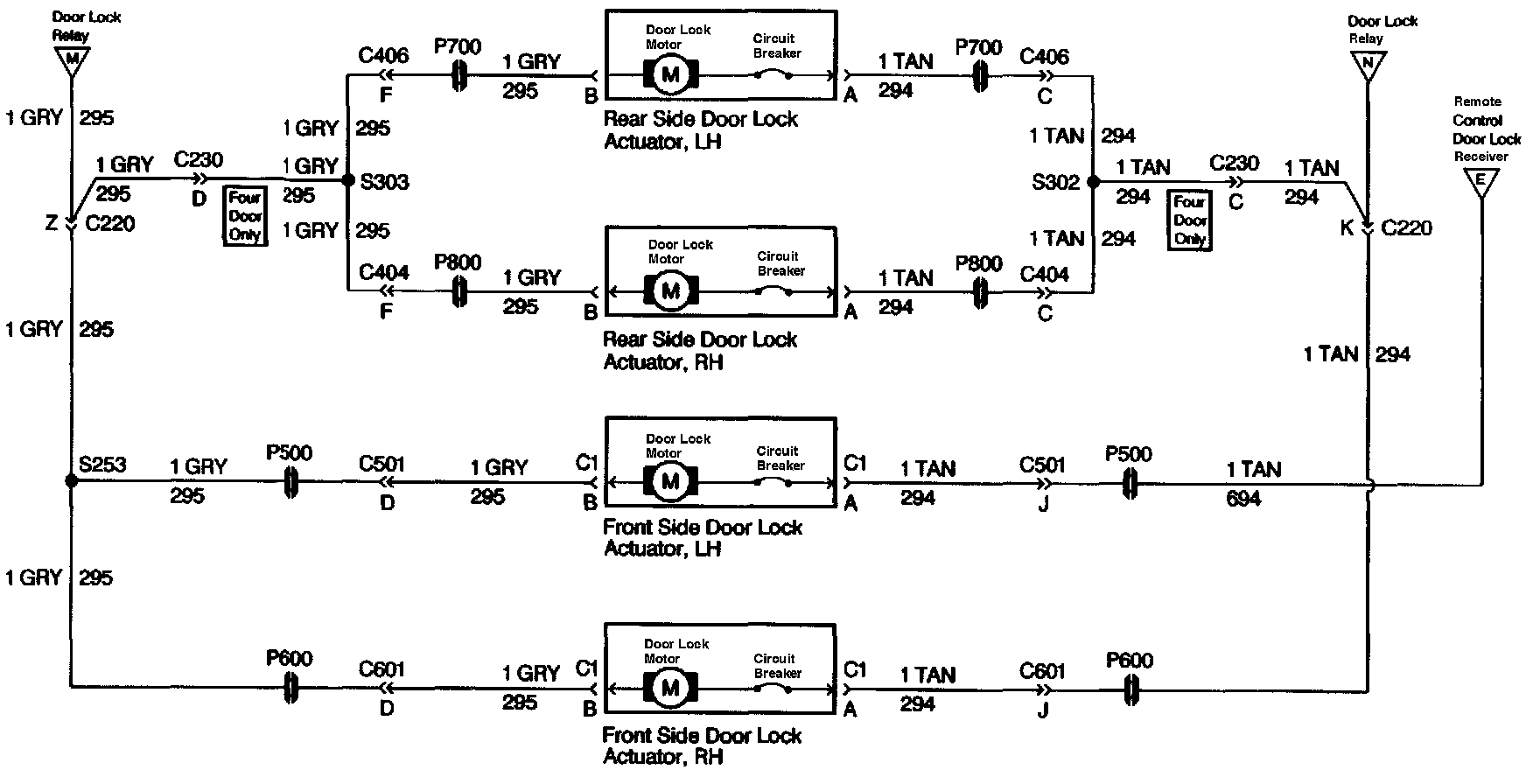

Keyless Entry (3 of 5):

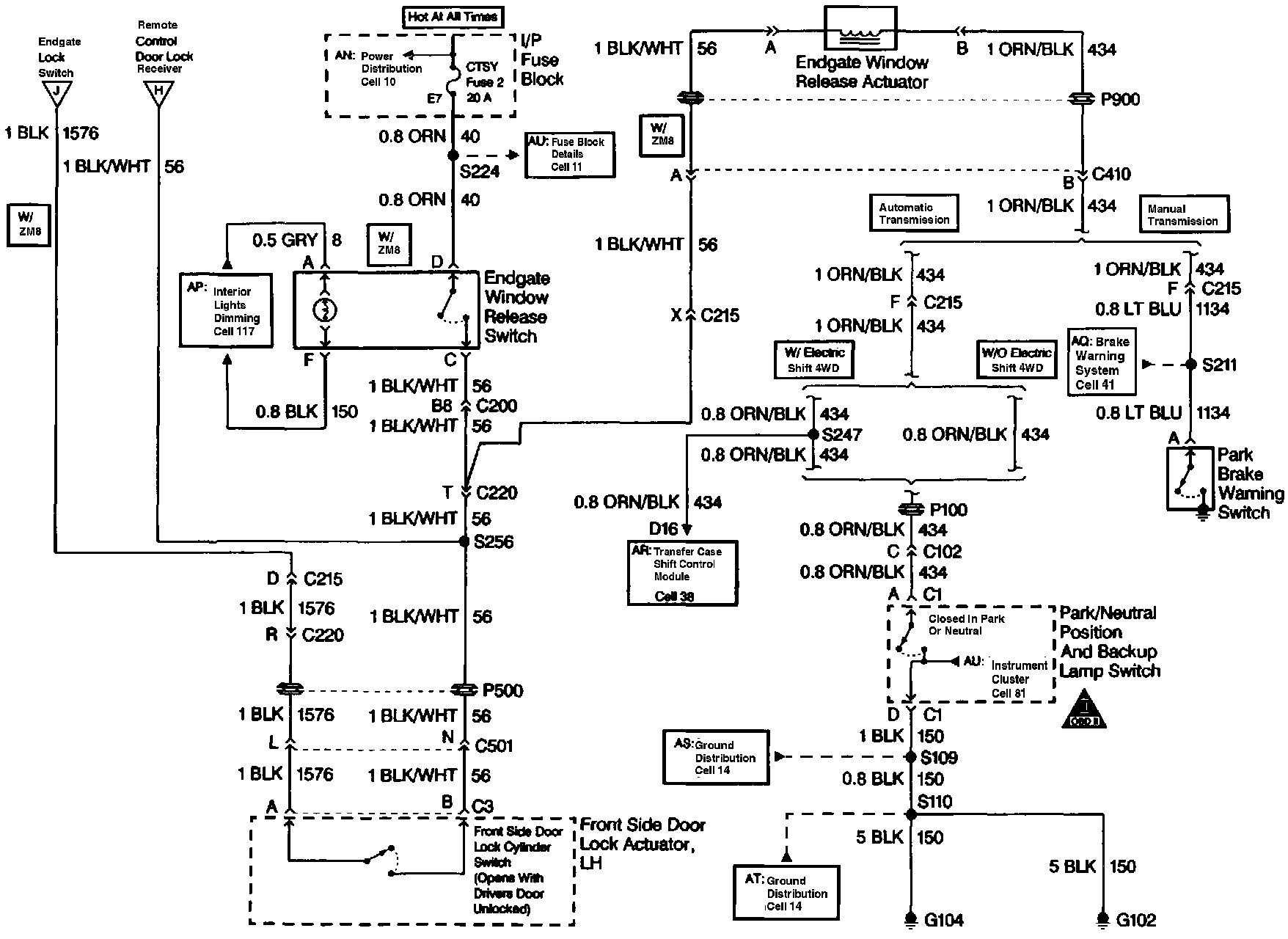

Keyless Entry (4 of 5):

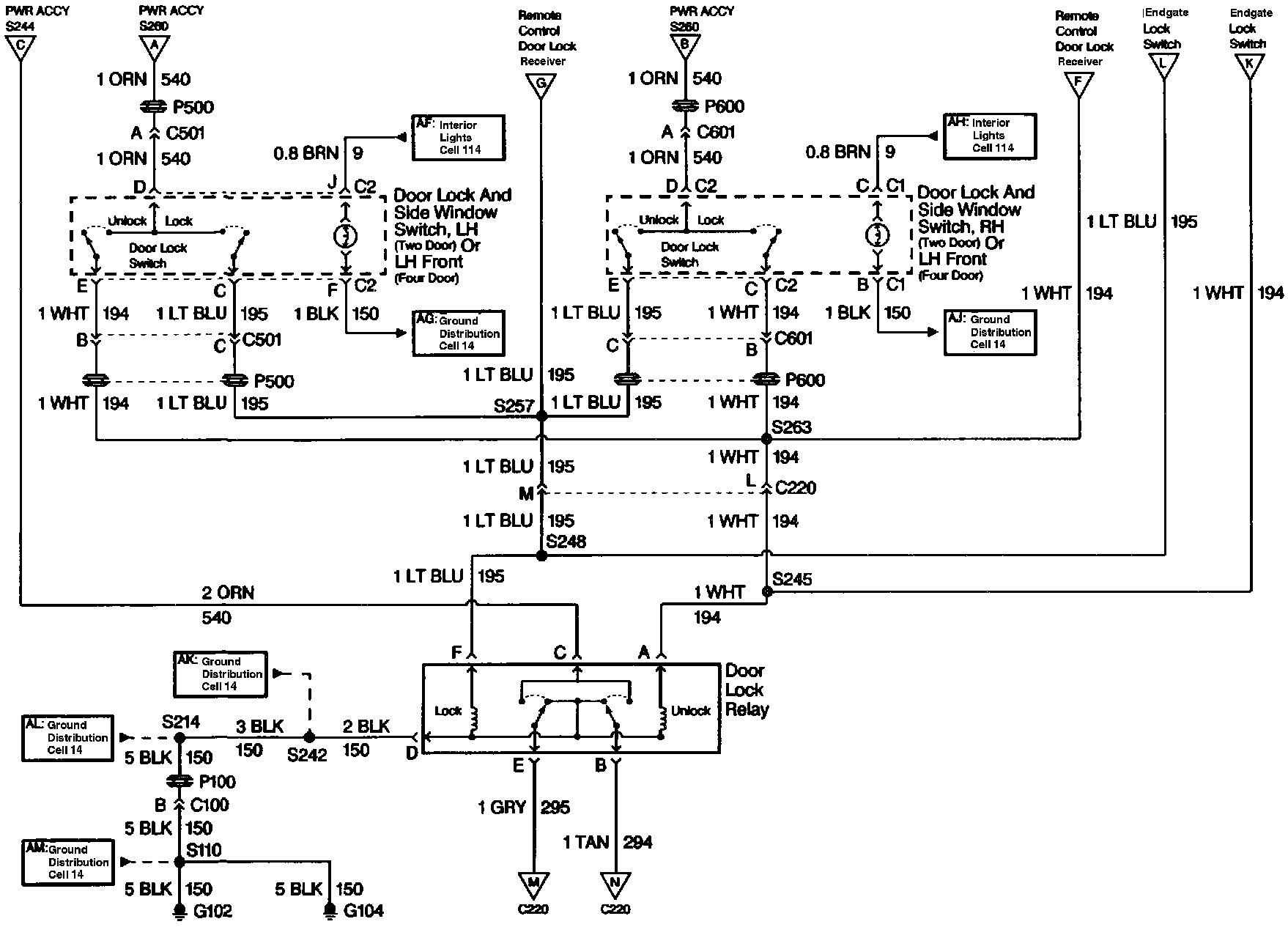

Keyless Entry (5 of 5):
