Connector Views

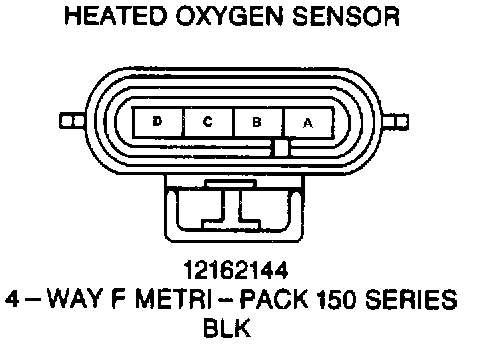

Heated Oxygen Sensor:

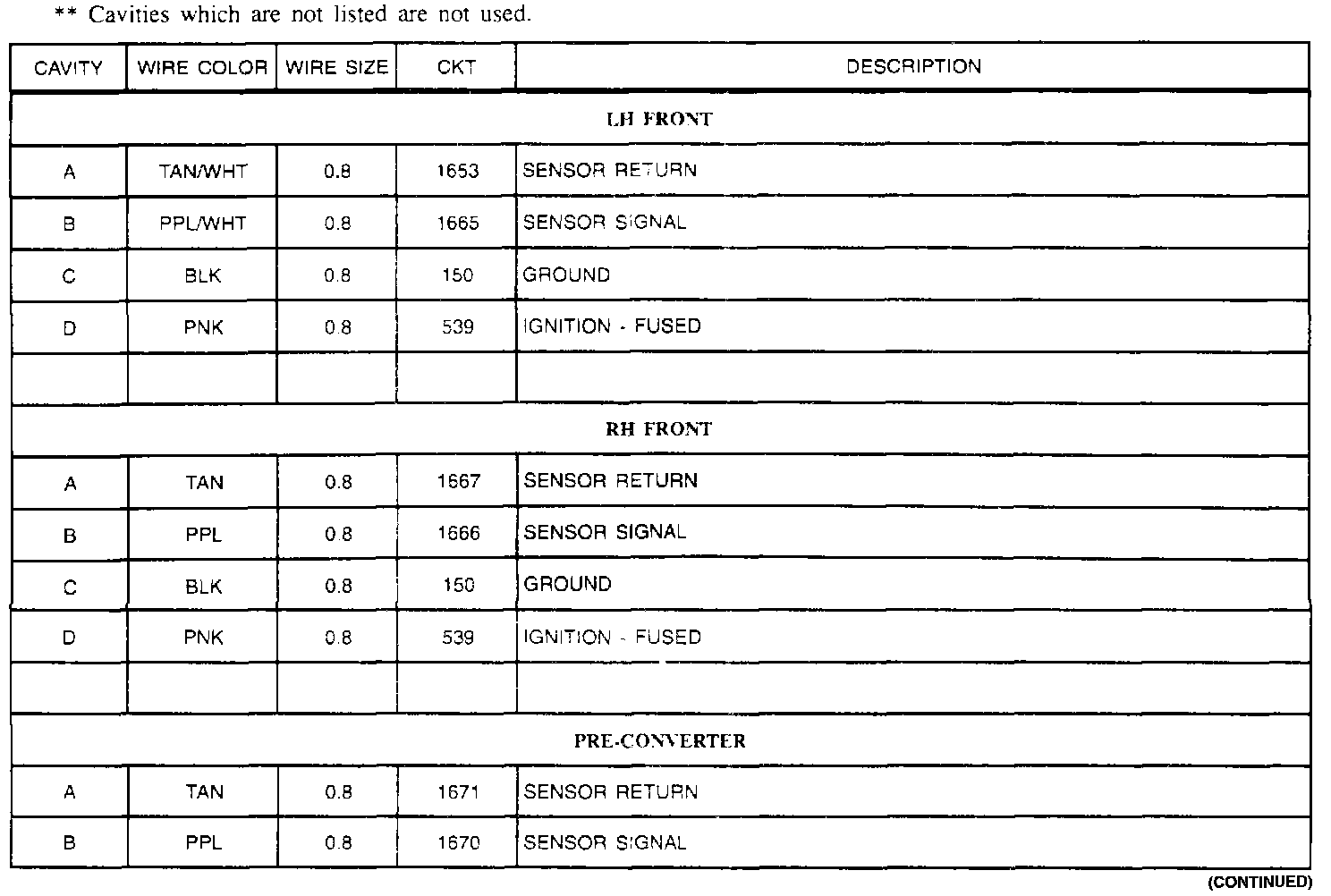

Heated Oxygen Sensor (Part 1 Of 2):

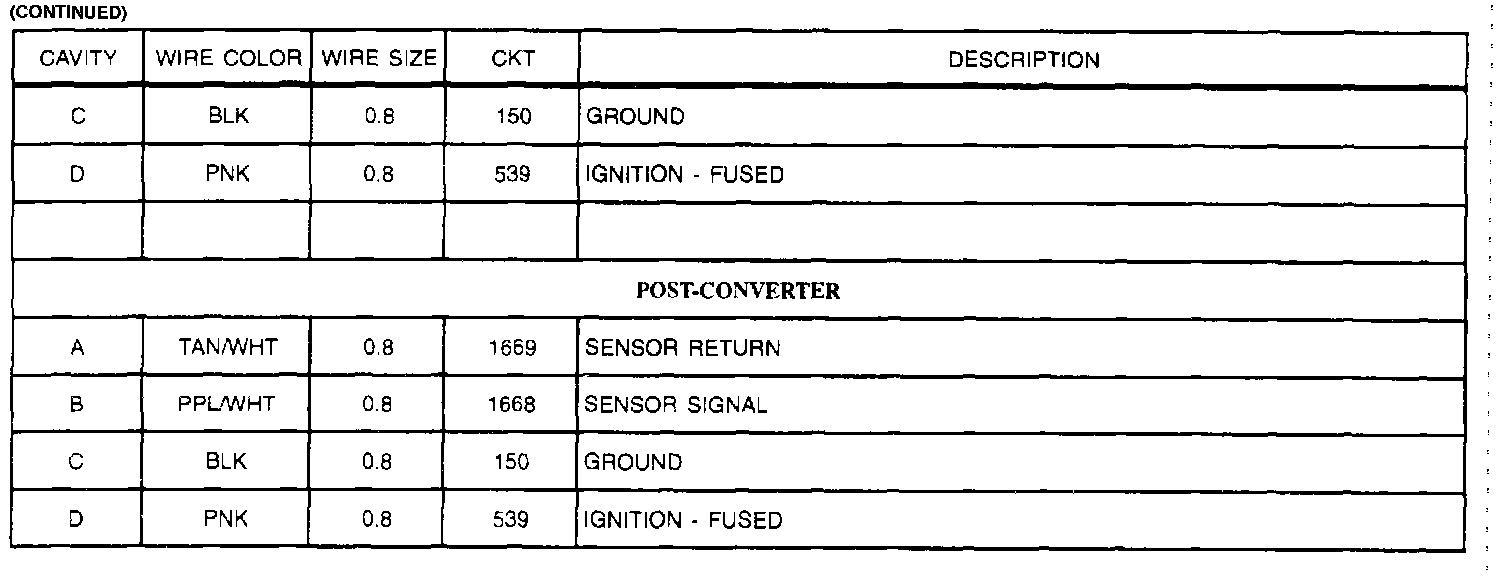

Heated Oxygen Sensor (Part 2 Of 2):
