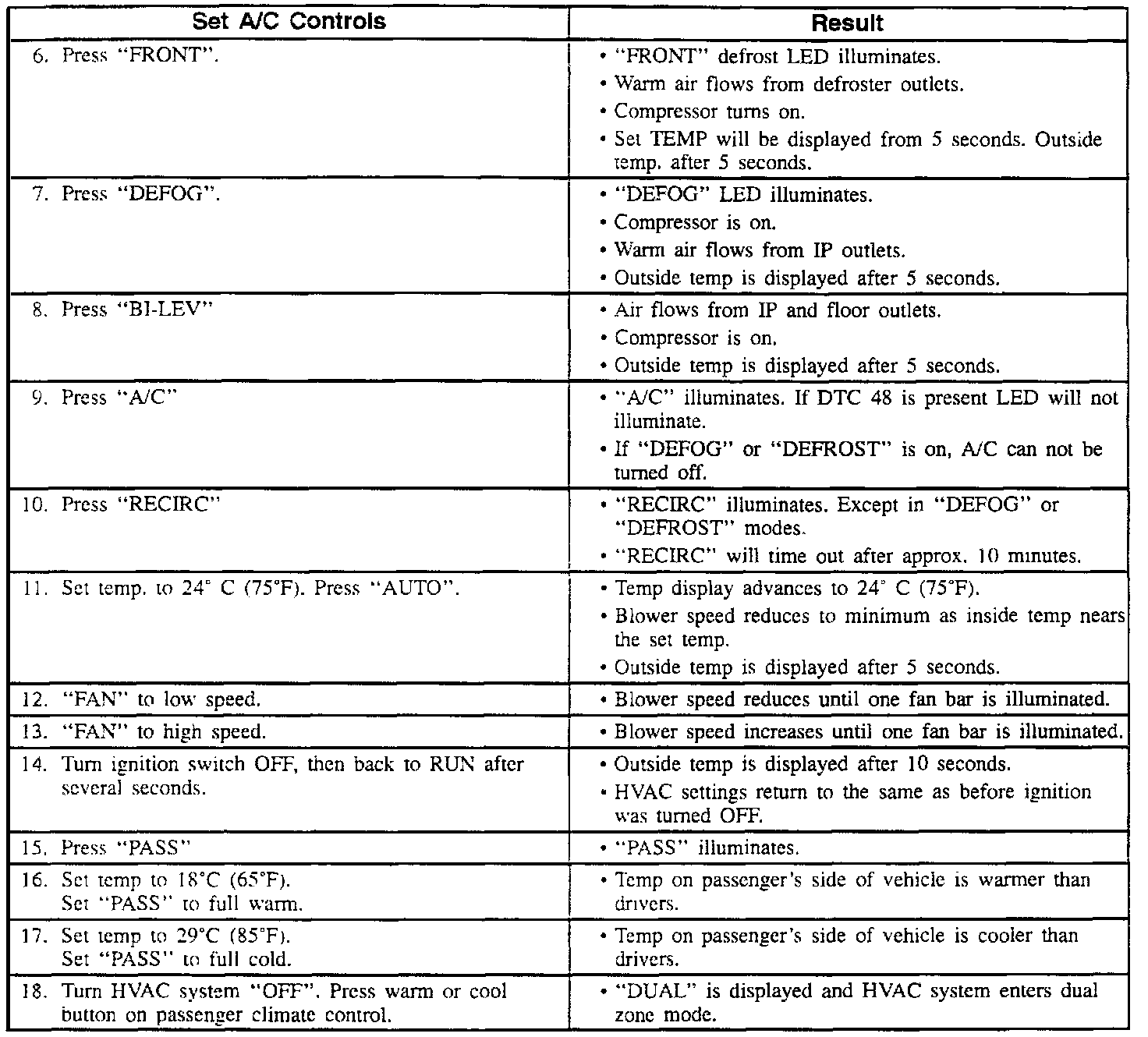

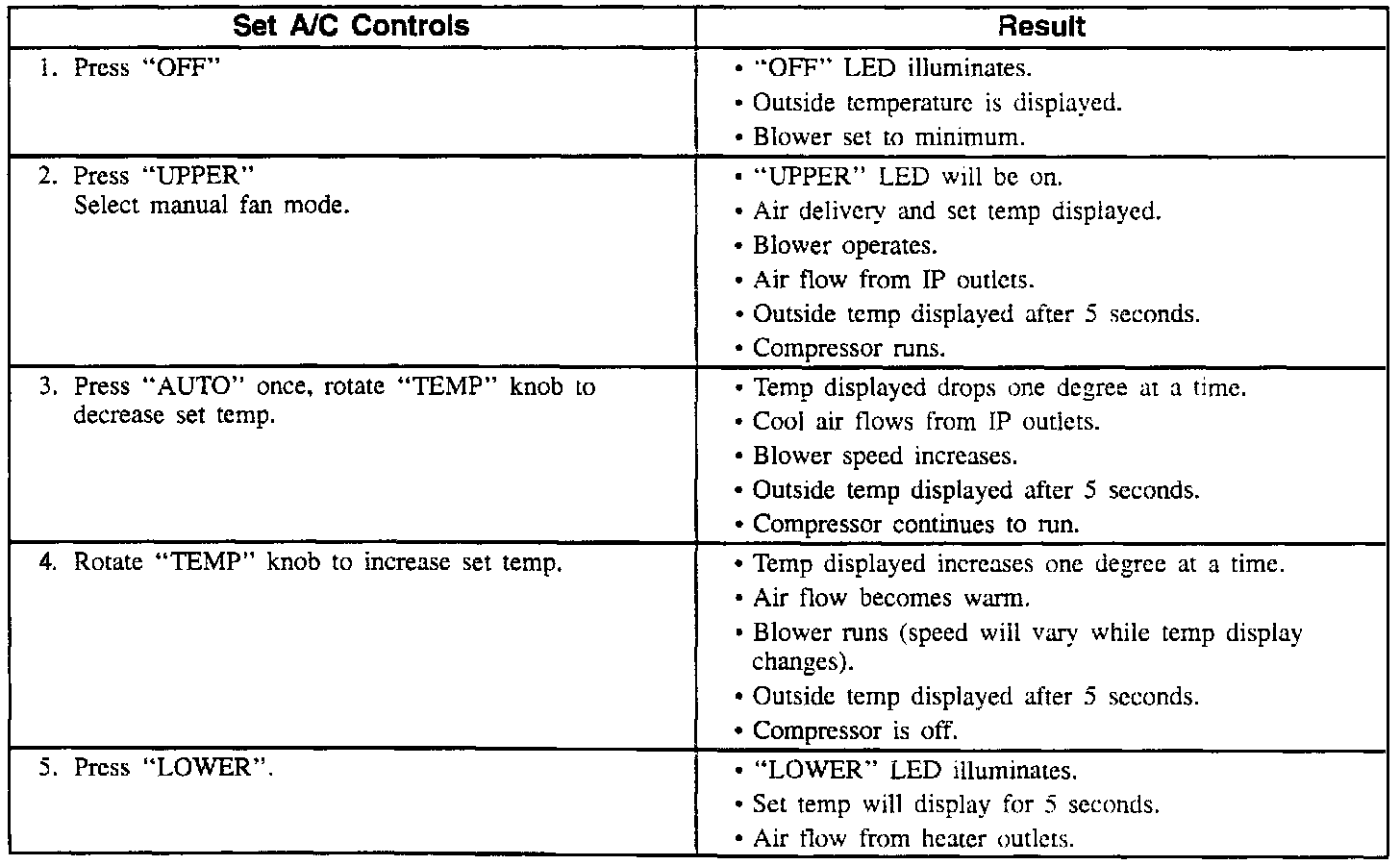

System Response Chart

Description:

Description:

^ Engine warm and running at idle.

^ Temperature outside vehicle at least 8°C (48°F).

NOTE:

1. If engine was recently running, a purge delay of approximately 20 seconds may be encounter before a selected mode is activated. This delay is normal and is designed to prevent windshield fogging.

2. To prevent windshield frosting during cold start up and cool outside temperature, system delays selected operation modes until engine is warm (except when defrost is selected).
