I/P Fuse Block

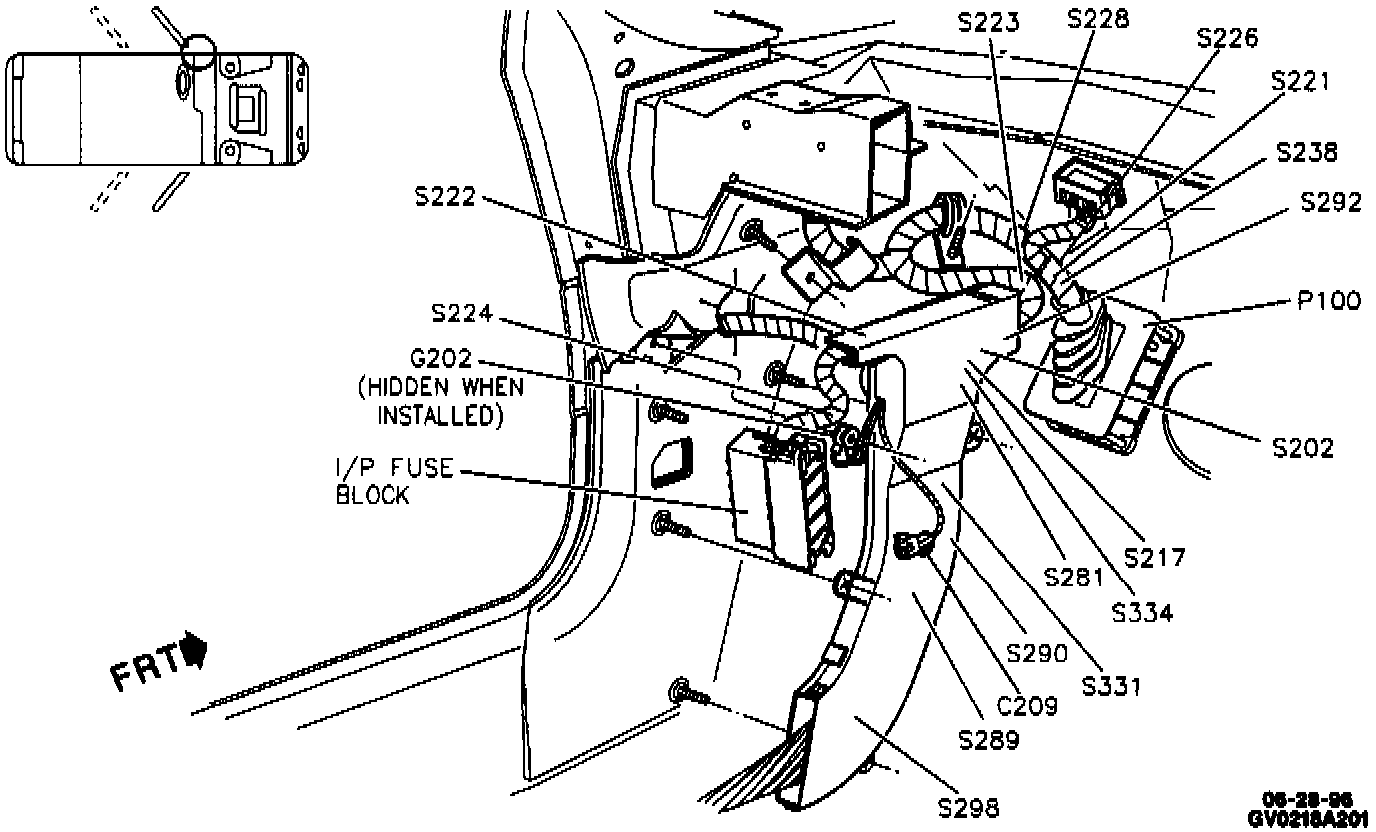

LH Front Of Passenger Compartment, Attached To Door Hinge Pillar:



Rear Of Passenger Compartment, Under Rear Seat Cushion:
