Home >> Oldsmobile >> 1997 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2 (Clear) >> Pin Information >> Pins 20-54

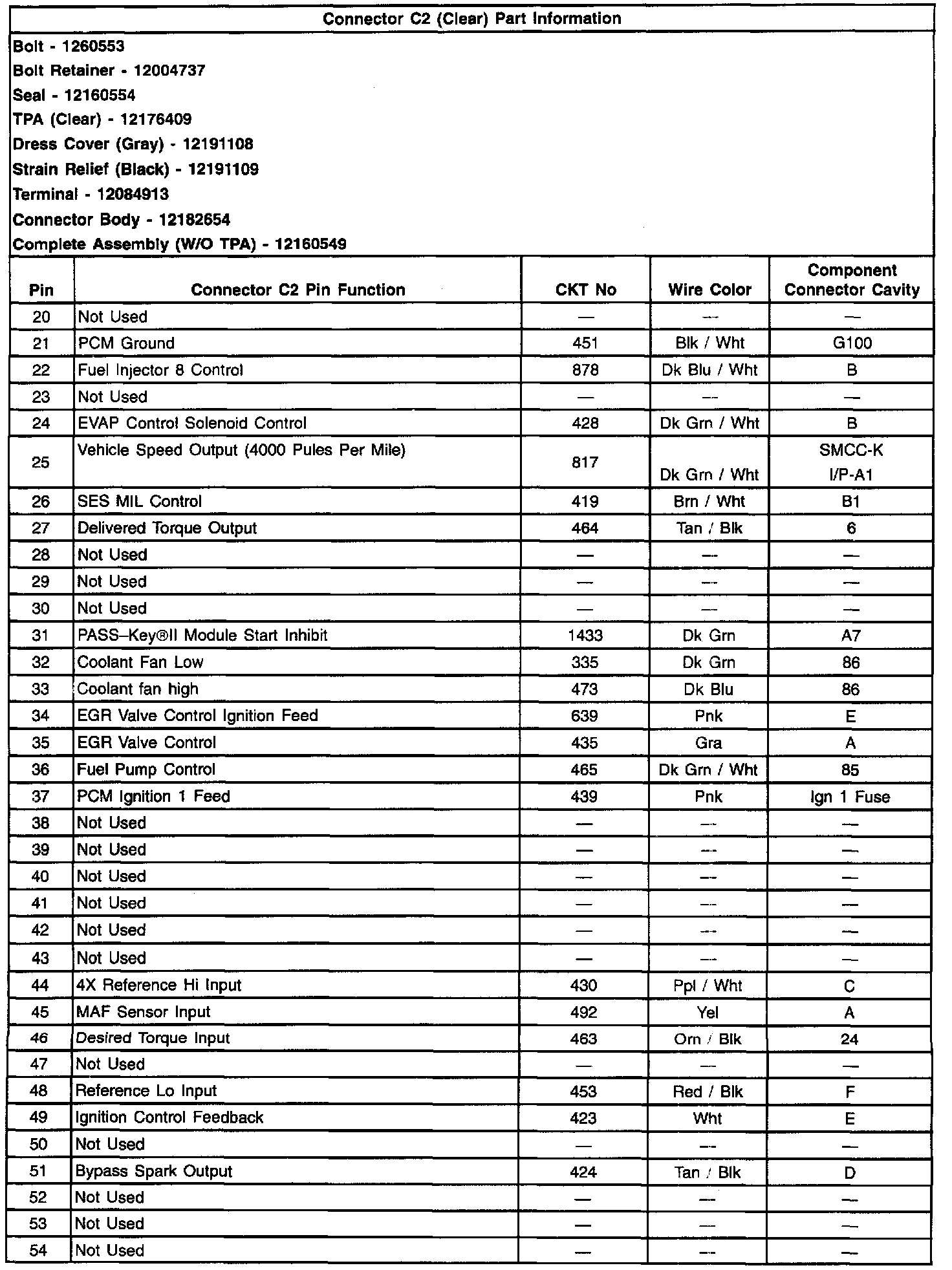

Pins 20-54
