Home >> Oldsmobile >> 1997 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Lower

Lower

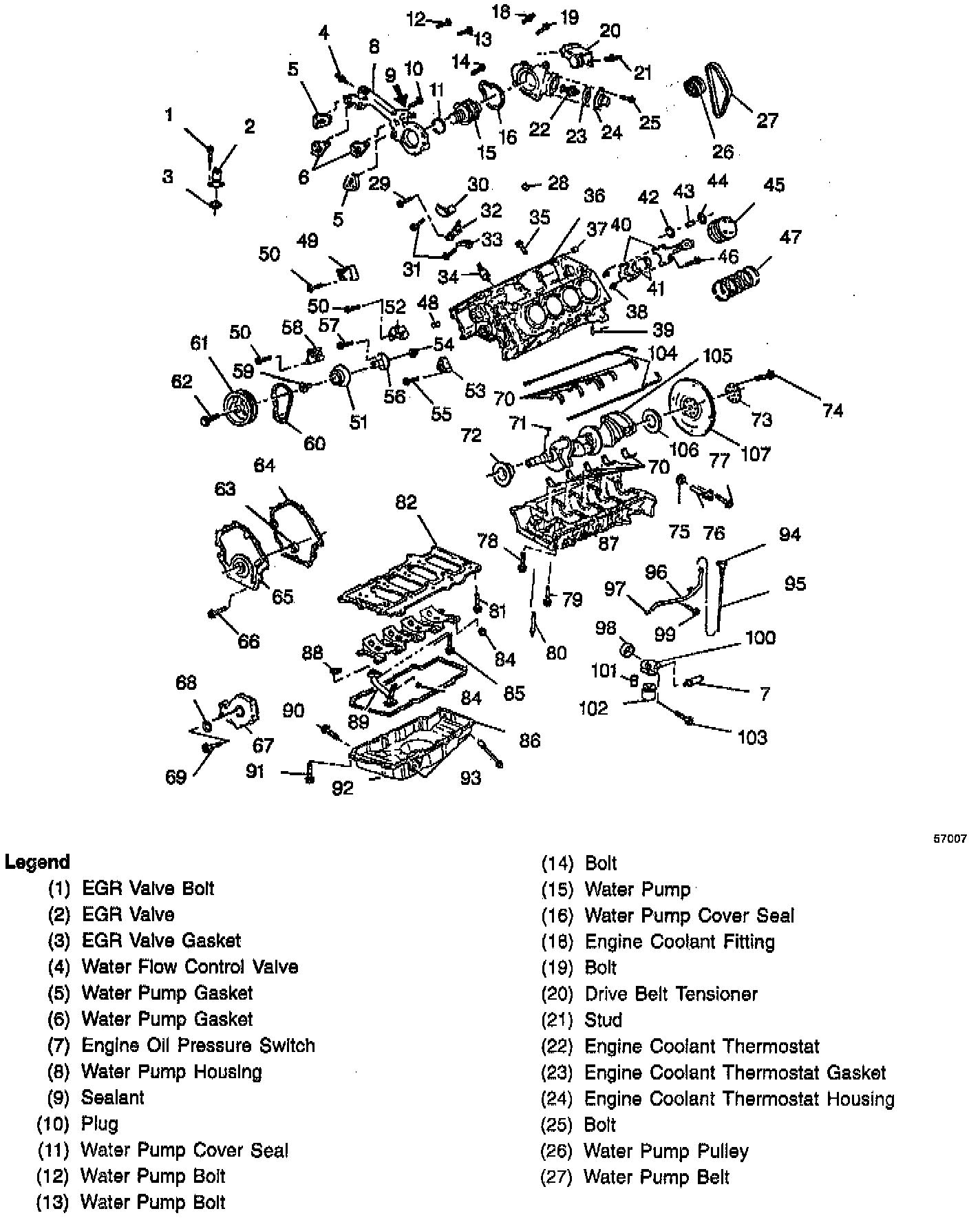

Part 1 0f 2:

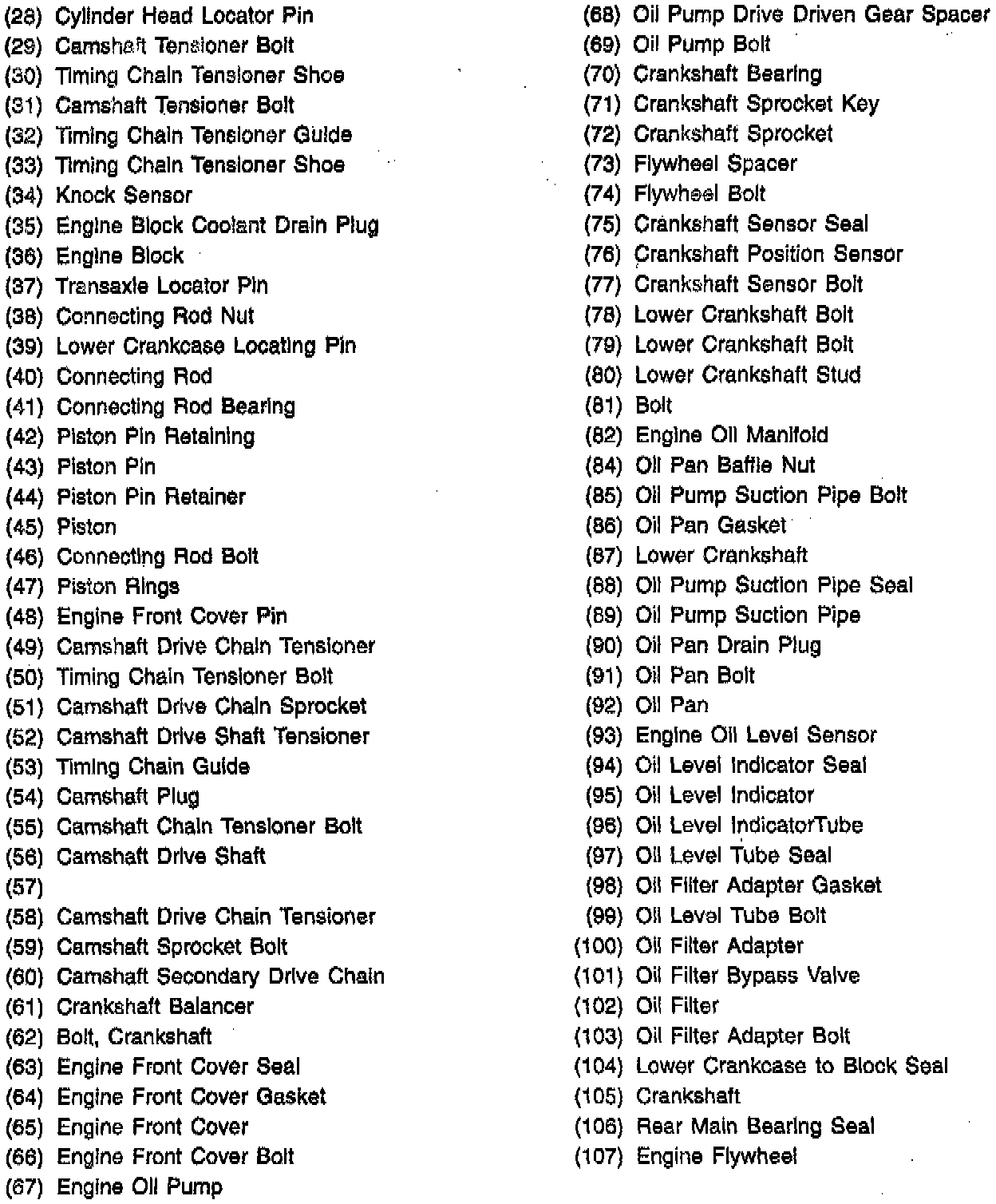

Part 2 Of 2:
