Ignition Module Installation

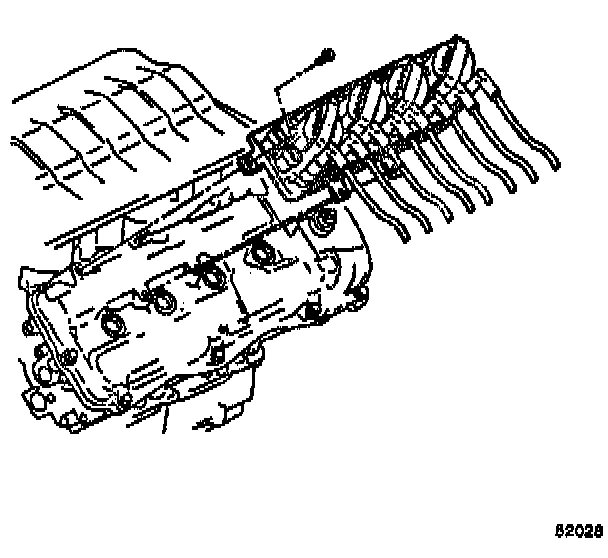

1. Position the ignition module on the right camshaft cover.





2. Install the ignition module retaining bolts. Tighten the ignition module retaining bolts to 12 Nm (106 inch lbs.).
3. Connect all the spark plug wires to the spark plugs.
4. Secure the left bank wires in the retaining features formed into the intake manifold.

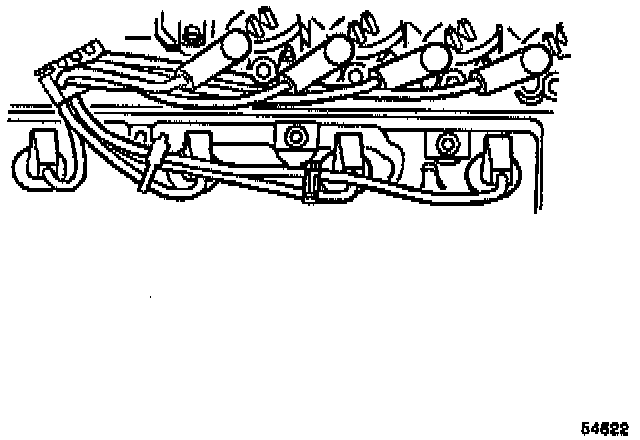

5. The right bank wires must be routed as shown to prevent possible misfires.
