Purge Flow Sensor: Service and Repair

REMOVAL PROCEDURE

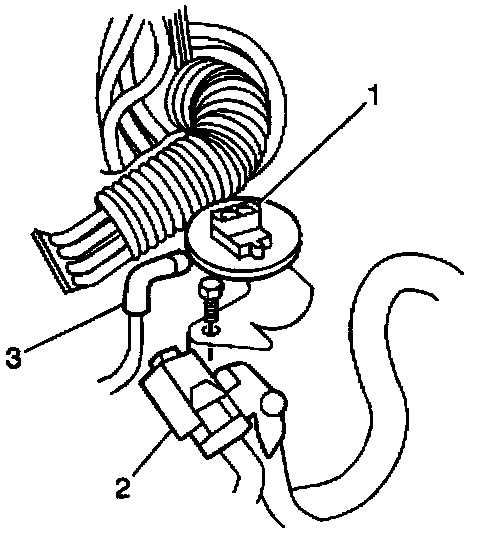

1. Disconnect the EVAP vacuum switch vacuum hose (3).
2. Remove one bolt.
3. Remove the EVAP vacuum switch (1).
4. Disconnect the EVAP vacuum switch electrical connector.

INSTALLATION PROCEDURE
1. Connect the EVAP vacuum switch electrical connector.
2. Install the EVAP vacuum switch.
3. Install one bolt.
Tighten
^ Bolt to 12 Nm (106 lb. in.).
4. Reconnect the EVAP vacuum switch vacuum hose.
