Fastener Tightening Specifications - Main Bearing

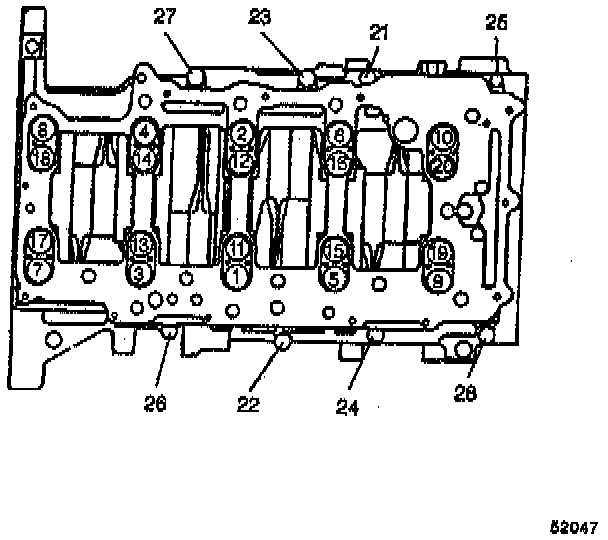

Tighten the main bearing bolts to 20 Nm + 65° (15 ft. lbs.) + 65° in the proper sequence.

Tighten the upper-to-lower crankcase the bolts to 30 Nm (22 ft. lbs.).
