Home >> Oldsmobile >> 1997 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Head Assembly >> System Specifications >> Thread Repair Specifications >> Intake Face of the Cylinder Head

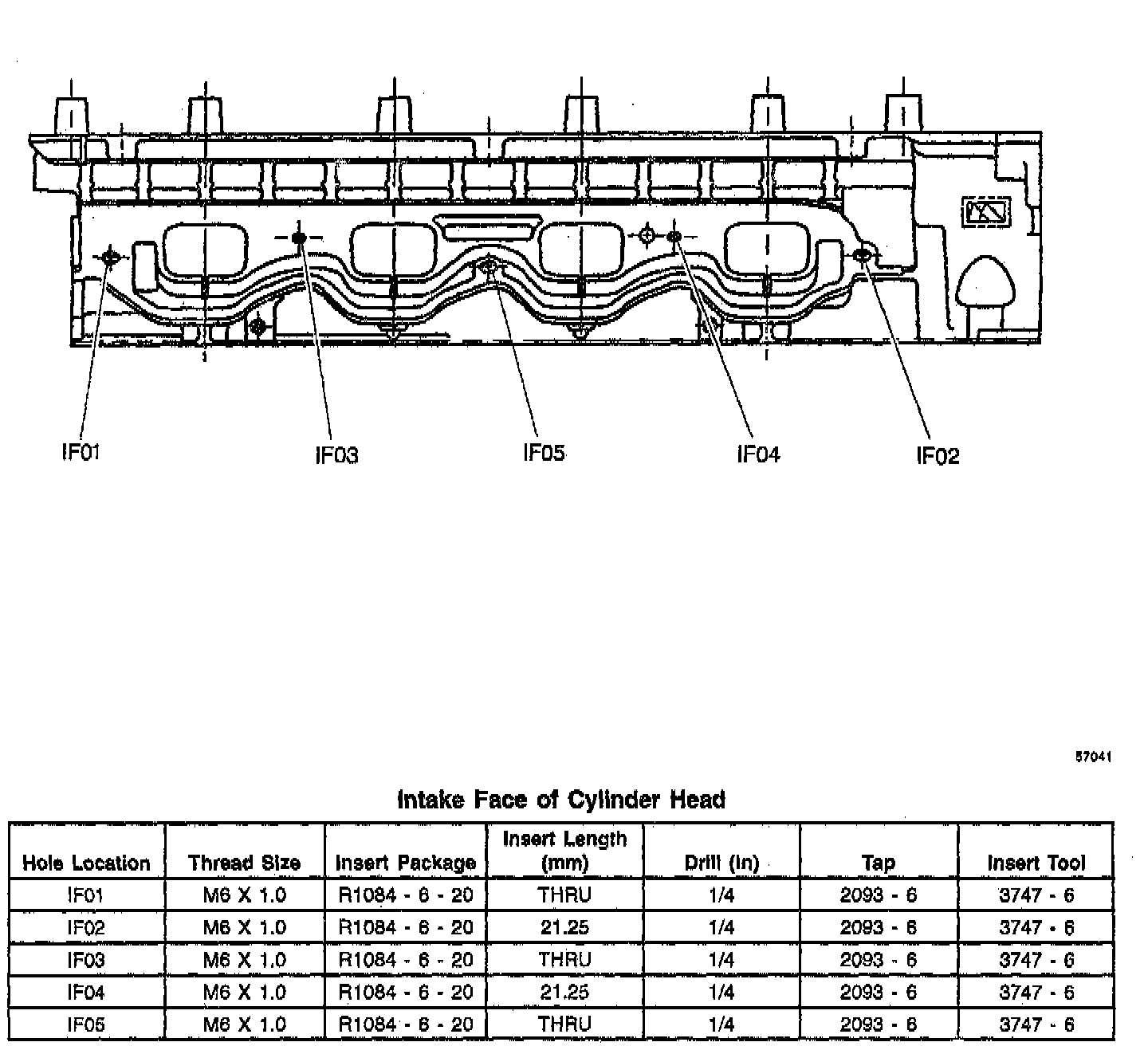

Intake Face of the Cylinder Head
