Home >> Oldsmobile >> 1997 >> Bravada V6-4.3L VIN W >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Fitting HVAC >> Locations

Compressor Fitting HVAC: Locations

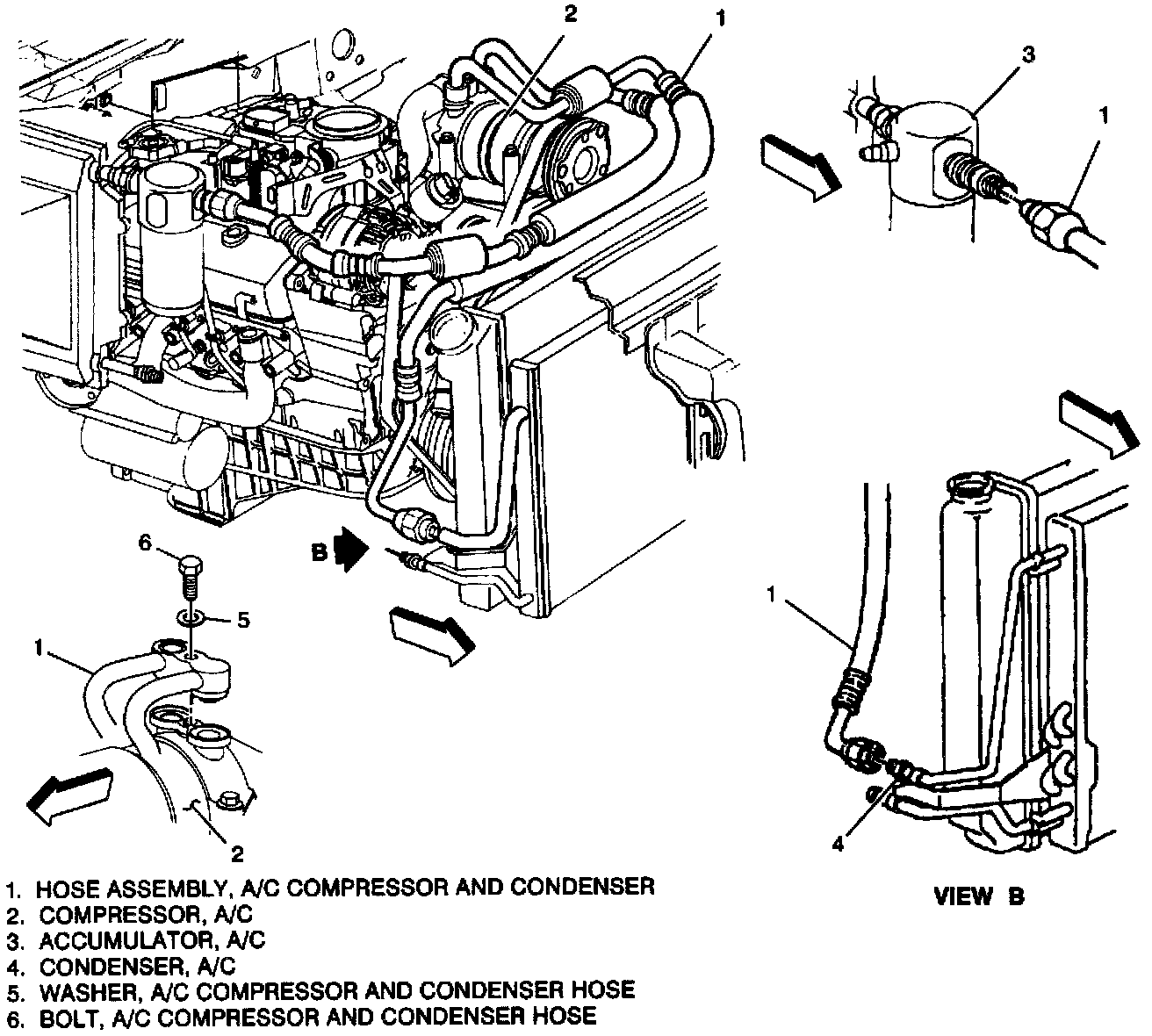

Compressor And Condenser Hose Routing:
