Vehicle Lifting: Service and Repair

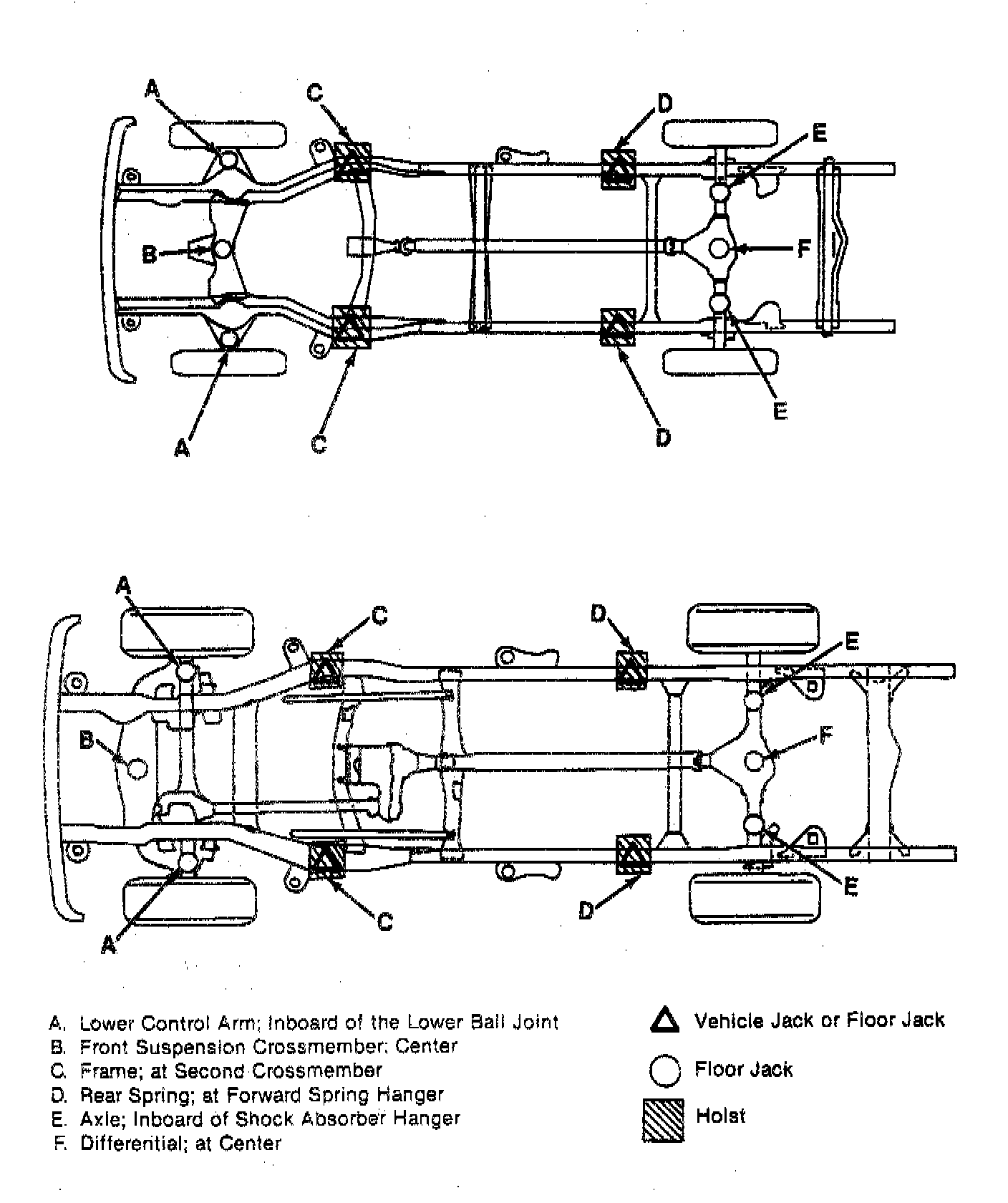

GENERAL VEHICLE LIFTING AND JACKING





CAUTION: To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle at the opposite end from which components are being removed. The additional support will reduce the possibility of the vehicle falling off the hoist. When removing major components from the vehicle while the vehicle is on a hoist, the vehicle frame should be chained to the hoist pads at the same end as the removed components to prevent tip-off. Failure to follow these precautionary measures could result in vehicle damage, serious personal injury or death.

CAUTION: To help avoid personal injury, always use jackstands when working on or under any vehicle that is supported only by a jack.

NOTICE: When jacking or lifting a vehicle, make sure that the lift pads do not contact the catalytic converter, brake lines, brake cables, or fuel lines. This contact may result in damage or unsatisfactory vehicle performance.
