Pinout Description

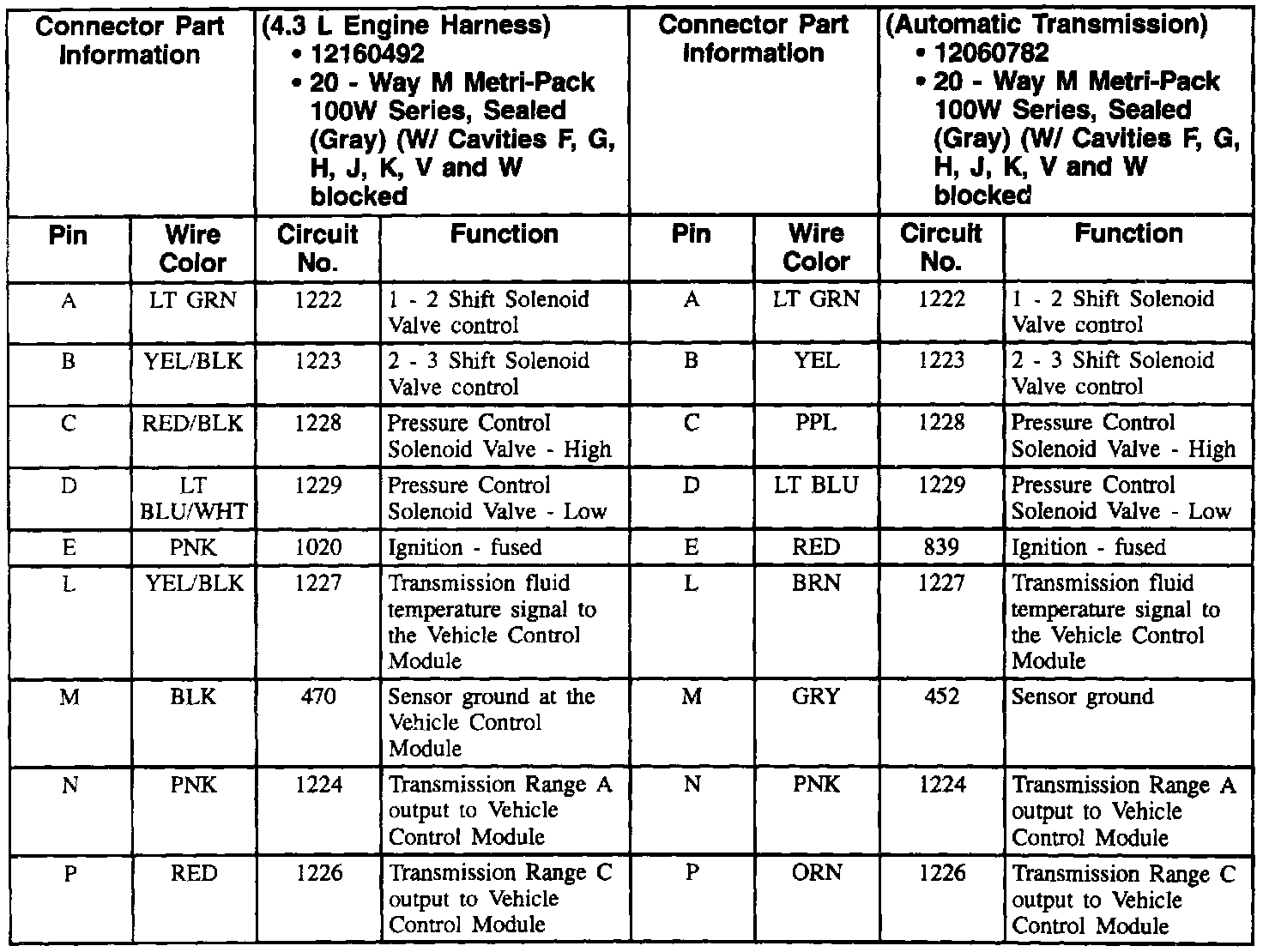

In-Line Connector: C175 (Automatic Transmission) (Part 1 Of 2):

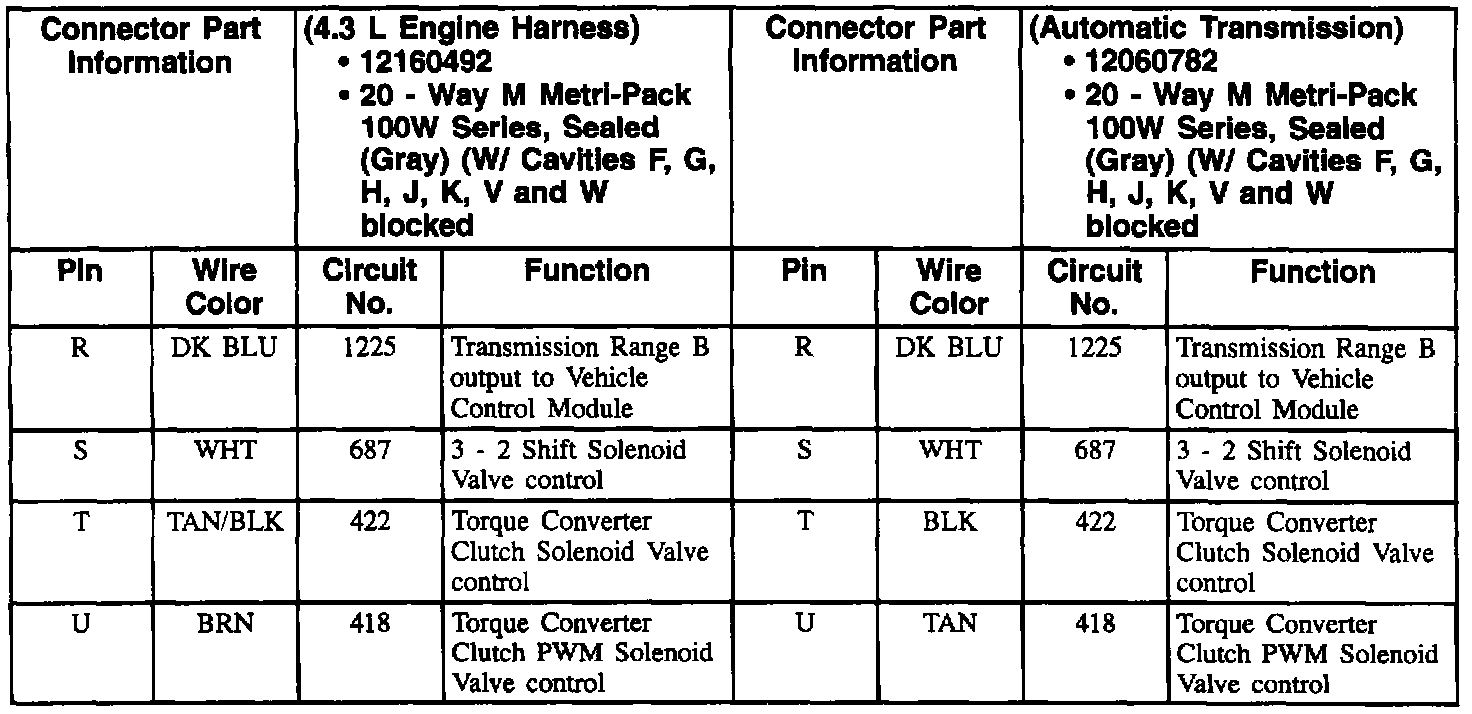

In-Line Connector: C175 (Automatic Transmission) (Part 2 Of 2):
