Front Camber Adjustment

Important: When camber adjustment is necessary, refer to FRONT SUSPENSION for instructions on modifying the front strut.

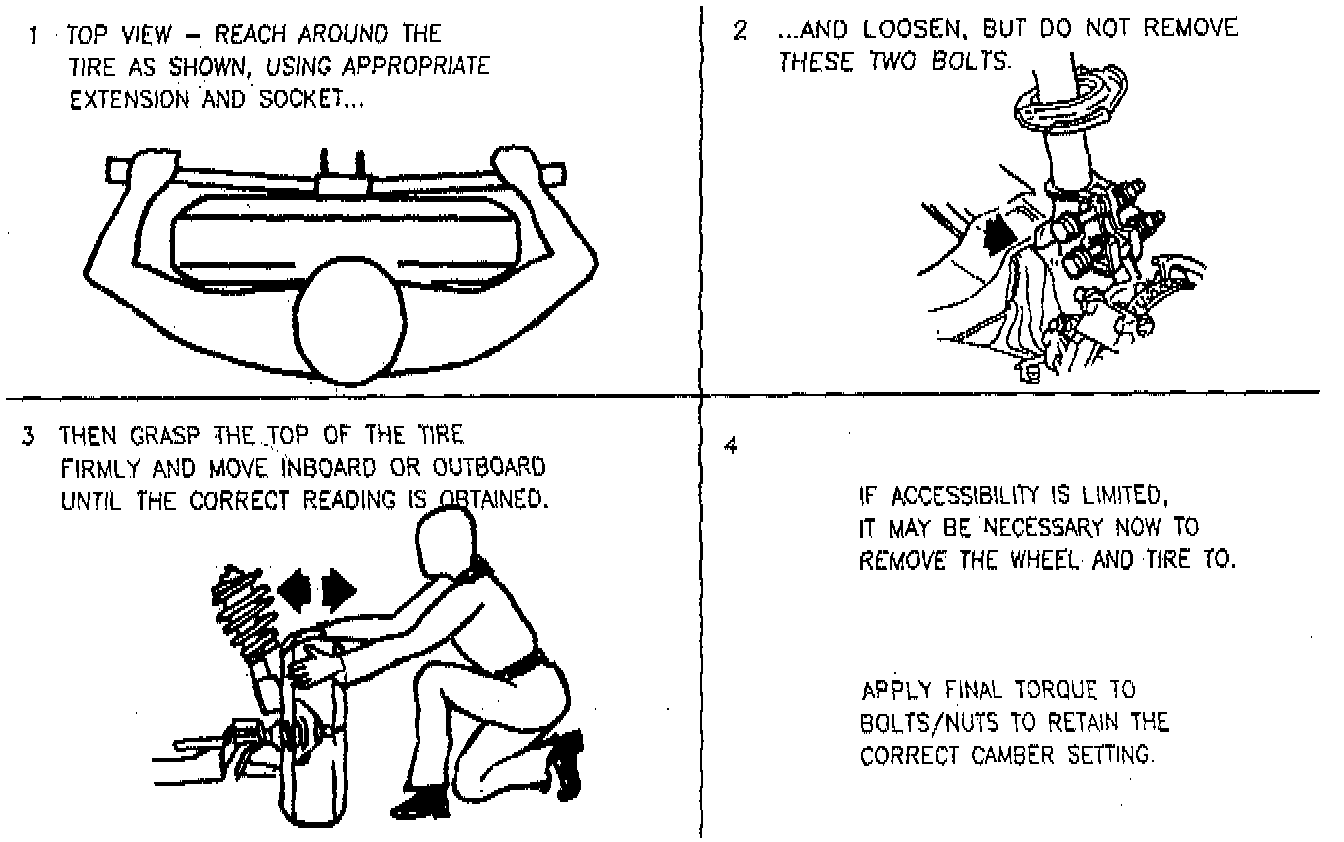

DISASSEMBLE
^ Loosen both strut to knuckle nuts just enough to allow movement.
^ Adjust camber to specification by moving top of wheel in or out.
^ Tighten strut to knuckle nuts to 180 Nm (133 ft. lbs.).
