Front Toe Adjustment
DISASSEMBLE
1. Be sure steering wheel is set in a straight ahead position within +/- 5 °.

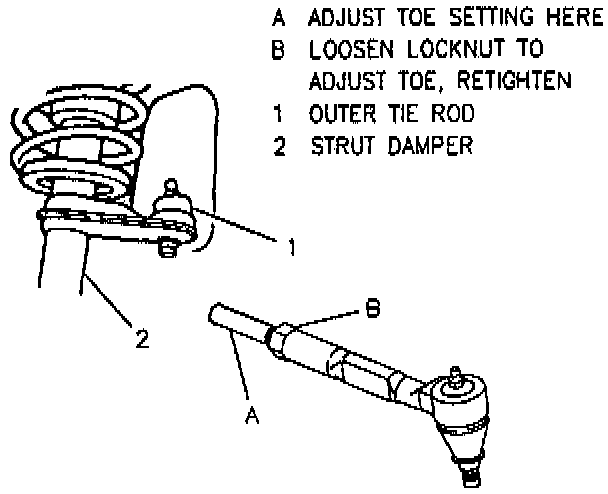

2. Loosen jam nut.
^ Adjust toe to specification by turning adjuster.
^ Tighten jam nut to 210 ° rotation after 10 Nm (89 inch lbs.).
DISASSEMBLE
1. Be sure steering wheel is set in a straight ahead position within +/- 5 °.
2. Loosen jam nut.
^ Adjust toe to specification by turning adjuster.
^ Tighten jam nut to 210 ° rotation after 10 Nm (89 inch lbs.).
