Door Locks: Service and Repair

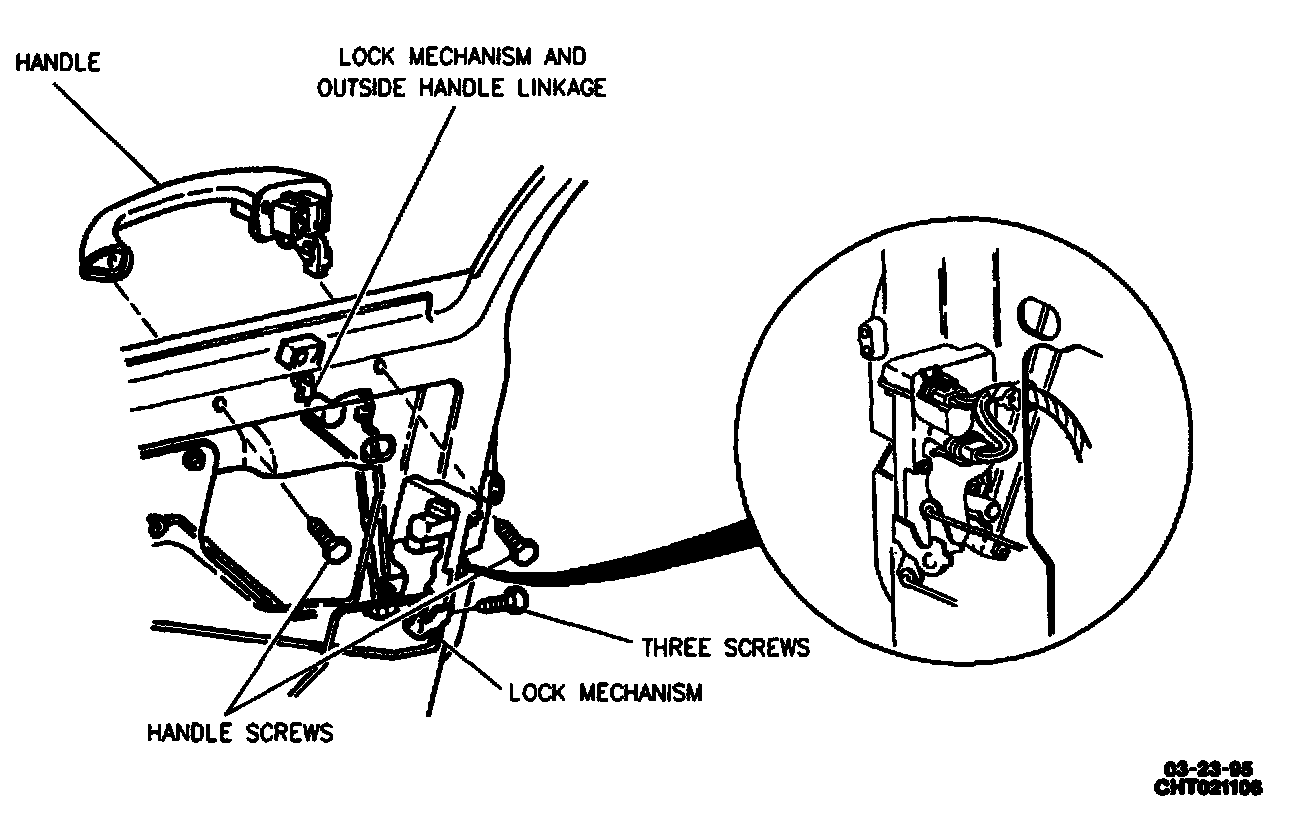

Lock Mechanism & Outside Door Handle:
Lock Mechanism & Outside Door Handle:
Remove or Disconnect
1. Negative battery cable.
2. Trim panel and water deflector.
3. Lock rods.
4. Cut out and discard lock rod clips.
5. Electrical connectors.
6. Three screws.
7. Lock mechanism.
Install or Connect
1. New lock rod clips to lock rods.
2. Lock mechanism.
3. Three screws.
4. Electrical connectors.
5. Lock rods.
6. Negative battery cable.
7. Trim panel and water deflector.
