Unit Overhauling

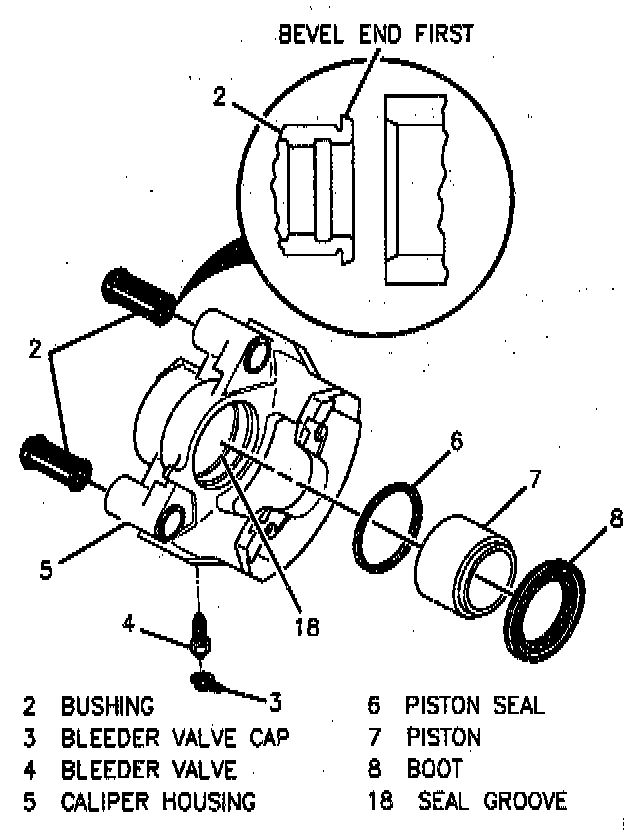

Caliper Component Assembly:

REMOVE OR DISCONNECT
1. Remove caliper from vehicle.
2. Bushings. Inspect Bushings for nicks or cuts. Replace if damaged.

CAUTION: Do not place fingers in front of the caliper piston(s) in an attempt to catch or protect it when applying compressed air. The piston(s) can fly out with force and could result In serious injury.

NOTE: Use clean shop towels to pad the interior of the caliper during piston removal.

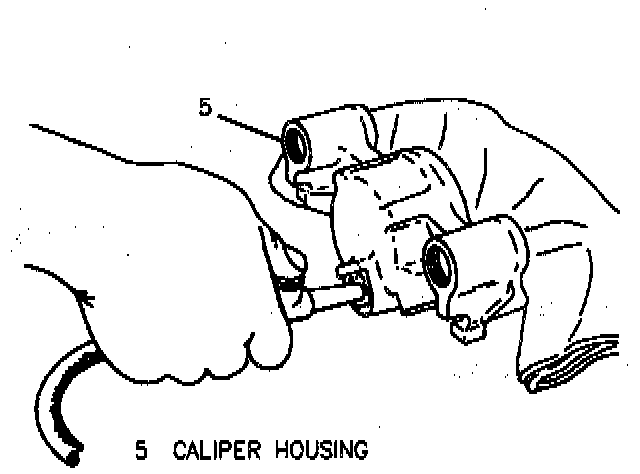

Removing Piston:

3. Piston, using compressed air into caliper inlet hole. Inspect Piston for scoring, nicks, corrosion, and worn or damaged chrome plating. Replace the piston if any of these are found.
4. Boot, being careful not to scratch housing bore.
5. Piston seal from seal groove in caliper bore, using a small plastic or wood tool. Do not use a metal tool because this may damage caliper bore or seal groove. Inspect Caliper bore and seal groove for scoring, nicks, corrosion, and wear. Use crocus cloth to polish out light corrosion. Replace caliper housing if corrosion in and around the seal groove will not clean off with crocus cloth.
6. Bleeder valve cap.
7. Bleeder valve from caliper. Clean All parts in clean, denatured alcohol. Dry with unlubricated compressed air. Blow out all passages in caliper housing and bleeder valve.

ASSEMBLE
1. Bleeder valve. Tighten Bleeder valve to 13 Nm (110 inch lbs.).
2. Bleeder valve can.
3. Lubricated new piston seal into caliper bore groove. Make sure seal is not twisted.
4. Lubricated boot onto piston.
5. Piston and boot into bore of caliper; push piston to bottom of bore.

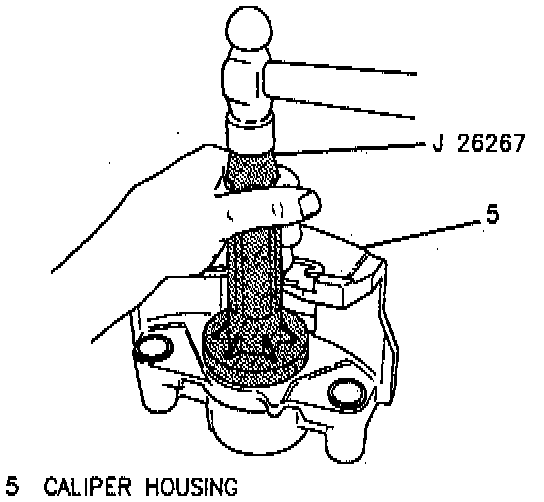

Installing And Seating Boot:

6. Using J 26267, seat boot in the caliper housing.
7. Bushings.
a. Lubricate beveled end of bushing with silicone grease.
b. Pinch bushing and install beveled end first.
c. Push bushing through housing mounting bore.
8. Caliper onto vehicle.
