LSS V6-3.8L SC VIN 1
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Antilock Brakes / Traction Control Systems
>>
Traction Control Module
>>
C1
>>
Pinout Description
Pinout Description

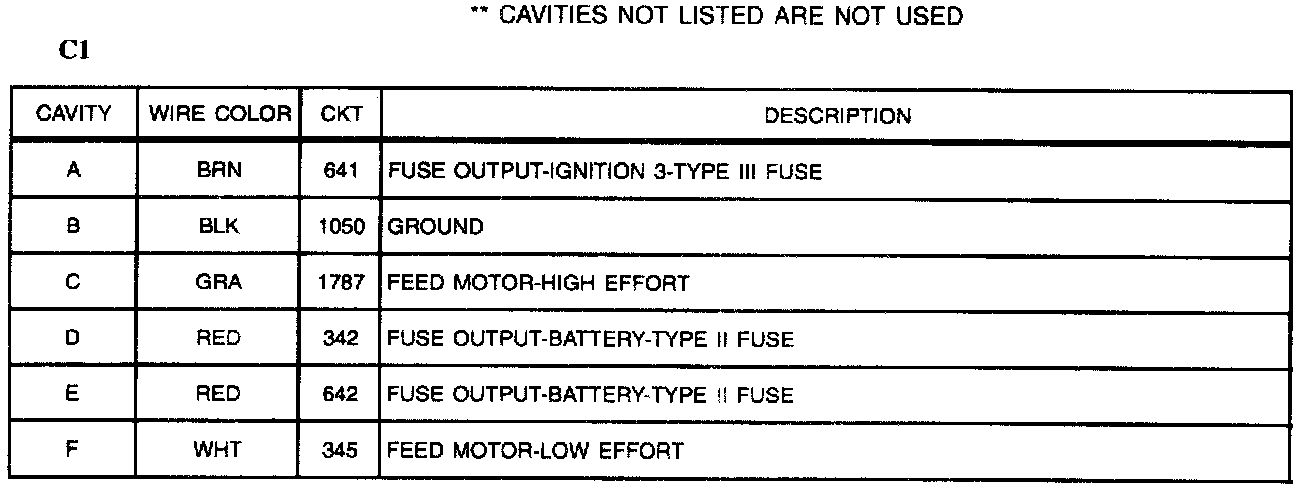

Electronic Brake (And Traction) Control Module (EBCM/EBTMC): C1:
