Speaker

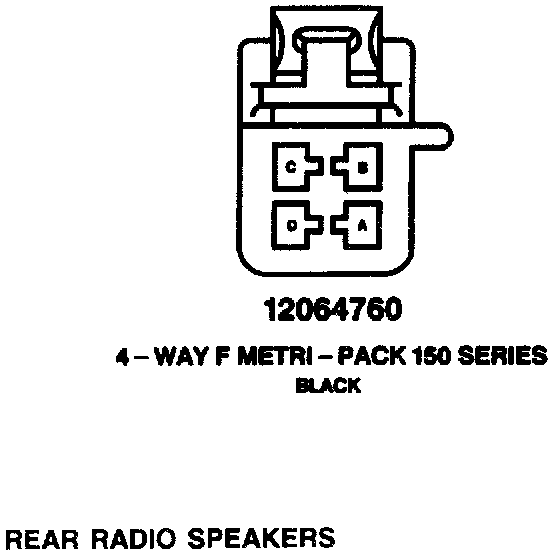

Rear Radio Speakers:

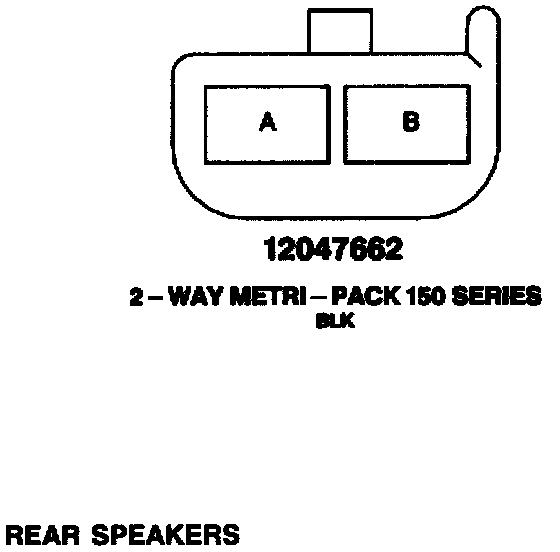

Rear Speakers:

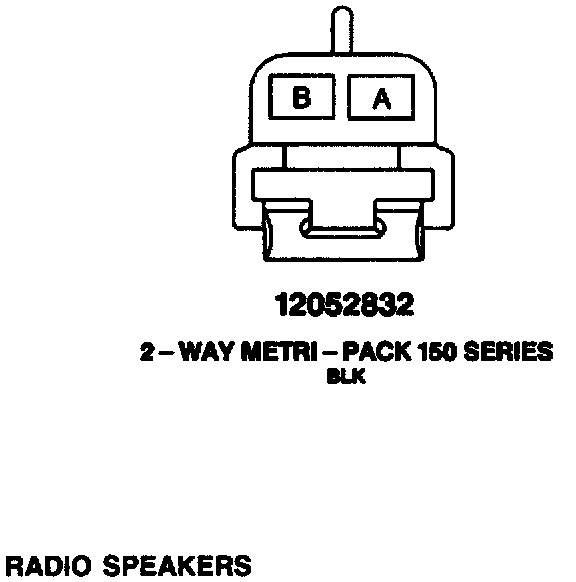

Radio Speakers:

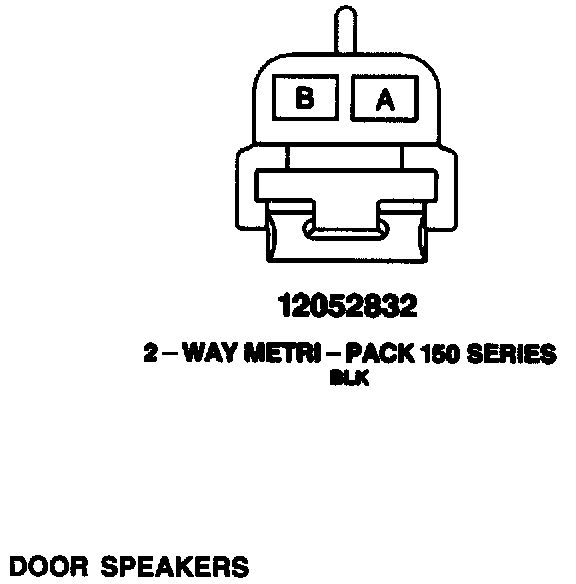

Door Speakers:

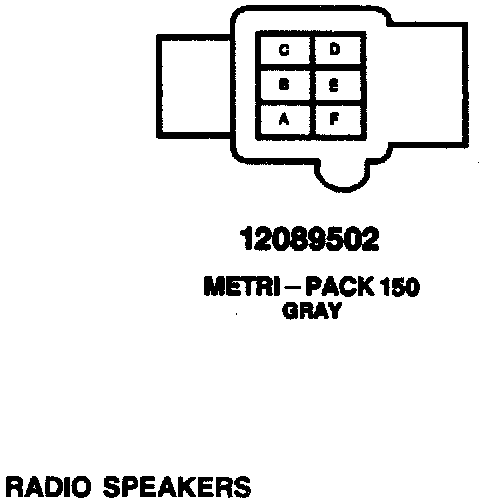

Radio Speaker:

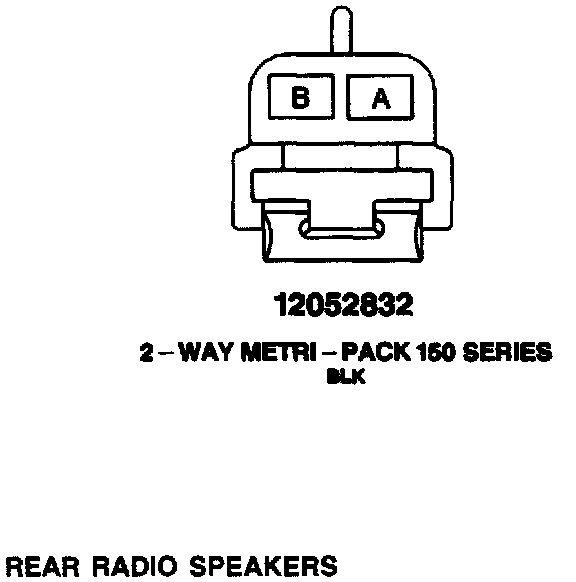

Rear Radio Speakers:

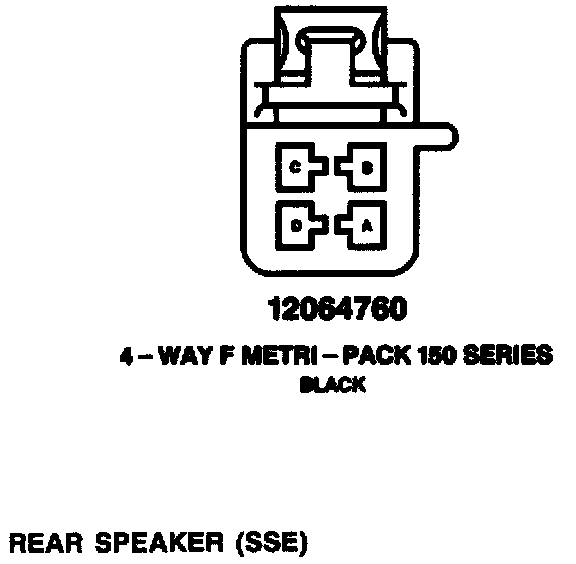

Rear Speaker:

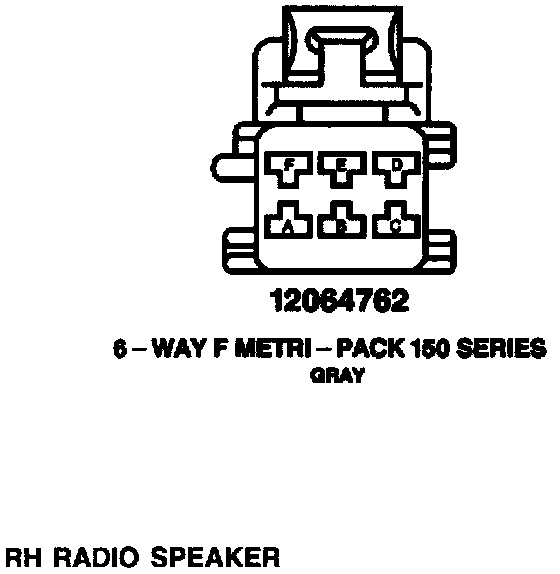

RH Radio Speaker:
