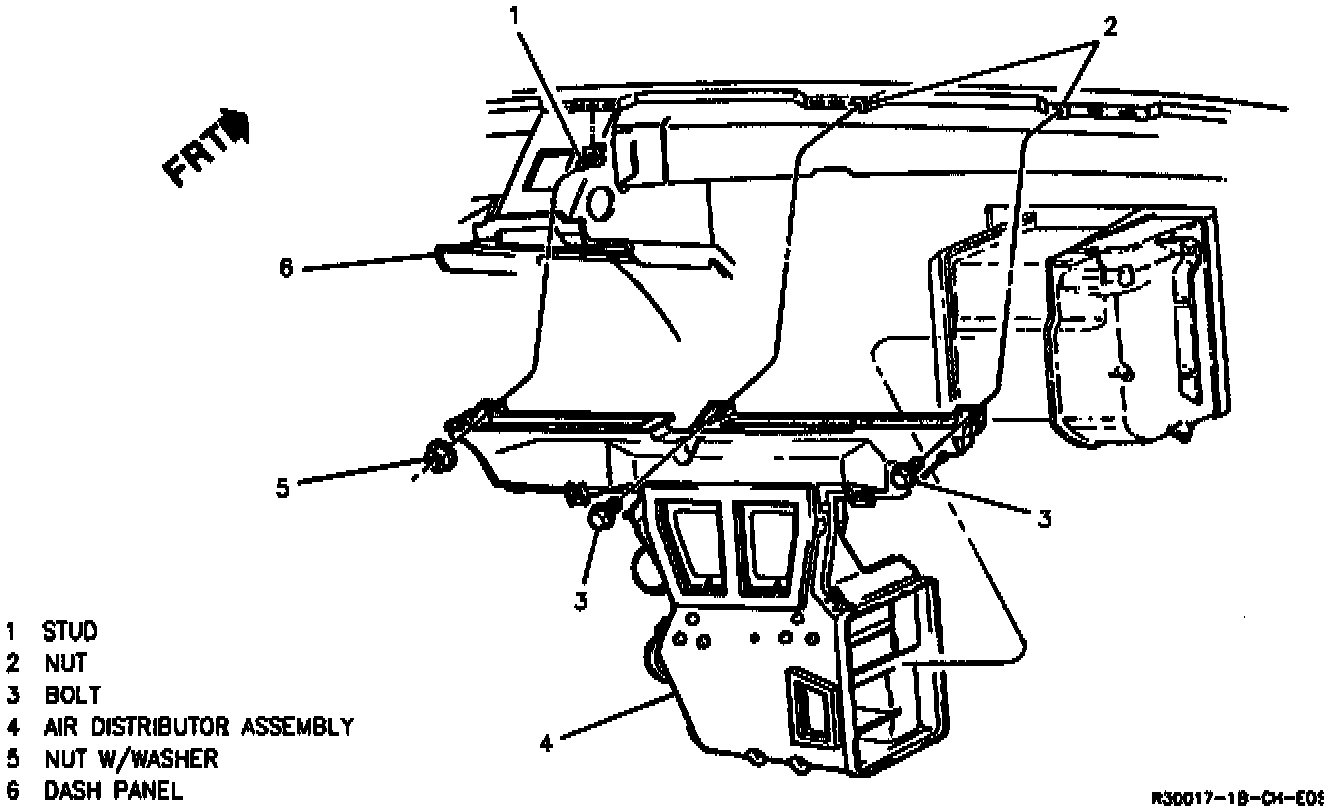

Air Distributor Assembly

Air Distributor Assembly:

Remove or Disconnect

1. I/P assembly.
2. Center air distributor.

Install or Connect

1. Center air distributor.

Tighten
- Screws to 1.5 N.m (13 lb. in.).

2. I/P assembly.
