Blower Motor: Service and Repair

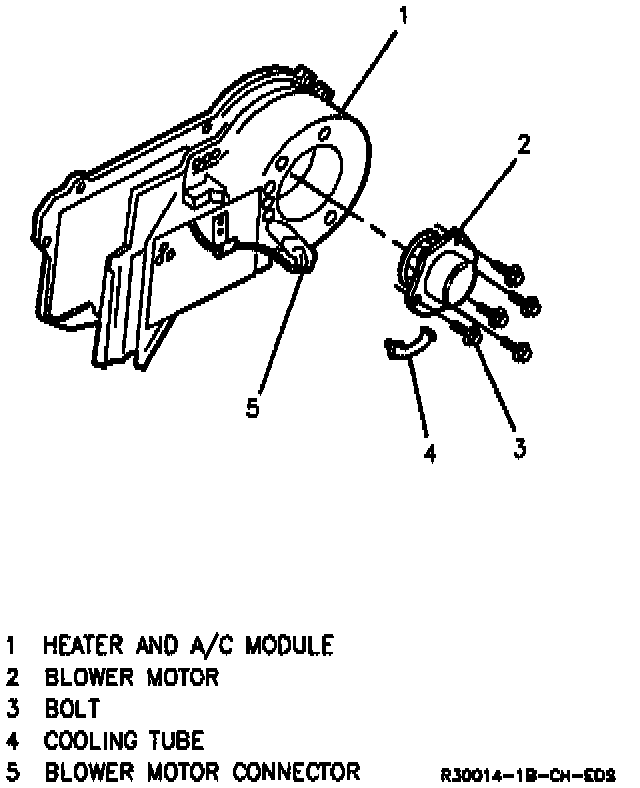

Blower Motor And Fan:






Remove or Disconnect

1. Nuts and cross brace bar.
2. Electrical connector from blower motor.
3. Cooling tube from blower motor.
4. Screws attaching blower motor to blower module assembly.
5. Blower motor.

Install or Connect

1. Blower motor.
2. Blower motor attaching screws.

Tighten
- Screws to 6 N.m (5 lb. in.).

3. Cooling tube to blower motor.
4. Electrical connector to blower motor.
5. Cross brace bar and nuts.

Tighten
- Nuts to 25 N.m (18 lb. ft.).
