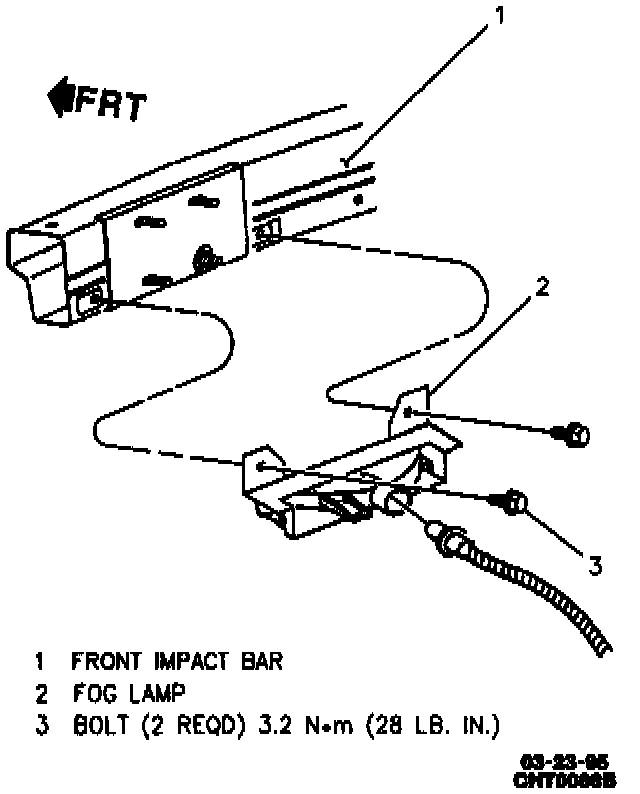

Fog/Driving Lamp: Service and Repair
Remove or Disconnect 1.
Connector from fog lamp.
2.
Bolts retaining fog lamp to impact bar.
3.
Fog lamp.
Install or Connect 1.
Fog Lamp.
2.
Bolts to retain fog lamp to impact bar.
Tighten ^
Bolts and nuts to
3.2 Nm (28 lb. in.). 3.
Connector to fog lamp.
