Switches

Power Door Lock Switch

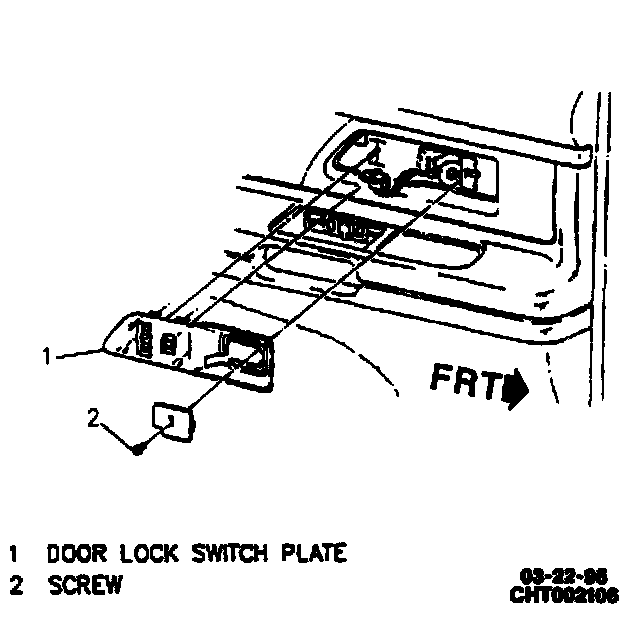

Door Lock Switch Plate:

Remove or Disconnect

1. Negative battery cable.
2. Screw.
3. Switch plate and unplug connector.

Install or Connect

1. Position lock switch plate and install connector.
2. Position lock switch plate into rim panel and secure with screw.
3. Negative battery cable.
