Trim Panel

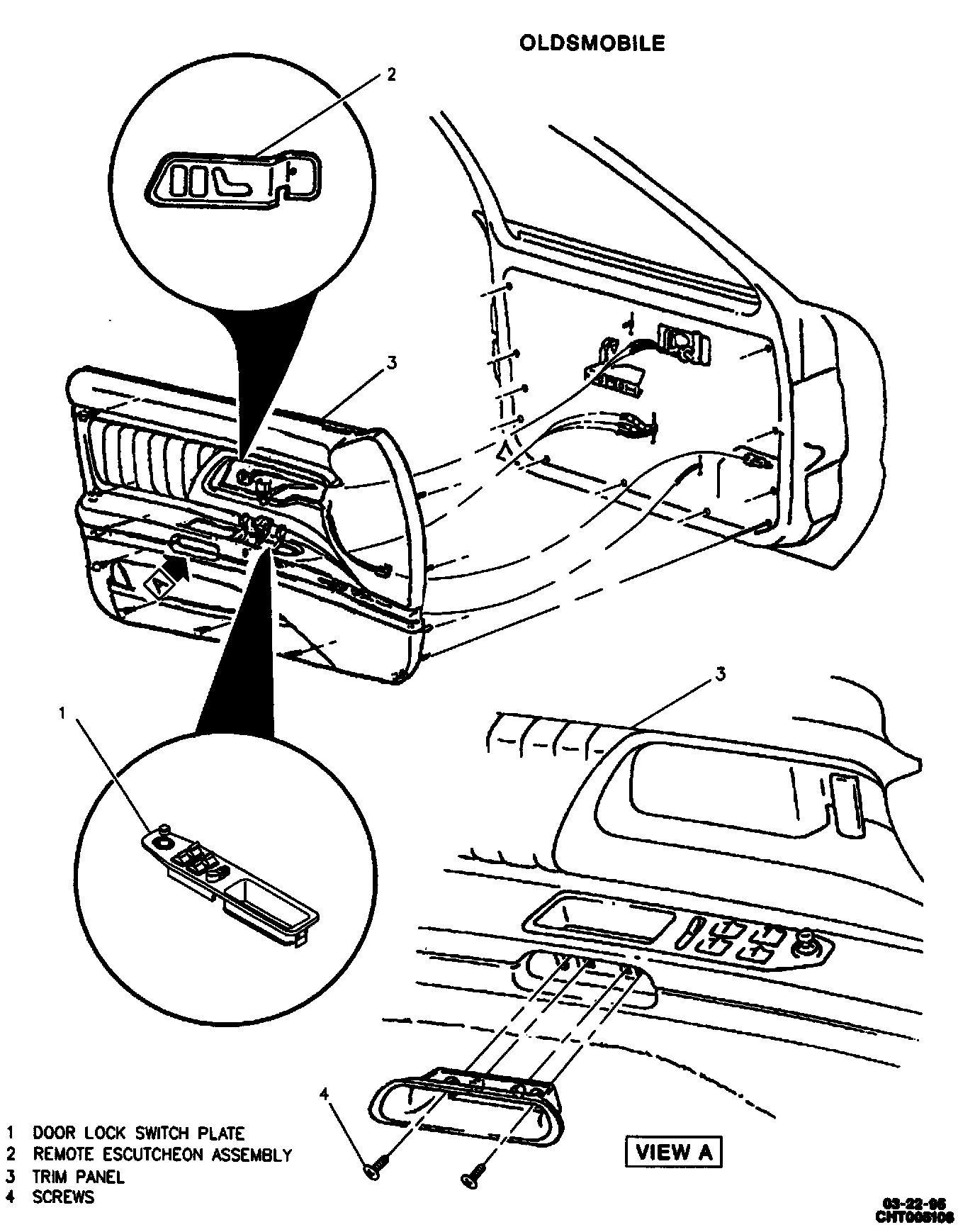

Front Door Trim Panel & Bezel Assembly:

Remove or Disconnect

1. Negative battery cable.
2. Two trim panel retaining screws.
3. Slide pull handle lower inboard to disengage from switch plate.
4. Switch plate.
5. Door lock switch plate.
6. Trim panel retainers and trim panel.

Install or Connect

1. Trim panel and retainers.
2. Armrest switch plate.
3. Pull handle lower to switch plate.
4. Two trim panel retaining screws and courtesy lamp.
5. Door lock switch plate.
6. Negative battery cable.
