Instrument Panel Cluster Replacement

I/P Cluster:

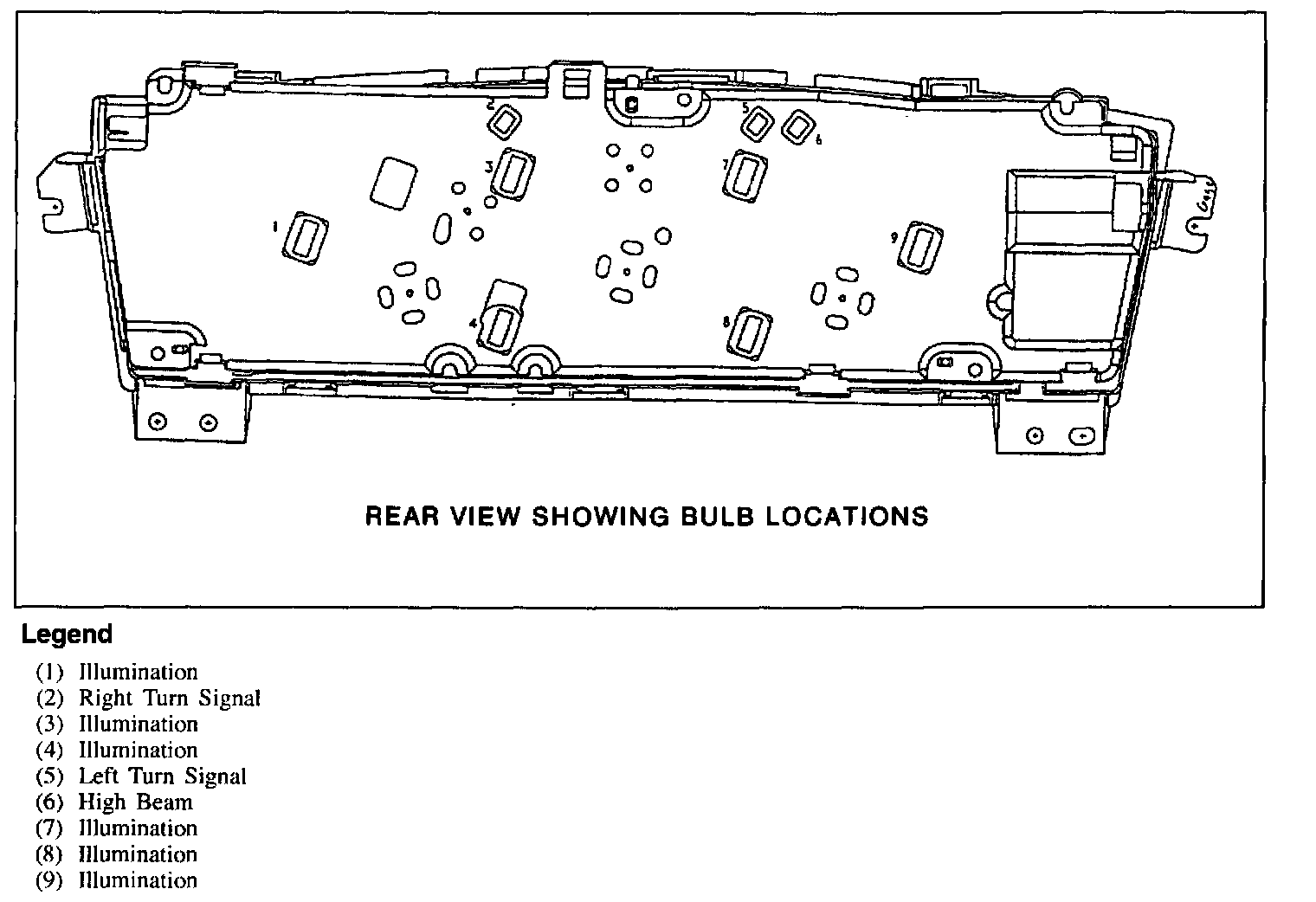

Rearview Of I/P Cluster:

I/P Cluster:

Rearview Of I/P Cluster:

I/P Cluster:

REMOVE OR DISCONNECT
1. I/P cluster trim plate. Refer to I/P Cluster Trim Plate Instrument Panel Cluster Trim Plate Replacement
2. Screws to I/P.
3. Electrical connector.
4. I/P cluster.

INSTALL OR CONNECT
1. I/P cluster.
2. Electrical connector.
3. Screws to I/P.

Tighten
^ I/P Cluster screws to 2 N.m (17 lb. in.)

4. I/P cluster trim plate. Refer to I/P Cluster Trim Plate.
