Fuse Block

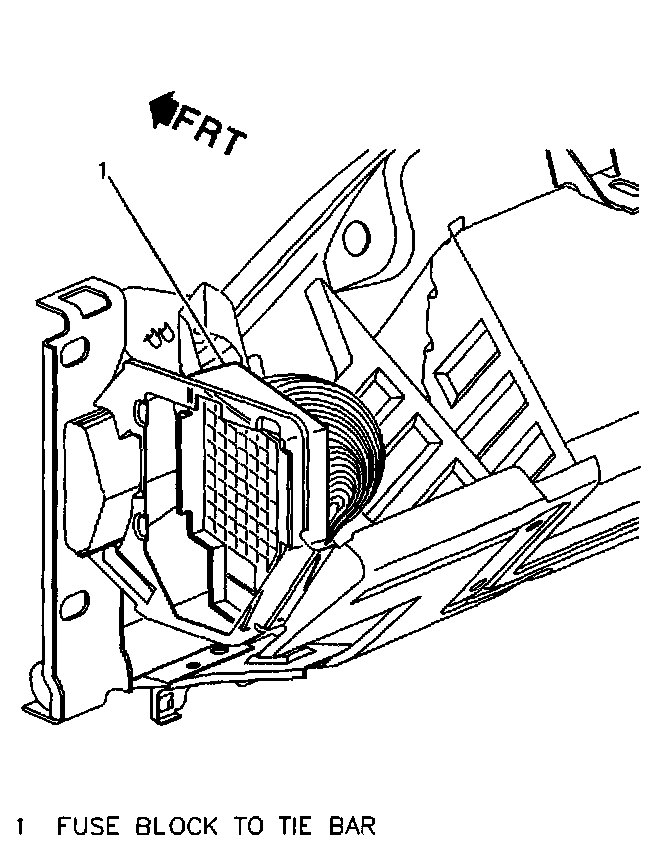

Fuse Block To Tie Bar:

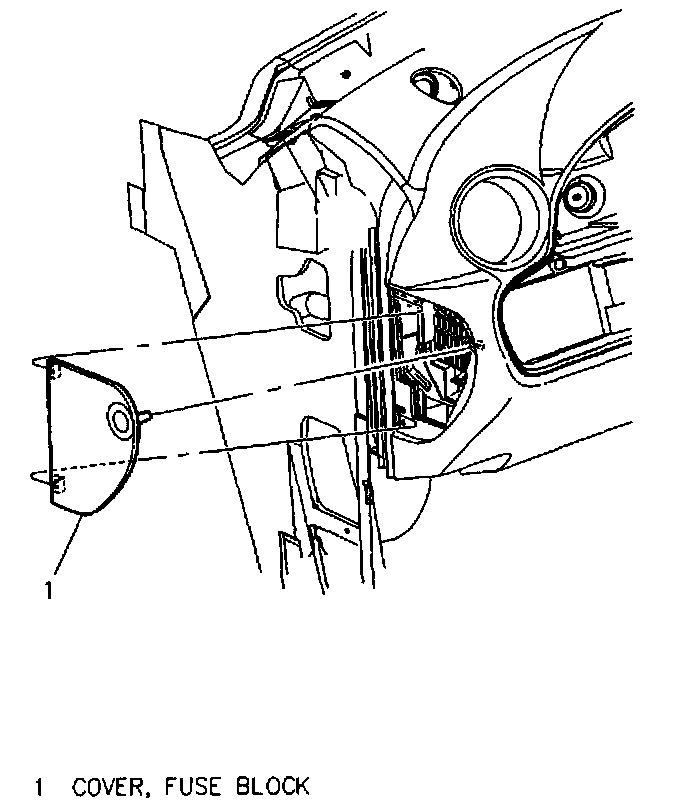

Fuse Block Cover:

Fuse Block:

REMOVE OR DISCONNECT
1. Left sound insulator. Refer to Left Sound Insulator. Service and Repair
2. Depress tang on left side of fuse block and pivot out of bracket.

INSTALL OR CONNECT
1. Depress tang on left side of fuse block and pivot out of bracket.
2. Left sound insulator. Refer to Left Sound Insulator.
