Achieva V6-3100 3.1L MFI VIN M
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>
Automatic Transaxle Control
Automatic Transaxle Control

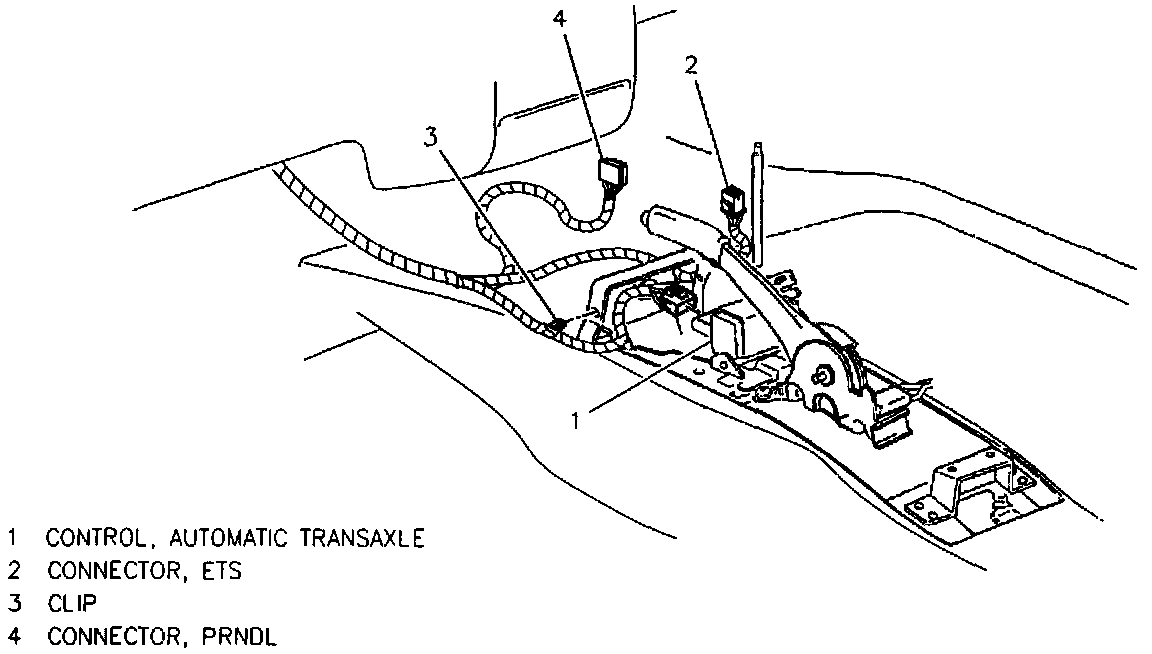

Center Console:

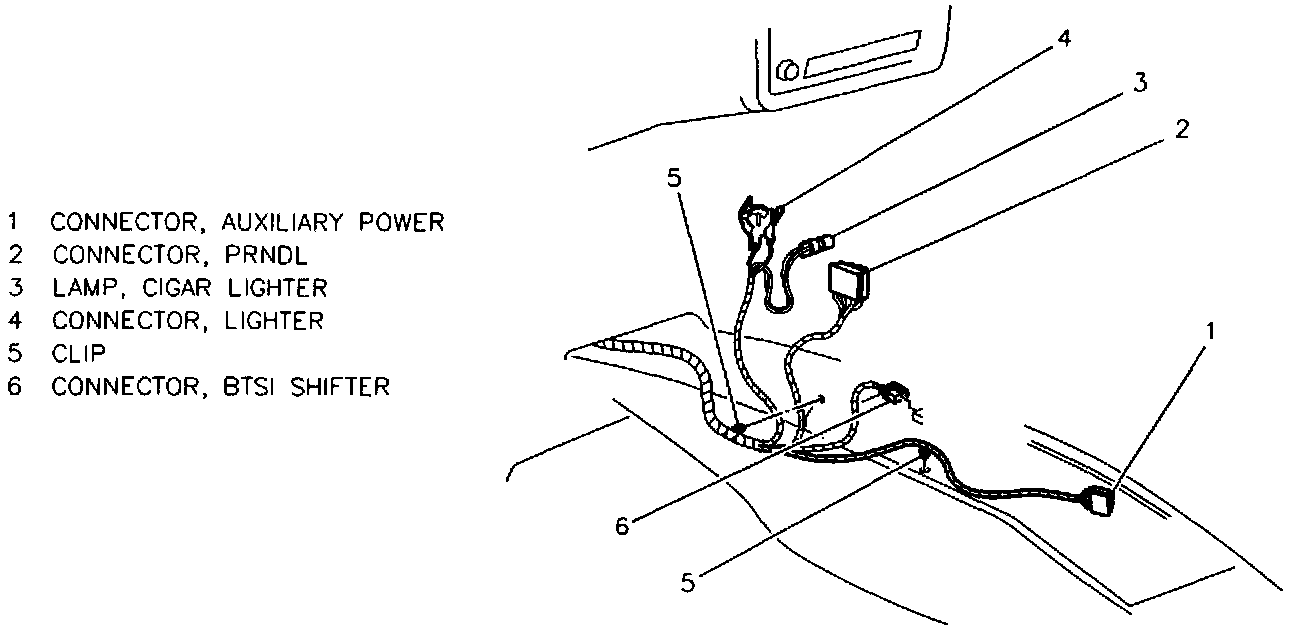

Center Console:
