Operation CHARM
: Car repair manuals for everyone.
Home
>>
Oldsmobile
>>
1998
>>
Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
C2 (Clear)
C2 (Clear)

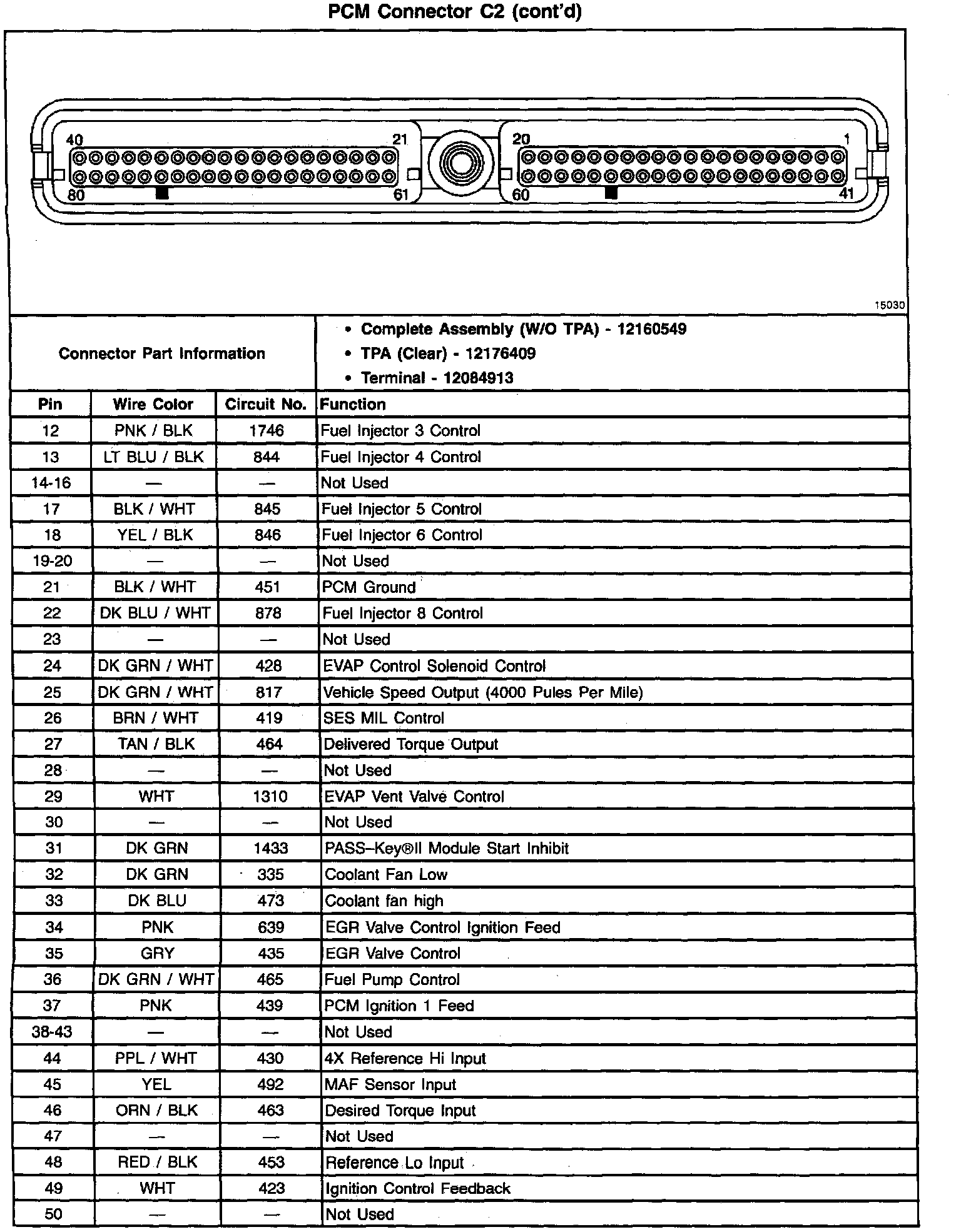

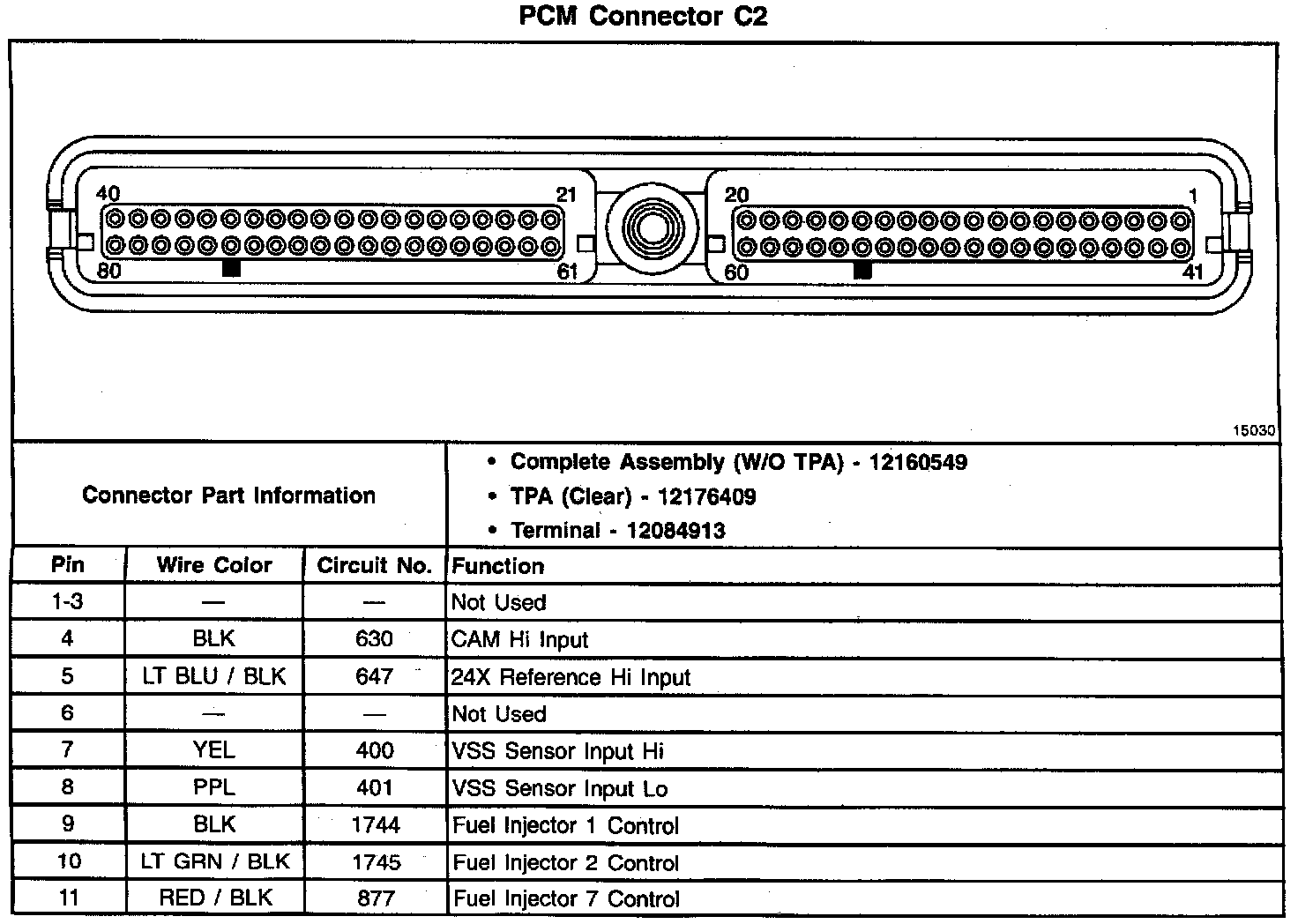

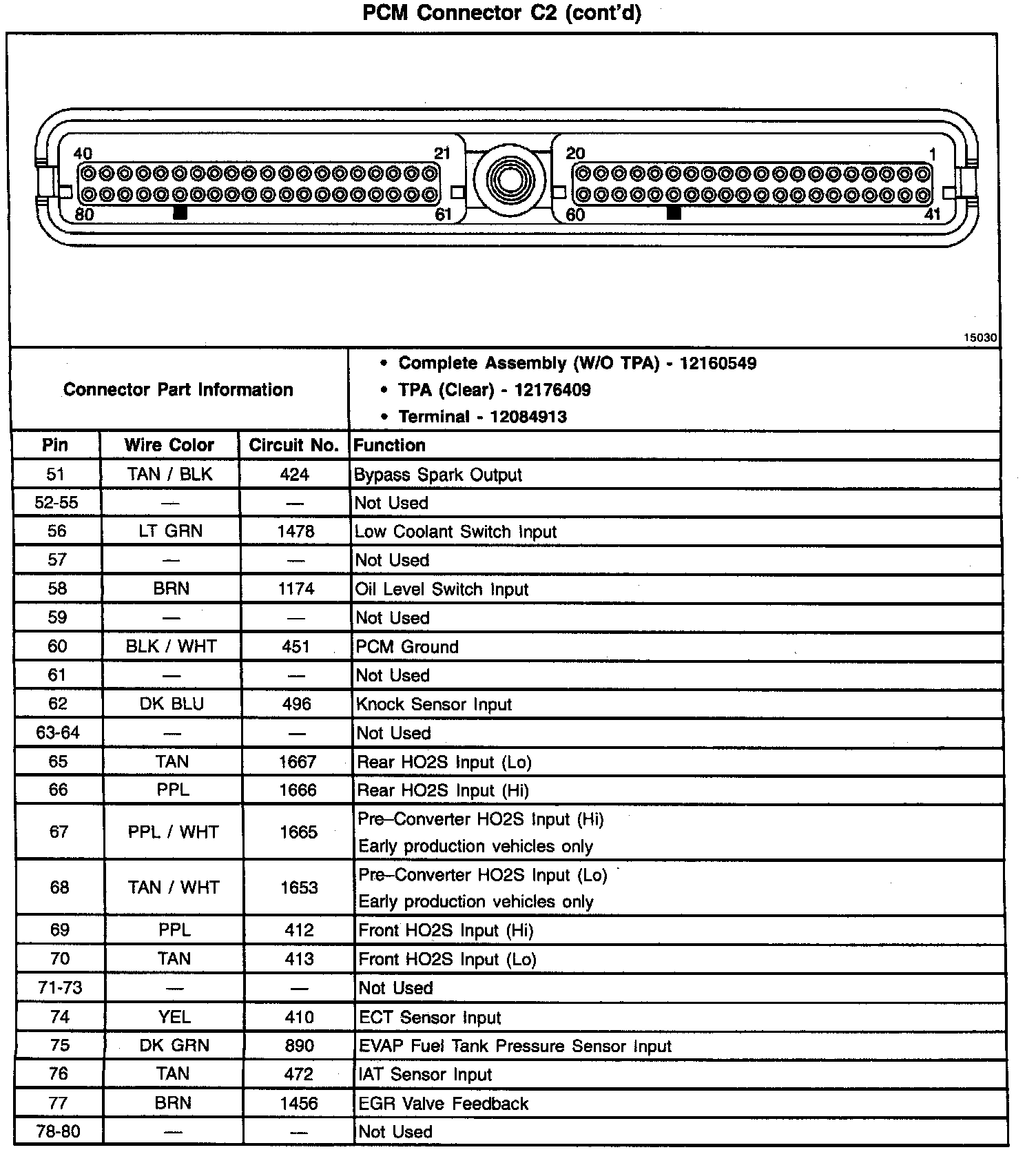

Connector View:
Connector View:
Connector View:
