Aurora V8-4.0L VIN C
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse Block
>>
Application and ID
>>
I/P Fuse Block
I/P Fuse Block

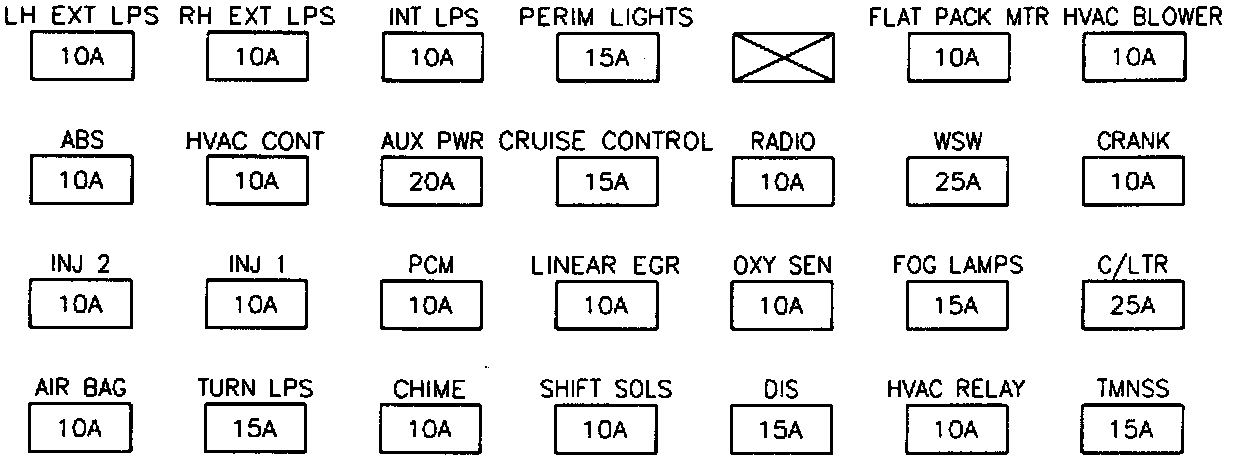

IP Fuse Block (Buick):

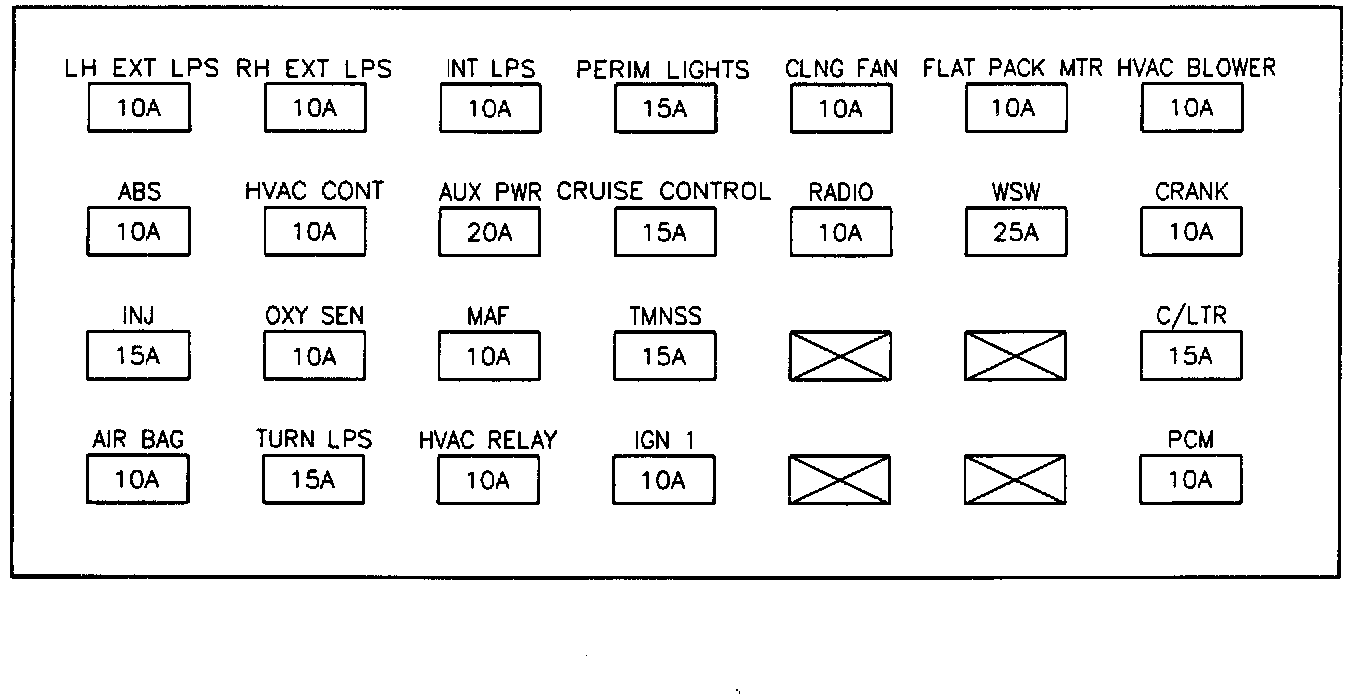

IP Fuse Block (Oldsmobile):
