Home >> Oldsmobile >> 1998 >> Aurora V8-4.0L VIN C >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> Park/Neutral Position Switch, Shift Select Switch

Park/Neutral Position Switch, Shift Select Switch

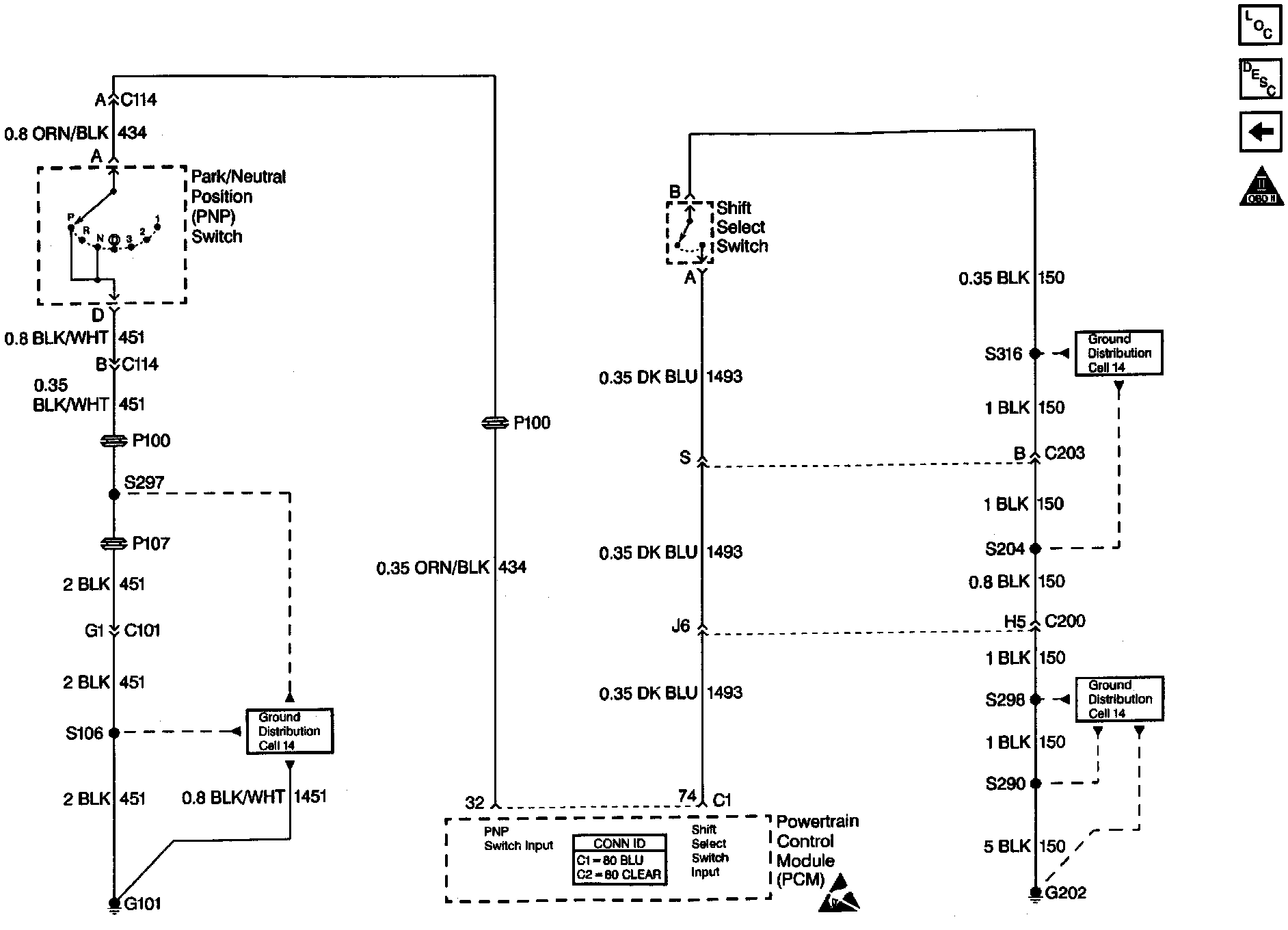

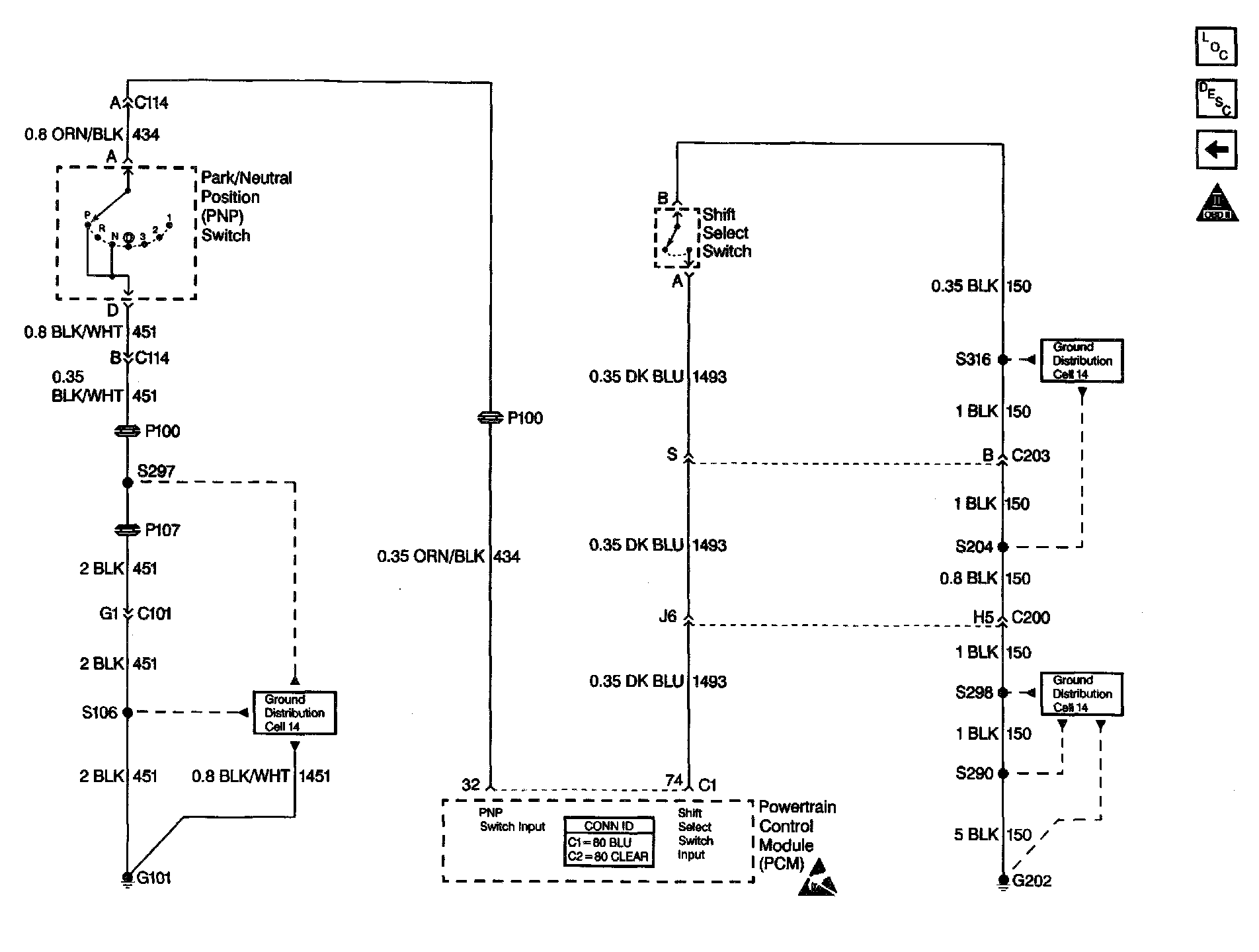

Wiring Diagram:
